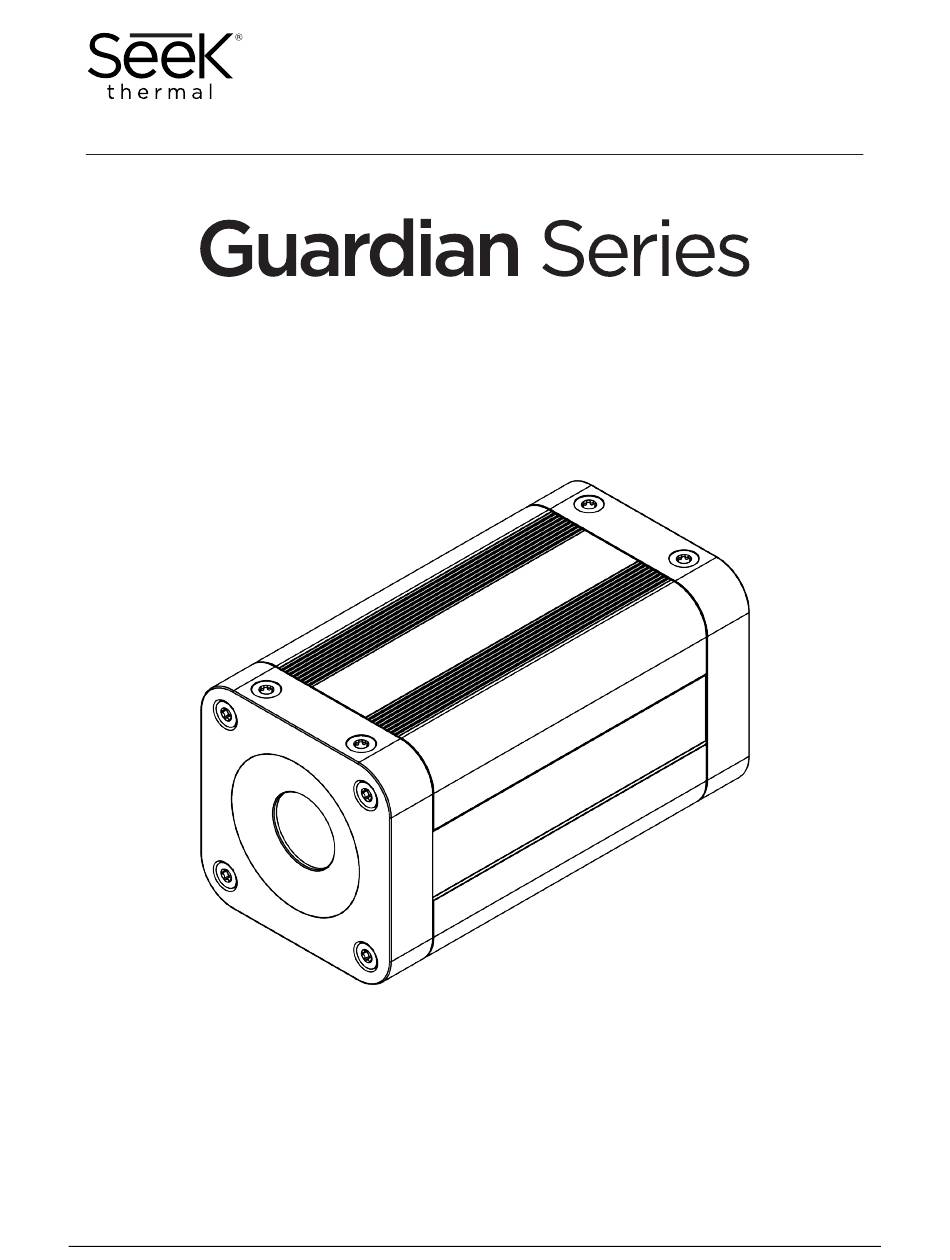

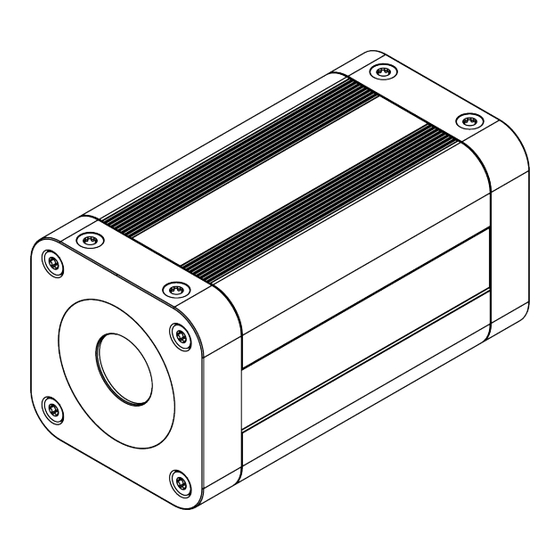

- Page 1 G300 User Manual GQ-4ACX, GQ-9ACX IMPORTANT SAFETY INFORMATION READ ENTIRE MANUAL BEFORE USE...
-
Page 2: Table Of Contents
Seek Thermal Table of Contents Table of Contents 1. General Information ....................1 Welcome ......................1 Copyrights ......................1 Disclaimer ......................1 Product Registration ..................2 Warranty ......................2 Export Control ....................2 2. Safety Information ....................3 General notes ....................3 Intended use ...................... - Page 3 Seek Thermal List of Figures and Tables Initial Set-up ....................15 8. Seek Live View Web Interface ................16 Browser Compatibility ..................16 Login page ....................... 16 Camera Page ....................17 8.3.1 Measurement Tools .................. 18 8.3.2 Advanced Settings ..................19 8.3.3...
- Page 4 Seek Thermal List of Figures and Tables Figure 5 - Example camera set-up ................14 Table 1 - FOV for G300 ....................28 Table 2 - Table of Typical Emissivity Values ..............29 UM Version 1.0 G300...
-
Page 5: General Information
US Export Regulations; see section 1.6. Seek Thermal shall not be liable for any loss or damage, including but not limited to direct, indirect, incidental, consequential, or any other damages arising from the use of or reliance on this manual or the products described within. -
Page 6: Product Registration
Should a product covered by this warranty fail, Seek Thermal will either repair or, at its discretion, replace the device when returned by the purchaser, with prepaid shipping, to Seek Thermal within the specified warranty period. Seek Thermal will undertake the repair or replacement at no cost, including return shipping, provided that Seek Thermal's examination confirms a defect in the product. -
Page 7: Safety Information
Any use other than those described in this manual is considered non-intended use. This will also invalidate the warranty. Seek Thermal is not liable for material damage or personal injury caused by incorrect handling or non- compliance with the safety instructions. -
Page 8: Explanation Of Graphical Symbols
Seek Thermal Safety Information Explanation of graphical symbols The CE and UKCA marking on the product are the manufacturer's declaration that the product complies with the essential requirements of the relevant European and UK health, safety, and environmental protection legislation. See Declaration of conformity. - Page 9 Seek Thermal Safety Information WARNING The thermal imager must only be used by authorized personnel familiar with and trained on the uses, proper operation, features, and full functionality of the thermal imager. This includes understanding thermal images and how they are interpreted.
-
Page 10: Introduction
Introduction Introduction The Seek G300 thermal imaging camera features a compact yet robust design, offering an effective thermal monitoring solution to enhance safety, productivity, and quality. Equipped with Power over Ethernet (PoE), the G300 enables convenient connectivity and power supply through a single Ethernet cable, simplifying setup and eliminating the need for separate power sources. -
Page 11: Technical Specifications
Seek Thermal Technical Specifications Technical Specifications Technical Specifications - G300 Sensor Resolution 320 x 240 Microbolometer Uncooled Vanadium Oxide Pixel Pitch 12 µm Spectral Response 7.8 - 14 µm Sensor Frame Rate > 25 Hz Object Measurement Range -20°C to 550°C (-4°F to 932°F) Object Imaging Range -20°C to 550°C (-4°F to 932°F) - Page 12 Seek Thermal Technical Specifications Environmental Encapsulation IP 67 Operating Temperature Range -10°C to 60°C (14°F to 140°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F) EN 61000-6-2:2005/AC:2005 (Immunity) EN 61000-6-4:2007/A1:2011 (Emission) FCC CFR 47 Part 15 Subpart B Class A (Emission) IEC 60068-2-6 (0.15mm amplitude 10–58Hz, 2g accel.
-
Page 13: Camera Parts
Seek Thermal Technical Specifications Camera Parts Figure 1 - Front View Figure 2 - Rear View Front View 1. Accessory mounting holes 2. Infrared Sensor Rear View 3. Reset button 4. Ethernet LED (green) 5. Ethernet PoE M12 connector, x-coded 6. -
Page 14: Camera Drawings
Seek Thermal Technical Specifications Camera Drawings 4.15 105.4 3.73 IR CAMERA 94.7 APERTURE 1.97 1.97 1/4-20 15[0.59] MAX 4X M4X0.7 6 [0.23] MAX 1.86 M12 ETHERNET 47.4 CONNECTOR 1.97 22.4 mm[in] Figure 3 - Camera Mechanical Drawings UM Version 1.0... -
Page 15: Thermography Basics
Seek Thermal Thermography Basics Thermography Basics Thermal infrared cameras provide a non-invasive, efficient, and proactive approach to surface temperature-related measurement. However, it is essential to understand the underlying principles to help appreciate the limitations. A thermal infrared camera transforms infrared radiation into a visible image by capturing the intensity of the infrared energy. -
Page 16: Field Of View
10x10 spot size may result in lower accuracy of measurements. To maintain measurement accuracy, Seek Thermal recommends a minimum of 10x10 “pixels on target,” or the number of pixels the target object covers in the image. Larger objects can be measured at higher distances, whereas smaller objects must be closer to the camera for accurate measurement. -
Page 17: Camera Set-Up Considerations
Seek Thermal Camera Set-Up Considerations Camera Set-Up Considerations Location Placement Camera placement is critical to ensure optimal performance. Ensure no obstructions or limitations exist in the camera's optical path. Any high-intensity heat sources in the field of view may cause the sensor to produce erroneous readings. -
Page 18: Installation
Seek Thermal Installation Installation Mechanical Installation The camera may be mounted via four M4 mounting holes or the 1/4-20” UNC tripod mount located on the bottom face of the camera housing. See section 4.2 Camera Drawings for details. Notice: The torque for the M4 screw must not exceed 1.28Nm (0.94ft-lb). Max thread engagement must not exceed 6mm. -
Page 19: Camera Operation And Connection
MAC address or serial number printed on the bottom of the camera. You will need to access the Seek Live View web interface to configure the camera and set up temperature regions and alarms. Follow the basic steps below: Step 1. -
Page 20: Seek Live View Web Interface
After typing in the camera’s IP address into a web browser or double-clicking on the camera in the Seek IP Utility software, the login page for the camera will appear. The default login for the camera is username and password are:... -
Page 21: Camera Page
Seek Thermal Seek Live View Web Interface Camera Page The Camera page is opened after the user has successfully logged into the camera. This is the default page after logging in to the camera. The Camera page summarizes all relevant information in one easy-to-use location. -
Page 22: Measurement Tools
Seek Thermal Seek Live View Web Interface 8.3.1 Measurement Tools A Temperature Spot and/or Area of Interest box may be used to measure temperature. Multiple Temperature Spots and Areas of Interest can be used to capture measurements. Temperature values are displayed in the Measurement & Alarm panel. -
Page 23: Advanced Settings
Seek Thermal Seek Live View Web Interface 8.3.2 Advanced Settings To edit the emissivity value for an individual Spot or AOI, click the located next to the Spot name. A popup window will appear. Enter the Advanced Settings drop-down menu by clicking on Advanced Settings. -
Page 24: Setting Temperature Alarms
Seek Thermal Seek Live View Web Interface 8.3.4 Setting Temperature alarms Each measurement value can have an alarm associated with it. Users can create temperature- based alarms tailored to their specific monitoring requirements. To set an alarm for temperature measurements (whether for Temperature Spots or Areas of Interest): 1. - Page 25 Seek Thermal Seek Live View Web Interface 8.3.4.1 Active alarms An alarm is triggered when the measured temperature meets the conditions set in section 8.3.4. The indications that an alarm is active are: 1. A red box will highlight the alarming measurement value, as shown below, and a warning sign will appear next to the temperature value: 2.
-
Page 26: Settings Page
Seek Thermal Seek Live View Web Interface Settings page Within Settings, the user can make changes to the network settings, upload new firmware, change camera name, change camera units, and set the camera time. 8.4.1 General Settings Under the General Settings, users can view or modify settings such as temperature units, upload camera firmware, view camera serial number and firmware versions. -
Page 27: User Management
Notice: Modifying network settings may alter the camera's IP address. Ensure the IP address is noted before applying to avoid potential connectivity issues. If unreachable, use the Seek IP Utility tool or reset the camera to default DHCP mode, see section 9.1. -
Page 28: Library Page
Seek Thermal Seek Live View Web Interface Notice: The G300 uses REST APIs, which any user can access directly. To learn more about the REST APIs and Swagger tool built into the camera itself, download the G300 Network Integrator Quick Start Guide from the support website: https://support.thermal.com... -
Page 29: Reset Button And Led Functionality
Seek Thermal Reset Button and LED Functionality Reset Button and LED Functionality Reset Button Reset button is accessed on the rear of the housing, see Figure 2 - Rear View. Reset button hold time LED Response Action < 1 second... -
Page 30: 10. Maintenance, Troubleshooting & Support
Maintenance, Troubleshooting & Support 10. Maintenance, Troubleshooting & Support 10.1 Care and Maintenance The Seek G300 thermal imager requires little maintenance. For best care, please follow the guidelines below: • When not in use, the thermal imager should be stored at an average room temperature of 23˚C (73˚F) and kept clear from potential physical damage. -
Page 31: 10.2 Troubleshooting
The Quality Management System under which this product was developed and manufactured has been in compliance to the ISO 9001 Standard. Seek Thermal Incorporated reserves the right to make changes and improvements on any of the products without prior notice. -
Page 32: Appendix A: Field Of View - G300
Seek Thermal Appendix A: Field of View – G300 Appendix A: Field of View – G300 Lens Distance HFOV VFOV Spot side length (3x3) Spot side length (10x10) 0.50 1.60 0.53 1.70 0.38 1.23 4.58 0.18 15.27 0.59 1.00 3.30 1.06... -
Page 33: Appendix B: Table Of Emissivity Values
Seek Thermal Appendix B: Table of Emissivity Values Appendix B: Table of Emissivity Values Material Emissivity Value Aluminum 0.05 - 0.2 Brass 0.3 - 0.35 Concrete 0.92 - 0.96 Dry Soil 0.85 – 0.95 Paper 0.9 - 0.96 Plastics (varies) 0.8 - 0.95...
