Reveal
At a Glance:
- 36º Field Of View
- 400ft detection distance
- 206x156 professional sensor
- 330 Lumen flashlight
Great For:
Accurately and safely inspecting any job site.
To fully reset back to factory settings,
choose Device then Restore.
Find Quality Products Online at:

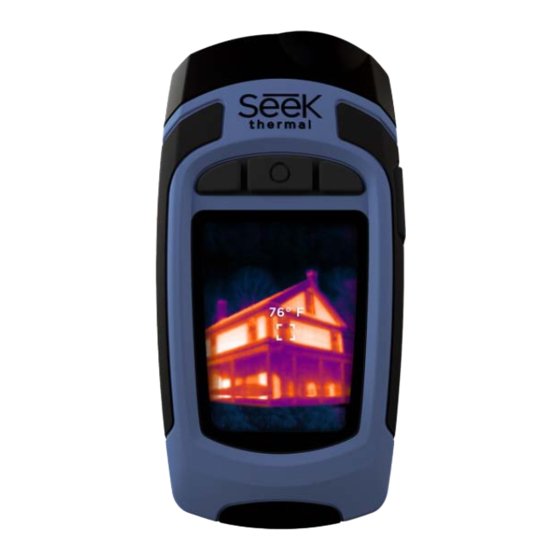

Reveal Series User Manual
Welcome to the Reveal Series. Let's take a few minutes to quickly
walk through the basics and learn how to use your device.
Available with
9Hz frame rate
or ≥15Hz (FF).
Menu
View captured images.
Set date, time, language,
and auto power off settings.
Control high and low
flashlight intensity.
Access device serial# and
firmware version.
Power off your device.
Exit the menu.
View time, date and battery
Status.
Change reticle and
temperature units
by navigating to
Device à General
GlobalTestSupply
www.
Reveal XR
Available with
9Hz frame rate
or ≥15Hz (FF).
At a Glance:
- 20º Field Of View
- 900ft detection distance
- 206x156 professional sensor
- 300 Lumen flashlight
Great For:
Hunters, safety and security professionals.
Reveal and
RevealXR Fast
Frame devices
operate at 15Hz for
smooth scanning on
the go.
Change the current
display palette.
Use the reticle to
measure a specific
temperature.
Temperature
display
Charge battery and
access integrated
microSD
.com
Available Colors:
-Pure Black
-TrueTimber©
Kanati Camouflage
Fast Frame (FF)
Capture an image to be
stored in the gallery
Power On/Off
