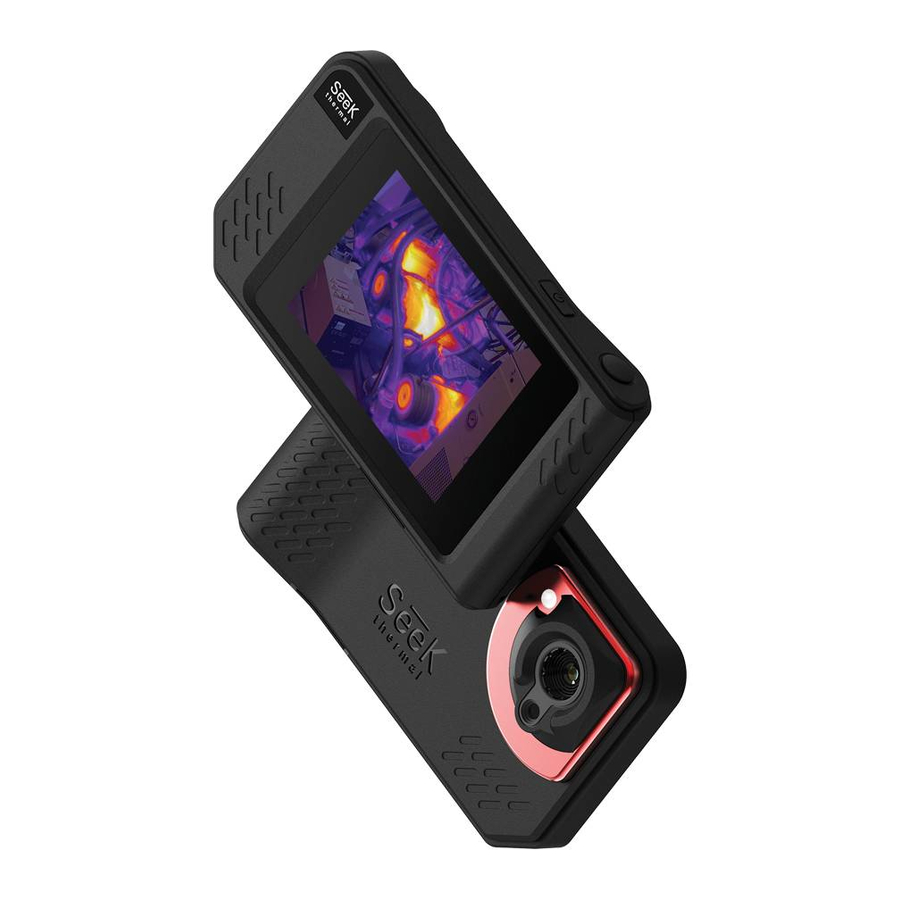

SEEK SHOT PRO - Thermal Camera Quick Start Guide

THE BASICS

GETTING STARTED

This Quick Start Guide will show you the basics of capturing professional thermal images with Seek.

1. Remove camera and contents from box.
2. Charge the battery using the included USB cable.
3. Power on device using the Power button located at the top of the camera. Press and hold 2-3 seconds.


CAPTURING PHOTOS AND VIDEO

Use your camera's Capture button to capture a photo or video.

TAKE A PHOTO
Use a short press and release of the Capture button to capture a photo and save the image to your camera's gallery.

RECORD A VIDEO
Use a long press of the Capture button to begin a video recording; release the Capture button while capturing your video. To end the recording, press and release the Capture button again. Your video will be automatically saved to the camera's gallery.

ADJUSTING CAMERA SETTINGS

First tap the active display, then tap the Quick Settings bar across the top of the screen to access the following options:

	BRIGHTNESS Manually adjust your screen's brightness.
	WIFI Adjust your camera's WiFi settings.
	FLASH Quickly turn on your camera's flash to add light when taking your photo.
	FLASHLIGHT Quickly turn on your camera's flashlight.
	HELP Access Seek SHOT user guides.
	ADVANCED SETTINGS See the Advanced Settings section for a complete list of configurable features.

UNITS
Quickly set your preferred measurement of temperature.

EMISSIVITY
Emissivity is a material property that defines how much infrared light is reflected from a particular surface. You can manually adjust for emissivity to ensure accurate temperature reporting in your images.

VIEW MODES

Easily switch between your camera's three view modes by tapping the following icons:

	VISIBLE IMAGING Tap icon to access the standard digital camera view.
	THERMAL VIEW Tap icon to access the thermal imaging view.
	SEEKFUSION™ VIEW Tap icon to access a real-time composite of the Visible and Thermal modes.

To manually adjust the ratio of visible to thermal views, tap and drag the left slider to the desired transparency.
To manually align the images when they are within two meters of your camera, tap and drag the right slider to the desired position.

CAMERA TOOLS

	CENTER TEMPERATURE Use the cross-hair to display the temperature at the center of your active scene.
	SPOT TEMPERATURE Create up to three repositionable temperature cross-hairs on the active scene. Tap repeatedly to add up to three markers.
	REGION TEMPERATURE Create up to three resizable and repositionable Regions of Interest (ROI) on the active scene. Tap repeatedly to add up to three boxes.
	HIGH/LOW Quickly display both the high and low temperatures of the active image.

SWITCH IMAGE PROCESSING

Easily toggle between the following modes for optimized imaging:

HIGH DYNAMIC RANGE (HDR)
Use this mode when viewing scenes with extreme temperature difference.

PRECISION IMAGING MODE
Use this mode to view and colorize an exact temperature range in your active scene. This mode is indicated by lock icons next to the max and min values on the range bar.

SWITCH BETWEEN HIGH DYNAMIC RANGE AND PRECISION MODES

Tap the middle region of the range bar to switch between the two imaging modes.

TEMPERATURE BAR

While in Precision mode, you can quickly set, lock, and save a custom temperature range. Once set, the camera screen will colorize only the temperatures within the specified range; temperatures outside of the specified range will be represented by a solid color. By default, the Temperature Bar is enabled and displayed on your camera screen. The range of the Temperature Bar will automatically adjust based on the active scene in both High Dynamic Range and Precision imaging modes.

LOCK TEMPERATURE VALUES (Precision mode only)
In the Temperature Bar, tap one of the following options:

SET TEMPERATURE VALUES (Precision mode only)

COLOR PALETTES

Quickly apply a variety of color schemes to your image.

1. Tap Color Icon
2. Tap the desired color palette to apply a new color scheme to your active scene.

IMAGE GALLERY

The Image gallery contains all of your camera's photos. From the gallery, you can view, edit, or delete existing images.

ACCESS THE IMAGE GALLERY
Tap the image thumbnail on your camera's screen (lower left) to access the image gallery.

VIEW A PHOTO'S INFORMATION

EDIT A PHOTO

DELETE A PHOTO

1. Tap the arrows to navigate to the desired photo.
2. Tap Delete
3. Confirm your decision to delete the photo.

HELP AND RESOURCES

CUSTOMER SUPPORT
Need help? Find frequently asked questions and contact customer support at support.thermal.com
