Patents pending on Seek Scan System and Fixed Heat Source
SEEK SCAN DOES NOT DIAGNOSE COVID-19 OR OTHER DISEASE, ILLNESS OR DISORDERS.
THE SYSTEM MEASURES SKIN TEMPERATURE AS A PROXY FOR BODY TEMPERATURE.

TABLE OF CONTENTS

What's In The Box.............................................................................................................................
System Setup......................................................................................................................................
Software Overview............................................................................................................................
Email Settings & About Menu.......................................................................................................
Data Options.......................................................................................................................................
Tips For Optimal Performance.....................................................................................................
Skin vs. Body Temperature ...........................................................................................................
Regulatory and Compliance..........................................................................................................

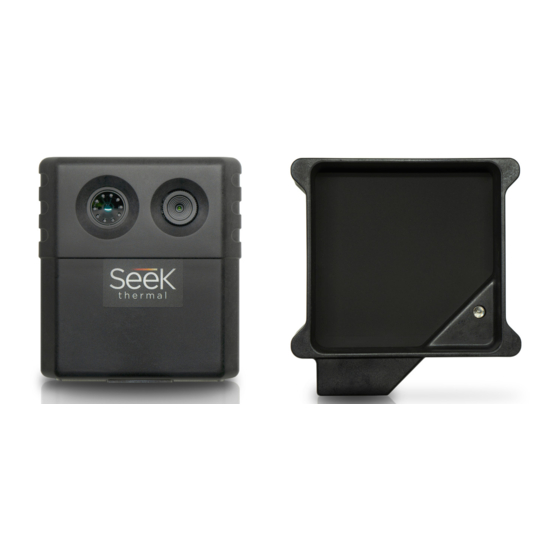

USER MANUAL
THERMAL
VISIBLE
CAMERA
CAMERA
8 cm
HEAT SOURCE
CAMERA
FIXED HEAT SOURCE
Temperature-Controlled
Reference Device
9 cm
2
3
4
5
6
7
8
9
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scan and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEEK Scan

Summary of Contents for SEEK Scan

  • Page 1: Table Of Contents

    8 cm 9 cm Patents pending on Seek Scan System and Fixed Heat Source SEEK SCAN DOES NOT DIAGNOSE COVID-19 OR OTHER DISEASE, ILLNESS OR DISORDERS. THE SYSTEM MEASURES SKIN TEMPERATURE AS A PROXY FOR BODY TEMPERATURE. TABLE OF CONTENTS What’s In The Box..........................

  • Page 2: What's In The Box

    WHAT’S IN THE BOX Quick Start Guide Warranty Camera Fixed Heat Source Removable for international power plugs Camera USB Stick with Fixed Heat Source USB-A Cable Seek Scan Software Power Cable...

  • Page 3: System Setup

    SYSTEM SETUP Connect USB stick to PC or tablet and follow Place two pieces of tape 5 feet (1.5 m) apart. instructions to install Seek Scan software. Position is critical to system performance. Set tripod heights to 5 feet (1.5 m).

  • Page 4: Software Overview

    SOFTWARE OVERVIEW The heat source is not detected in the scene The heat source has shifted in temperature and measurements will not be taken. and measurements will not be taken. Set a custom alarm by clicking up & down Blue box means the camera has detected a arrows.

  • Page 5: General Settings & Station Settings

    4. Enabling this feature sends anonymous system data to Seek Thermal to help improve Seek Scan software. 5. Export the last 24 hours of scan data and images (if ‘Save Images’ was enabled). The camera serial number and station name fields will be grayed out until the thermal video (black &...

  • Page 6: Email Settings & About Menu

    Select the Send Email Alerts check box to send email alert messages for scan measurements that are over the Seek Scan Alarm Threshold (red line in Seek Scan historical scans graph). 2. Press this button to send a test email.

  • Page 7: Data Options

    DATA OPTIONS JPG IMAGES Seek Scan lets you to save images to its encrypted database running on the Windows PC C-Drive. From the Station Settings menu, you can export a .zip file containing two folders, ‘PASS’ & ‘FAIL,’ of scan image data from the last 24 hours.

  • Page 8: Tips For Optimal Performance

    Seek Scan has been qualified to work at 5 feet (1.5 meters) to accommodate people of different heights. Seek Scan can work as close as 4 feet (1.2 meters) as well. In such a setup, Seek Scan algorithms will work more efficiently but not cover has many different height variations.

  • Page 9: Skin Vs. Body Temperature

    Seek Scan measures skin temperature and then adds an offset to provide an estimated body temperature. 2. Seek Scan is programed to measure the most reliable parts of the face to produce the best results with high accuracy.

  • Page 10: Regulatory And Compliance

    510(k) clearance during the health emergency, provided the thermal imaging system meets the standards set forth in the guidance. Seek Scan meets all of these applicable standards. Seek Scan should not be solely or primarily relied upon to diagnose or exclude a diagnosis of COVID-19, or any other disease. While this device can be used by anyone...
