Power off the agent device, move it
to another place, and then power ON.
Then observe the agent's LED color.
(Agent's LED color shows RSSI
indication between a controller and
agent.
The Blue color means RSSI is good,
Green color means RSSI is normal,
Orange color means RSSI is poor,
Red color means disconnected.
6.1.1

Mesh Topologies

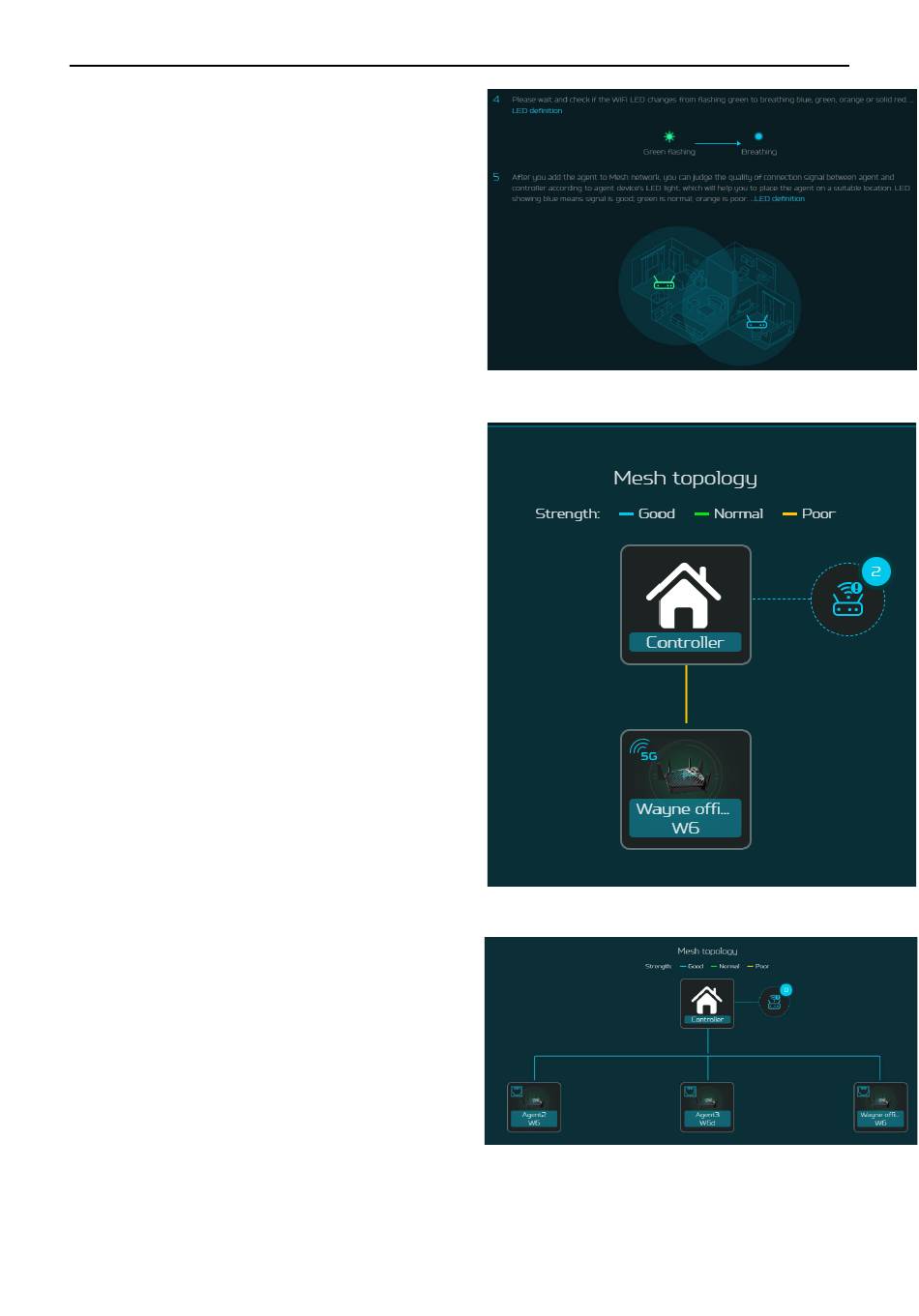

Following are the mesh topologies:
• Topology – One agent
• Start topology – 3 agents
• Daisy chain topology – 2 agents
• Daisy chain topology – 3 agents
• Tree topology – 3 agents
Topology – One Agent
In one agent topology, a controller is
connected with one agent, and the medium
between a controller and the agent can be
wireless or wired connectivity.
Yellow color line indicates the poor signal
strength between a controller and the
agent, so it is recommended to place an
agent close to the controller.
Star topology – 3 agents
In start topology of 3 agents, a
controller is simultaneously connected
with three agents, and the medium
between a controller and the agents
can be wireless or wired connectivity.
14 14
