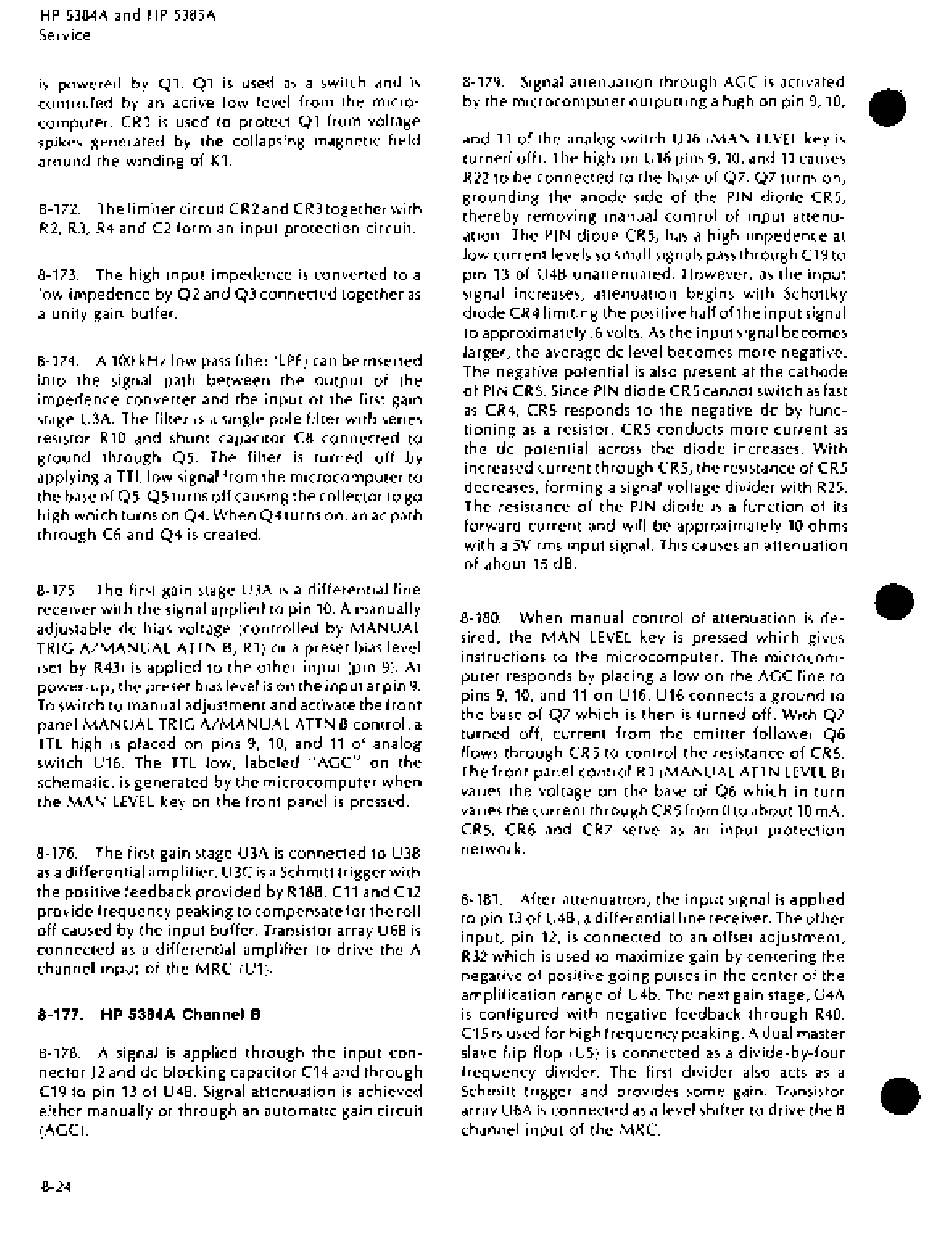

is powered by Q1. Q1 is used as a switch and is
controlled by an active low level from the micro-
computer. CR1 is used to protect Q1 from voltage
spikes generated by the collapsing magnetic field
around the winding of K1.
8-172. _ The limiter circuit CR2 and CR3 together with
R2, R3, R4 and C2 form an input protection circuit.
8-173. The high input impedence is converted to a
low impede nee by Q2 and Q3 connected together as
a unity gain buffer.
8-174. A 100kHz low pass filter (lPF) can be inserted
into the signal path between the output of the
impedence converter and the input of the first gain
stage U3A. The filter is a single pole filter with series
resistor R10 and shunt capacitor C8 connected to
ground through QS. The filter is turned off by
applying a TTL low signal from the microcomputer to
the base of QS. QS turns off causing the collector to go
high which turns on Q4. When Q4turns on, an ac path
through C6 and Q4 is created.
8-175. The first gain stage U3A is a differential line
receiver with the signal applied to pin 10. A manually
adjustable de bias voltage (controlled by MANUAl
TRIG A/MANUAl ATTN B, R1) or a preset bias level
(set by R43) is applied to the other input (pin 9). At
power-up, the preset bias level is on the input at pin 9.
To switch to manual adjustment and activate the front
panel MANUAl TRIG A/MANUAl ATTN B control, a
TTl high is placed on pins 9, 10, and 11 of analog
switch U16. The TTl low, labeled "AGC" on the
schematic, is generated by the microcomputer when
the MAN lEVEl key on the front panel is pressed.
8-176. The first gain stage U3A is connected to U3B
as a differential amplifier. U3C is a Schmitt trigger with
the positive feedback provided by R18B. C11 and C12
provide frequency peaking to compensate for the roll
off caused by the input buffer. Transistor array U6B is
connected as a differential amplifier to drive the A
channel input of the MRC (U1).
8-177. HP 5384A Channel B
8-178. A signal is applied through the input con-
nector J2 and de blocking capacitor C14 and through
C19 to pin 13 of U4B. Signal attenuation is achieved
either manually or through an automatic gain circuit
(AGC).
8-24
8-179. Signal attenuation through AGC is activated
by the microcomputer outputting a high on pin 9, 10,
and 11 of the analog switch U16 (MAN lEVEl key is
turned off). The high on U16 pins 9, 10, and 11 causes
R22 to be connected to the base of Q7. Q7 turns on,
grounding the anode side of the PIN diode CRS,
thereby removing manual control of input attenu-
ation. The PIN diode CRS, has a high impedence at
low current levels so small signals pass through C19 to
pin 13 of U4B unattenuated. However, as the input
signal increases, attenuation begins with Schottky
diode CR41imiting the positive half of the input signal
to approximately .6 volts. As the input signal becomes
larger, the average de level becomes more negative.
The negative potential is also present at the cathode
of PIN CRS. Since PIN diode CRS cannot switch as fast
as CR4, CRS responds to the negative de by func-
tioning as a resistor. CRS conducts more current as
the de potential across the diode increases. With
increased current through CRS, the resistance of CRS
decreases, forming a signal voltage divider with R25.
The resistance of the PIN diode is a function of its
forward current and will be approximately 10 ohms
with a
5V
rms input signal. This causes an attenuation
of about 15 dB.
8-180. When manual control of attenuation is de-
sired, the MAN lEVEl key is pressed which gives
instructions to the microcomputer. The microcom-
puter responds by placing a low on the AGC line to
pins 9, 10, and 11 on Lh6. U16 connects a ground to
the base of Q7 which is then is turned off. With Q7
turned off, current from the emitter follower Q6
flows through CRS to control the resistance of CRS.
The front panel control R1 (MANUAl ATTN lEVEl B)
varies the voltage on the base of Q6 which in turn
varies the current through CRS from 0 to about 10 mA.
CRS, CR6 and CR7 serve as an input protection
network.
8-181. After attenuation, the input signal is applied
to pin 13 of U4B, a differential line receiver. The other
input, pin 12, is connected to an offset adjustment,
R32 which is used to maximize gain by centering the
negative of positive going pulses in the center of the
amplification range of U4b. The next gain stage, U4A
is configured with negative feedback through R40.
C15 is used for high frequency peaking. A dual master
slave flip flop (US) is connected as a divide-by-four
frequency divider. The first divider also acts as a
Schmitt trigger and provides some gain. Transistor
array U6A is connected as a level shifter to drive the B
channel input of the MRC.
•
•
•
