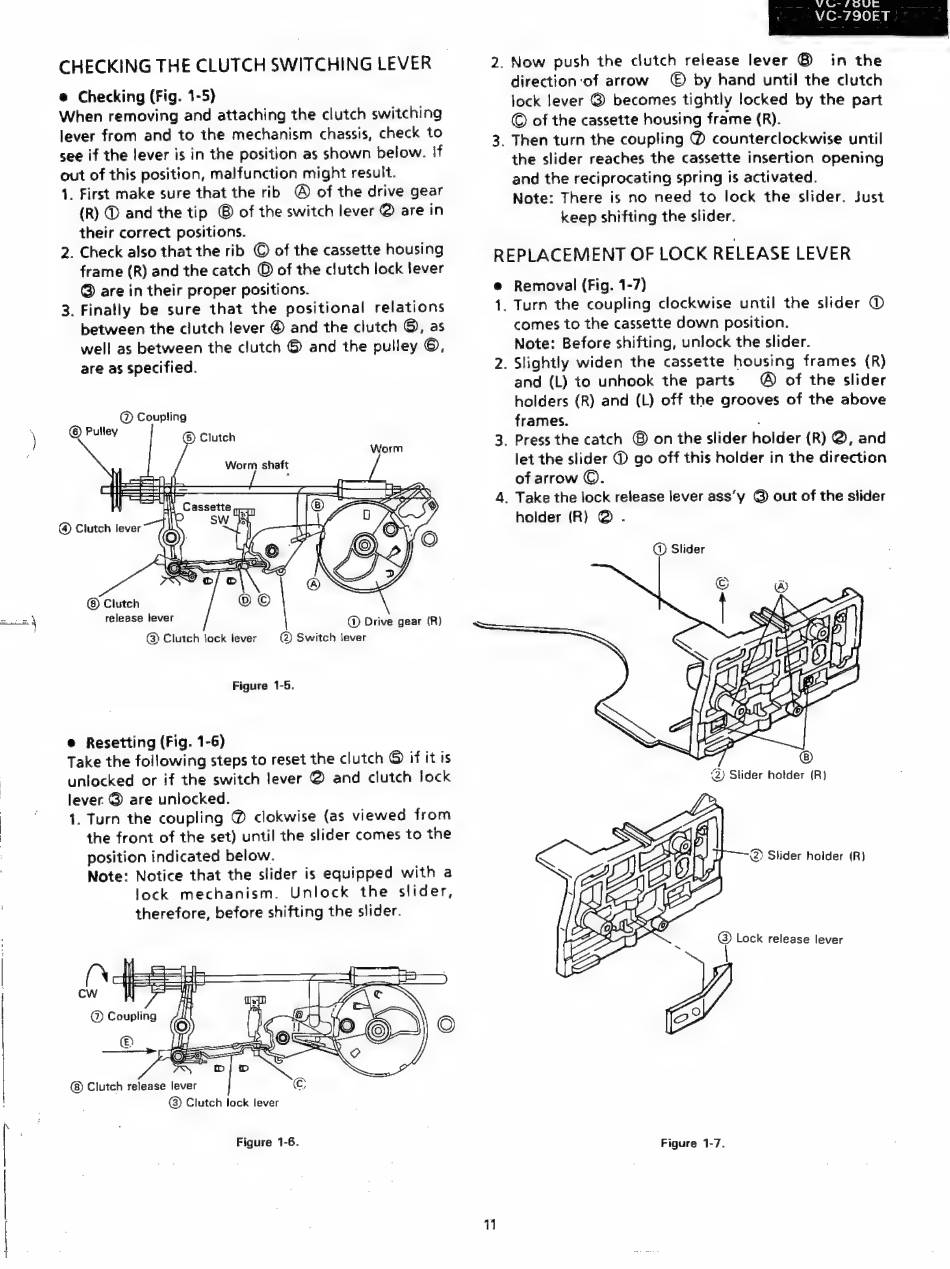

@ Checking (Fig. 1-5)
@ Coupling
©) Clutch
Pulley
Clutch
release lever
() Drive gear (R)
@) Clutch lock lever (2 Switch lever
Figure 1-5.
@ Resetting (Fig. 1-6)
lever @ are unlocked.
Clutch release lever
@) Clutch lock lever
Figure 1-6.
VA- # GU
-VC-790ET
2. Now push the clutch release lever ® in the
direction 'of arrow © by hand until the clutch
lock lever @ becomes tightly locked by the part
© of the cassette housing frame (R).
3. Then turn the coupling @ counterclockwise until
the slider reaches the cassette insertion opening
and the reciprocating spring is activated.
Note: There is no need to lock the slider. Just
keep shifting the slider.
REPLACEMENT OF LOCK RELEASE LEVER
@ Removal (Fig. 1-7)
1. Turn the coupling clockwise until the slider @
comes to the cassette down position.
Note: Before shifting, unlock the slider.
2. Slightly widen the cassette housing frames (R)
and (L) to unhook the parts ©® of the slider
holders (R) and (L) off the grooves of the above
frames.
3. Press the catch ® on the slider holder (R) @, and
let the slider © go off this holder in the direction
of arrow ©.
4. Take the lock release lever ass'y @) out of the slider
holder (R} @ .
@) Slider
Figure 1-7.
