TECHNICAL DATA
MODEL
SKU
OUTPUT
STATIC POWER
CONSUMPTION
OUTPUT CURRENT
OUTPUT POWER
RATED LOAD
SUPPLY VOLTAGE
REMOTE DISTANCE
OPERATION VOLTAGE
IP RATING
DIMENSION
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. This product is
warranted for manufacturing defects only.
This marking indicates that this product
should not be disposed of with other
household wastes.
WARNING
1.
Please make sure to turn off the power before starting the
installation.
2. Installation must be performed by a qualified electrician.
3. For Indoor Use only
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

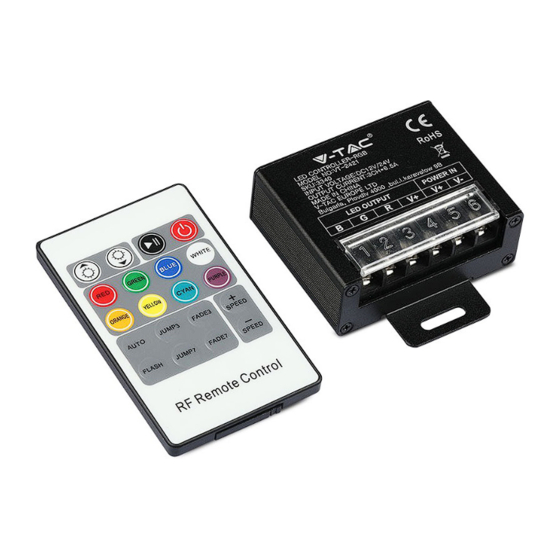

LED SYNC CONTROLLER RGB
VT-2421
3340
3 Channel
<1 W
<6.6A (Each Channel)
12V:240W, 24V:480W
12V:<240W, 24V:480W
DC: 12V-24V Optional
≤0m
-20°C to +60°C
IP20
64x81x24 mm
Caution, risk of electric shock.
Advertisement
Table of Contents
Related Manuals for V-TAC VT-2421
Summary of Contents for V-TAC VT-2421
- Page 1 64x81x24 mm INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
- Page 2 PRODUCT DESCRIPTION Controller adopts the advanced micro control unit, it is used for controlling a variety of LED light. For instance, point source of light, flexible light strip, wall washer lamp and so on. It has many advan- tages such as good appearance, easy connection and simplicity to use. Adopts RF 20 key remote control to ON/OFF, choose colors, change dynamic modes.
- Page 3 CLEAR CODE OPERATION Back to factory default, wall-panel can be controlled by any one the same remote control. 1. Step 1: Pressing key “JUMP7” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding. 2.
