222 HARTREY AVE
E Y l N S T D N
11
60104 il S A
AREACODE
31118667200.
L A t l L t b H J R t M I C W O
TWX: 910-231-0048
TELEX:
72-4381

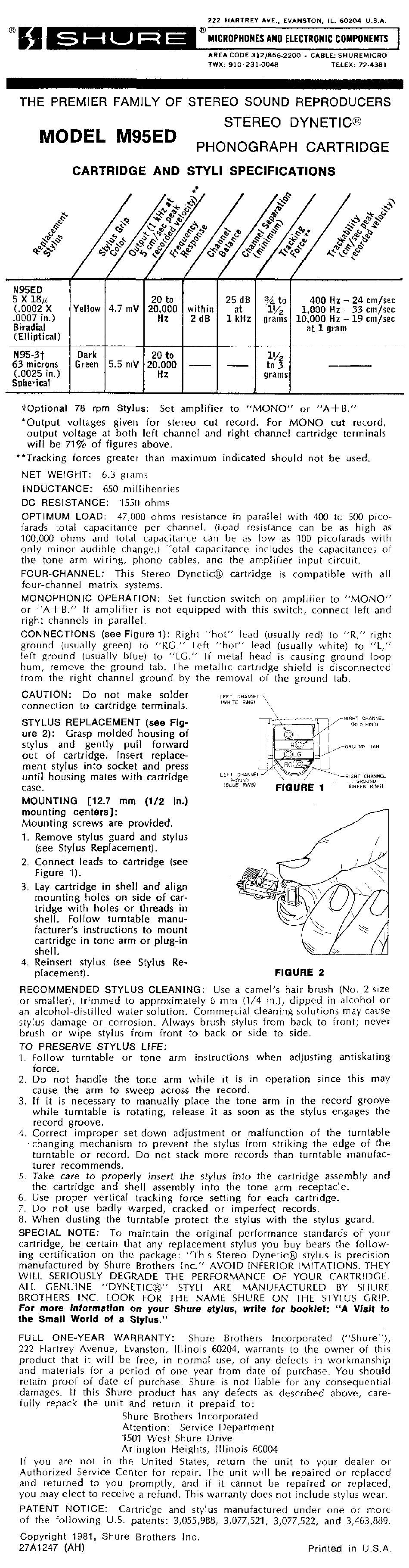

THE PREMIER FAMILY OF STEREO SOUND REPRODUCERS

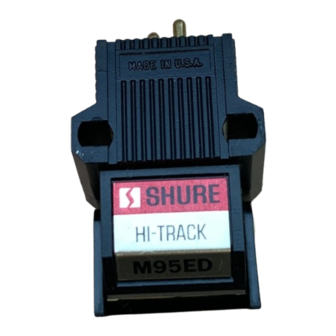

STEREO DYNETIC@
M95ED
PHONOGRAPH CARTRIDGE
CARTRIDGE AND STYLI SPECIFICATIONS
2.
Connect leads t o cartridge (see
Figure 1).
3. Lay cartridge i n shell and align
mounting holes o n side of car-
tridge w i t h holes o r threads i n
shell. Follow turntable manu-
facturer's instructions to mount
N95ED
5 X l 8 y
(.0002 X
.0007 in.)
Biradial
(Elliptical)
N95-3f
63 microns
(.0025 in.)
Spherical
cartridge i n tone arm o r plug-in
shell.
4. Reinsert stylus (see Stylus Re-
placement).
FIGURE 2
RECOMMENDED STYLUS CLEANING: Use a camel's hair brush (No. 2 srze
or smaller), trimmed to approximately 6 mni (1/4 in.), dipped in alcohol or
an alcohol-distilled water solution. Commercial cleaning solutions may cause
stylus damage o r corrosion. Always brush stylus from back to front; never
brush o r wipe stylus from front to back or side t o side.
TO PRESERVE STYLUS LIFE:
1. Follow turntable o r tone arm instructions when adjusting antiskating
force.
2.
D o not handle the tone arm while i t is i n operation since this may
cause the arm t o sweep across the record.
3. I f i t is necessary to manually place the tone arm i n the record groove
while turntable is rotating, release i t as soon as the stylus engages the
record groove.
4. Correct improper set-down adjustment o r malfunction of the turntable
changrng mechanism to prevent the stylus irom strrklng the edge of the
turntable o r record. D o not stack more records than turntable manuiac-
turer recommends.
5. Take care to properly insert the stylus into the cartridge assembly and
the cartridge and shell assembly into the tone arm receptacle.
6. Use proper vertical tracking force setting for each cartridge.
7 .
D o not use badly warped, cracked or imperfect records.
8. When dusting the turntable protect the stylus with the stylus guard.
SPECIAL NOTE:
To maintain the o r i g ~ n a l performance standards of your
cartridge, be certain that any replacement stylus you buy bears the follow-
ing certification on the package: "This Stereo D y n e t i c 8 stylus is
precision
manufactured by Shure Brothers Inc." AVOID INFERIOR IMITATIONS. THEY
WILL SERIOUSLY,,DECRADE THE PERFORMANCE OF YOUR CARTRIDGE.
ALL
GENUINE
DYNETIC@"
STYLI ARE MANUFACTURED
BY SHURE
BROTHERS INC. LOOK FOR THE NAME SHURE O N THE STYLUS GRIP.
For more information o n your Shure stylus, write for booklet: " A Visit to
the Small World of a Stylus."
FULL ONE-YEAR WARRANTY:
Shure Brothers
lncorporated ("Shure"),
222 Hartrey Avenue, Evanston, Illinois 60204, warrants to the owner of thrs
product that rt w i l l be free, in normal use, of any defects in workmanship
and materrals l o r a period of one year from date of purchase. You should
retain proof of date o f purchdse. Shure
18
not liable for any consequentral
damages. I t this Shure product has any defects as described above, care-
fully repack the unit and return i t prepaid to:
Shure Brothers lncorporated
Attention:
Service Department
1501 West Shure Drive
Arlington Heights, Illinois 60004
If you are not in the United States, return the unit to your dealer
o r
Authorized Service Center for repair. The unit w i l l be repaired o r replaced
and returned l o you promptly, and if i t cannot be repaired or replaced,
you may elect to receive a refund. Thrs warranty does not include stylus wear.
PATENT NOTICE:
Cartridge
and stylus manufactured under one or more
of the following U.S. patents: 3,055,988, 3,077,521, 3,077,522, and 3,463,889.
Copyright 1981, Shure Brothers Inc.
27A1247 (AH)
Printed i n U.S.A.
t o p t i o n a l 78 rpm Stylus:
Set amplifier to "MONO"
o r "A+B."
'Output
voltages given for stereo cut record. For M O N O cut record,
output voltage at both left channel and right channel cartridge terminals
w i l l be 71% of figures above.
"Tracking
forces greatel than maximum ind~cated should not be used.
NET WEIGHT:
6.3 grams
INDUCTANCE:
650 mlllihenrres
DC RESISTANCE:
1550 ohm?
OPTIMUM LOAD:
47,000 ohms resrstance in parallel wlth 400 to 500 prco-
farads total capacitance per channel. (Load resistance can be as high ar
100,000 ohms and total capacltance can be as l o w as 100 prcofarads wrth
only mrnor audlble change.) Total capacrtance ~ncludes the capacitances of
the tone arm wrrlng, phono cables, and the ampllfler input circurt.
FOUR-CHANNEL:
This Stereo Dynetic@ cartridge is compatible with all
four-channel matrix systems.
MONOPHONIC OPERATION: Set i u n c t ~ o n swltch on ampl~frer to "MONO"
or "A+B."
If amplrfier is not equlpped with this swttch, connect left and
right channels In parallel.
CONNECTIONS (see Figure
1):
Right "hot"
lead (usually red) to "R,"
rrght
ground (usually green) to "KG."
Left "hot"
lead (usually whrte) to "L,"
left ground (usually blue) to "LC."
I f metal head is causing ground loop
hum, remove the ground tab. The metalllc cartr~dge shleld is
disconnected
from the right channel ground by the removal of the ground tab.
CAUTION:
D o not make solder
i ; J T ; ; ;
; F ,
connection to cartridge terminals.
STYLUS REPLACEMENT (see
Fig-
ure 2):
Grasp molded housing of
stylus
and gently
pull
forward
out of cartridge.
Insert replace-
ment stylus into socket and press
until housing mates w i t h cartridge
S ~ O ~ ~ O
C""""i
( B L Y L
anel
case.
FlQURE 1
GREEN
RING1
MOUNTING 112.7
m m
(112 in.)
mounting centers]:
Mounting screws are provided.
1.
Remove stylus guard and stylus
(see Stylus Replacement).
Yellow
Dark
Green
4.7 mV
5.5 mV
20 to
20,000
Hz
20
t o
20,000
Hz
within
2 dB
-
25 dB
at
1
kHz
-
3/q to
1
grams
1 %
to
3
grams
400 H z
-
24 cm/sec
1,000 Hz
-
33 cm/sec
10,000 Hz
-
19 cm/sec
at 1 gram
- -
