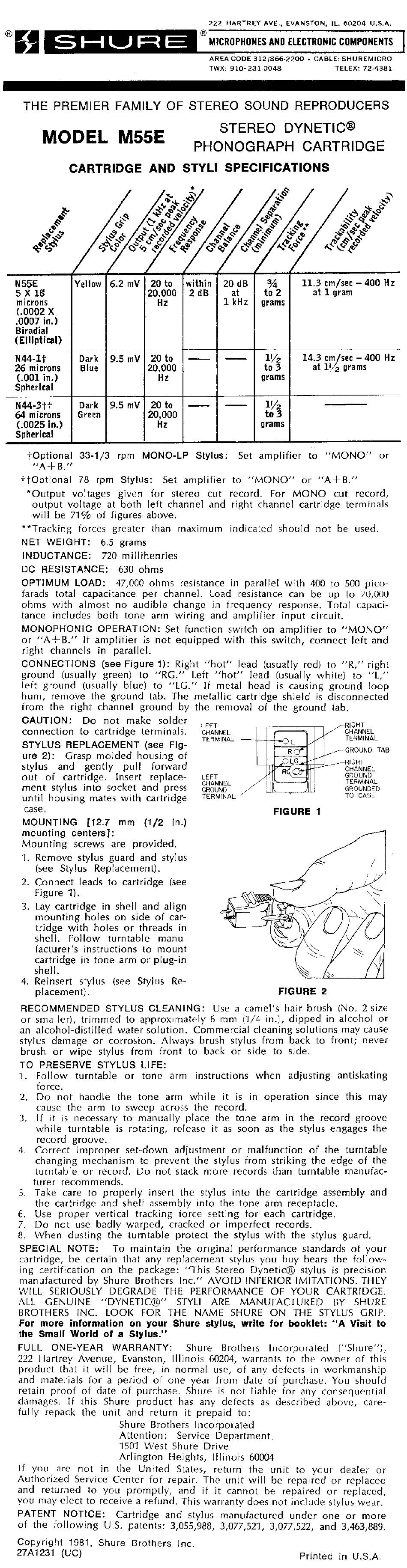

Shure M55E Manual

222 HARTREY AYE.. EVANSTON.
IL. 60204 1 J . S . A
T W X : 910-231-0048 TELEX: 72.4381
THE PREMIER FAMILY OF STEREO SOUND REPRODUCERS
STEREO DYNETIC@

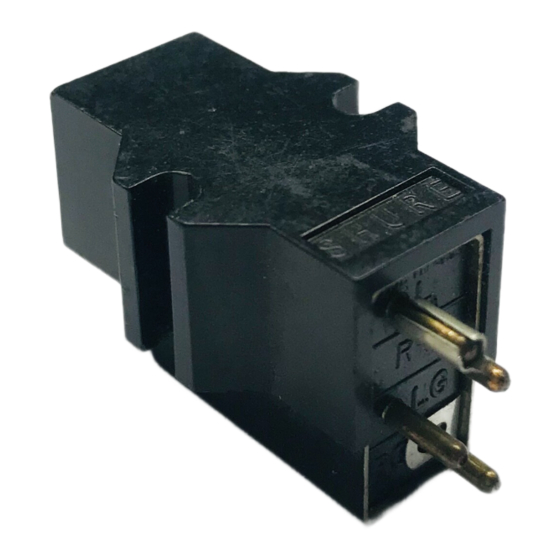

M55E
PHONOGRAPH CARTRIDGE
CARTRIDGE AND STYLI SPECIFICATIONS
LO025
in.) grams
Spherical
t o p t i o n a l 33-1/3 rpm MONO-LP Stylus: Set amplifier to "MONO" o r
"A+ B."
t t o p t i o n a l 78 rpm Stylus: Set amplifier to "MONO" o r " A t B . "
'Output voltages given for stereo cut record. For M O N O cut record,
output voltage at both left channel and right channel cartridge terminals
w i l l be
71%
of figures above.
"Tracking forces greater than maximum indicated should not be used.
NET WEIGHT:
6.5
grams
INDUCTANCE: 720 millihenries
DC RESISTANCE:
630
ohms
OPTIMUM LOAD: 47,000 ohms resistance in parallel with 400 to 500 p ~ c o -
farads total capacitance per channel. Load resistance can be up to
70,000
ohms with almost n o audible change i n frequency response. Total capaci-
tance includes both tone arm wiring and aniplifier input circuit.
MONOPHONIC OPERATION: Set function switch o n amplifier t o "MONO"
o r "A+B."
li
a m p l ~ i ~ e r is not equipped with this switch, connect left and
right channels i n parallel.
CONNECTIONS (see Figure 1): Right "hot" lead (usually red) to "R," right
ground (usually green) t o "RC." Left "hot" lead (usually white) to "L,"
left ground (usually blue) to "LG." I f metal head is causing ground loop
hum, remove the ground tab. The metallic cartridge shield is disconnected
i r o m the right channel ground by the removal of the ground tab.
CAUTION: D o not make solder
RIGHT
connection t o cartridge terminals.
~FNNEL
CHANNEL
TERMINAL
STYLUS REPLACEMENT (see Fig-
TERM'NAL
ure 2): Grasp molded housing of
GROUND TAB
stylus and gently p u l l forward
RIGHT
CHANNEL
out of cartridge. Insert replace-
LEFT
GROUND TERMINAL
ment stylus into socket and press
~~~~~~
, /
GROUNDED
until housing mates w i t h cartridge
TERMINAL TO
CASE
case. FIGURE 1
MOUNTING
L12.7
mm (1/2 in.)
mounting centers]:
Mounting screws are provided.
1.
Remove stylus guard and stylus
(see Stylus Replacement).
2 Connect leads to cartr~dge (see
Fiaure
1).
- 1
- '
v
\?I
- .
3.
Lay cartridge in shell and align
mounting holes o n side o f car-
tridge with holes o r threads in
shen. Follow turntable rnanu-
( $ 5 ,
!Y
' -
/ k '
1
facturer's instructions to mount
cartridge i n tone arm o r plug-in
shell.
4.
Reinsert stylus (see Stylus Re-
placement).
FIGURE 2
RECOMMENDED STYLUS CLEANING: Use a camel's hair brush (No.
2
size
o r smaller), trimmed to approx~mately
6
mm
(1/4
in.), dipped in alcohol or
an alcohol-distilled water solution. Commercial cleaning solutions may cause
stylus damage o r
corrosion.
Always brush stylus from back to front; never
brush o r wipe stylus from front to back o r side to side.
TO PRESERVE STYLUS LIFE:
1.
Follow turntable or tone arm instructions when adjusting antiskating
force.
2. D o not handle the tone arm while i t is i n operation since this may
cause the arm to sweep across the record.
3.
I f i t is necessary to manually place the tone arm i n the record groove
while turntable is rotating, release i t as soon as the stylus engages the
record groove.
4. Correct improper set-down adjustment o r malfunction of the turntable
changing mechanism to prevent the stylus from striking the edge of the
turntable or record. D o r ~ o t stack more records than turntable manufac-
turer recommends.
5.
Take care to properly insert the stylus into the cartridge assembly and
the cartridge and shell assembly into the tone arm receptacle.
6.
Use proper vertical tracking force setting for each cartridge.
7.
D o not use badly warped, cracked o r imperfect records.
8. When dusting the turntable protect the stylus w i t h the stylus guard.
SPECIAL NOTE: To ma~ntain the o r ~ g i n a l performance standards of your
cartridge, be certain that any replacement stylus you buy bears the follow-
ing certification on the package: "This Stereo D y n e t ~ c O stylus is precision
manufactured by Shure Brothers Inc." AVOID INFERIOR IMITATIONS. THEY
WILL SERIOUSLY DEGRADE THE PERFORMANCE OF YOUR CARTRIDGE.
ALL GENUINE "DYNETICB" STYLI ARE MANUFACTURED BY SHURE
BROTHERS INC. LOOK FOR THE NAME SHURE O N THE STYLUS GRIP.
For more information o n your Shure stylus, write for booklet: "A Visit t o
the Small World of
a
Stylus."
FULL ONE-YEAR WARRANTY: Shure Brothers lncorporated ("Shure"),
222 Hartrey Avenue, Evanston, Illinois 60204,
warrants to the owner of this
product that i t w i l l be free, In normal use, of any defects In workmanshlp
and materials for a period of one year from date o i purchase. You should
retain proof of date of purchase. Shure is not liable for any consequential
damages. I f this Shure product has any defects as described above, care-
fully repack the unit and return i t prepaid to:
Shure Brothers Incorporated
Attention: Service Department
1501 West Shure Drive
Arlington Heights, Illinois
60004
I f you are not i n the United States, return the unit to your dealer or
Authorized Service Center for repair. The unit w i l l be repaired o r replaced
and returned to you promptly, and if i t cannot be repaired o r replaced,
you may elect to receive a refund. This warranty does not include stylus wear.
PATENT NOTICE: Cartridge and stylus manufactured under one o r more
of the following U.S. patents:
3,055,988, 3,077,521, 3,077,522,
and
3,463,889.
Copyrlght 1981, Shure Brothers Inc.
27A1231 (UC)
Printed i n U.S.A.
