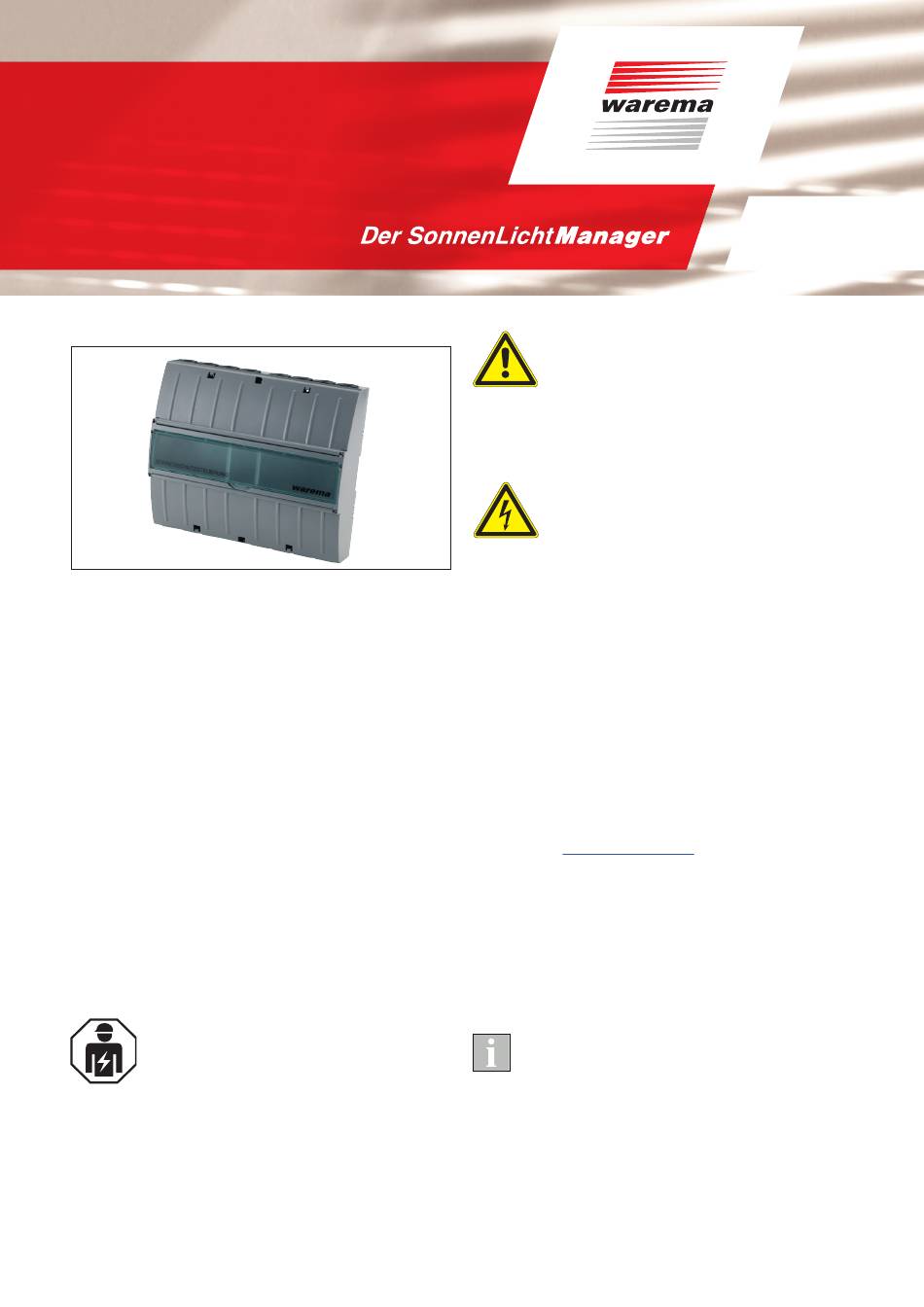

KNX SA 16M230.32 SMI AP
KNX SA 16M230.32 SMI
LoVo AP
Installation instructions
General information

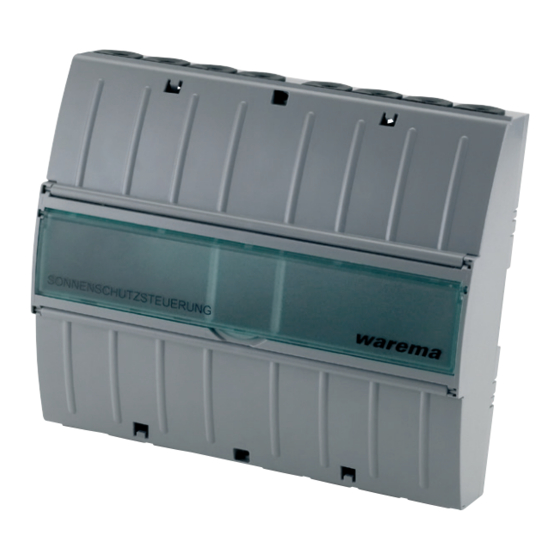

Fig. 1
KNX SA 16M230.32 SMI AP /
KNX SA 16MDC.32 SMI LoVo AP
The KNX SA 16M230.32 SMI AP and the
KNX SA 16MDC.32 SMI LoVo AP sun shading actuators
are devices for the central operation of up to 16 SMI sun
shading drives in up to 16 groups.
The device is operated using a KNX bus system. The
sun shading actuator and the drives are supplied with
230 V AC or 24 V DC.
Either 4 motors per integrated miniature fuse or 16 mo-
tors without fuse protection can be connected to the SMI
interface.
Additionally, the switch actuator has 32 binary inputs which
can be programmed in ETS.
Intended use
The KNX SA 16M230.32 SMI AP and the
KNX SA 16MDC.32 SMI LoVo AP are electronic devices to
control sun shading products. The approval of the manu-
facturer must be obtained for any use of the device other
than its intended purpose specified in these instructions.
The sun shading actuator is intended for installation in
enclosed electrical operating facilities.
Safety instructions
WARNING
The electrical installation (assembly)/dis-
mantling must be performed by a certified
electrician in accordance with the electri-
cal installation regulations published by
the VDE Association for Electrical, Elec-
tronic & Information Technologies (VDE
0100) and/or in compliance with the stand-
ards and legal requirements of the country
in which the device is being installed. The
electrician must observe the installation
instructions included with the electrical
devices supplied.
warema_2024841_alhb_en_v3•2023-05-01
WARNING
If hazard-free operation cannot be as-
sumed, the device may not be started or
must be deactivated. This assumption is
justified if:
t he housing or the connecting lines show
signs of damage,
the device is no longer working.
WARNING
It is important to comply with the following
points in the interest of personal safety.
Children may not play with the operating elements of
the control unit or the remote control. Store remote con-
trols out of reach of children.
Make sure that no persons or objects are in the path
of the driven parts (venetian blinds, external venetian
blinds, etc.).
Disconnect the device from the supply voltage if clean-
ing or other maintenance work must be performed.
Function of the sun shading actuator
These functions are integrated in the software.
You will find a detailed description in the KNX SA SMI
software manual (art. no. 2024839). You can download
the manual and the product database of the sun shading
actuator from
www.warema.de/knx
catalogue.
Installation
Insert a slotted screwdriver into the respective cover
opening (Fig. 7) and carefully pry open the hinged cover.
Repeat the procedure for the second opening of the cover.
After both latches have been unlatched,
the cover can be removed. Open the second cover in the
same way. Alternatively, the surface-mounted model may
also be mounted on a DIN rail (TH 35-15).
When installing, please note that the Up/Down
push button (manual override S1, S2) see
Fig. 5 must also be accessible in the device termi-
nal room after commissioning and allocation of the
motors.
We reserve the right to make technical modifications
Valid from
1 May 2023
Keep for future use.
or from the ETS online
1
