Sealey SSP6 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR
FUTURE USE.
1. INTRODUCTION
Clear polycarbonate safety lenses with Shade 5 flip-up lenses. Indirect ventilation in goggle frame. Conforms to BS EN 175.
2. SAFETY
WARNING! This product is for eye protection against low impact only.
8
DO NOT modify or alter the eye protector.
8
DO NOT use if damaged, pitted or scratched.
9
Always check with supervisory personnel to ensure you are being given the proper protection relative to working conditions,
9
Use only EC-certified oculars.
9
The materials which may come into contact with the wearer's skin could cause allergic reactions to susceptible individuals.
9
If the symbols F, B and A are not common to both ocular and the frame then it is the lower level which shall be assigned to the
9
complete eye-protector.
Toughened mineral filter oculars shall only be used in conjunction with a suitable backing ocular.
9
Wear the goggles for the duration of exposure to hazards.
9
3. APPLICATIONS
3.1. FIELD OF USE:
This welding goggle is designed to protect the user against eye injuries through mechanical impact. The goggle is marked on the
ocular and the frame with a series of numbers and symbols to indicate the manufacturer, the field of use, the protection capabilities and
performance characteristics of the eye-protector. The marking of the oculars and of the frame are signified as follows:
3.1.1. Cover Lens (dimension Ø50mm x 2mm) / (2"x4¼"x2mm)
LD 1 F
3.1.2. Protective lens (dimension Ø50mm x 2mm) / (2"x4¼"x2mm)
LD 1 F
3.1.3. Filters
The used filters must be EC/EU certified and their dimension must be Ø50mm. or 2"x4¼" The scale number must be adapted to the
Relevant welding process. To know their characteristics of protection, consult the marking and the notice of use the filters.
5 JY 1
3.1.4. Frame
LD EN175 F
© Jack Sealey Limited

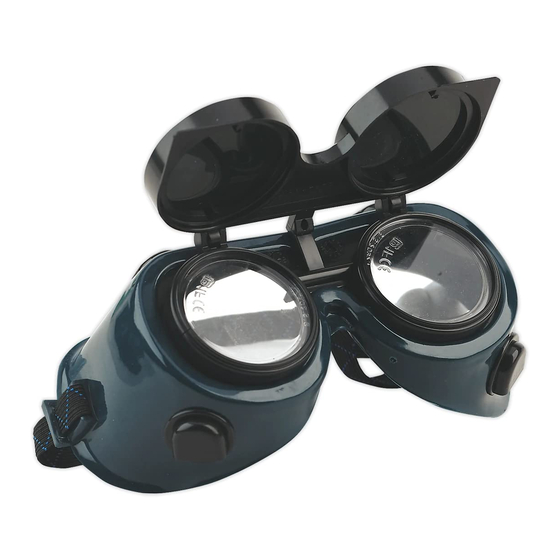

GAS WELDING GOGGLES WITH FLIP-UP
LENSES
SSP6
MODEL NO:
B CE
CE Certification
Symbol of protection against high speed particles, medium energy (120m/s)
Symbol of protection against high speed particles, low energy (45m/s)
Optical class
Identification of the manufacturer
B CE
CE Certification
Symbol of protection against high speed particles, medium energy (120m/s)
Symbol of protection against high speed particles, low energy (45m/s)
Optical class
Identification of the manufacturer
CE
CE Certification
Optical Class
Identification model from the manufacturer
Shade number
-B CE
CE Certification
Symbol of protection against high speed particles, medium energy (120m/s)
Symbol of protection against high speed particles, low energy (45m/s)
Number of the standard which the product fulfills
Identification of the manufacturer
Original Language Version SSP6 Issue 1 20/09/23
