Sealey SWT1120 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
Select a work area suitable for the table and keep the area clean, tidy and free from unrelated materials. Ensure there is adequate
9
lighting.
9
Stand the table on a stable floor strong enough to take the weight of the table.
9
Maintain the table in good condition.
9
Replace or repair damaged parts. Use recommended parts only, unauthorised parts may be dangerous and will invalidate the warranty.
9
Remove ill fitting clothing, remove ties, watches, rings and other loose jewellery and contain long hair.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and unauthorised persons away from the work area.
9
2. INTRODUCTION

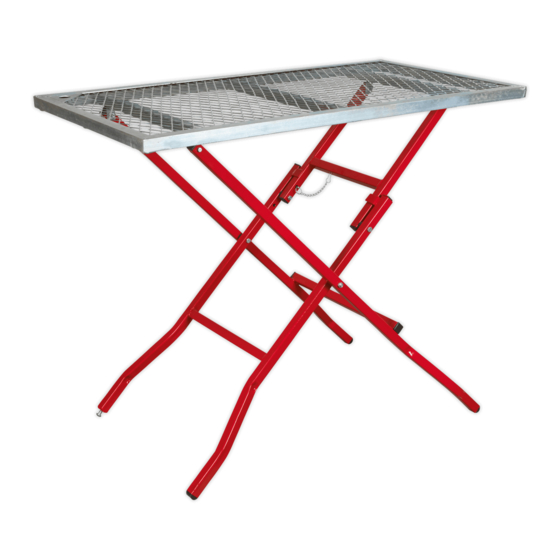

Heavy-duty galvanised welding table with 30mm MIG torch mounting point. Portable and foldable for ease of transportation and storage when
not in use. Sturdy locking pin system and adjustable foot for eliminating wobble when in use.
3. SPECIFICATION
Model no .................................................................SWT1120
Size folded ............................................ 1120 x 610 x 915mm
Weight capacity ............................................................ 100kg
4. OPERATION
4.1. L ay table upside down on floor. Remove leg securing pin, (see fig.1).
4.2. P ull inner leg (the one with the height adjusting bolt), up and over to erect legs.
4.3. O nce the legs reach their stop, reinsert the pin and 'R' clip in its end, to secure the legs in position, (see fig.2).
4.4. Get the help of an assistant to turn the table the right way up.
4.5. Use the height adjusting bolt to stabilise the table before using.
fig.1
© Jack Sealey Limited
WELDING TABLE 1120 X 610MM
SWT1120
MODEL NO:
fig.2
Original Language Version
fig.3
SWT1120 Issue:3 (3) | 15/04/20
