User Manual

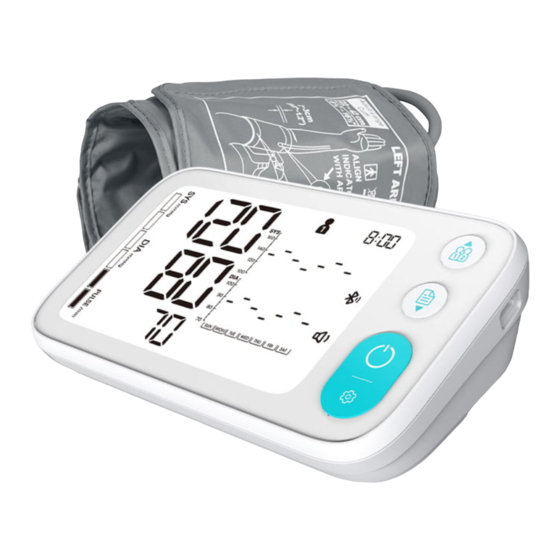

Blood pressure monitor
Model: TMB-2288-BT
Thank you very much for selecting TRANSTEK Blood Pressure Monitor
TMB-2288-BT.
Please read the user manual carefully and thoroughtly so as to ensure the
safe usage of this product, keep the manual well for further reference in
case you have problems.
Version: A/0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMB-2288-BT and is the answer not in the manual?

Questions and answers

Related Manuals for TRANSTEK TMB-2288-BT

Summary of Contents for TRANSTEK TMB-2288-BT

  • Page 1 Version: A/0 User Manual Blood pressure monitor Model: TMB-2288-BT Thank you very much for selecting TRANSTEK Blood Pressure Monitor Guangdong Transtek Medical Electronics Co., Ltd. TMB-2288-BT. Zone A, No.105, Dongli Road, Torch Development District, 528437 Zhongshan, Guangdong, China Please read the user manual carefully and thoroughtly so as to ensure the safe usage of this product, keep the manual well for further reference in case you have problems.

  • Page 2: Table Of Contents

    CATALOGUE Table of Contents FCC STATEMENT......................36 INTRODUCTION........................2 General Description Indications for Use Measurement Principle Receiving and Inspecting your Monitor Safety Information Display and Symbols Name of Each Part Contents/Product Includes BEFORE YOU START......................9 Choice of Power Supply Installing and Replacing the Batteries Setting the Date, Time and Voice Setting a user ID Pair a smart device with the monitor...

  • Page 3: Introduction

    INTRODUCTION General Description Safety Information Thank you for selecting TRANSTEK arm type blood pressure monitor The symbols below might be in the user manual, labeling or other component. They are the requirement of standard and using. rate measurement and the result storage.
  • Page 4 INTRODUCTION INTRODUCTION Precaution Warning * Do not apply the cuff on an arm that has an intravenous drip or a blood transfusion attached. * This device is portable, but it is not intended for use during patient transport. * Do not kink, fold, stretch, compress, or otherwise deform the tube during measuring, as the cuff * This device is not suitable for continuous monitoring during medical emergencies or operations.

  • Page 5: Display And Symbols

    INTRODUCTION INTRODUCTION Display and Symbols SYMBOL EXPLANATION Pulse display Pulse rate appears after the measurement. Warning Messages Refer to page for more information. Blood Pressure Trends Appears when viewing the blood pressure trends of the specified period of the past 7 days under the memory mode.

  • Page 6: Name Of Each Part

    , “ bAt Lo” & Contents/Product Includes then power off automatically after about 5 seconds. • Blood Pressure Monitor (TMB-2288-BT) • Cuff (Type BF applied part) Replace the batteries: • When the low battery symbol appears. • When any button is pressed and nothing is displayed on the screen.

  • Page 7: Setting The Date, Time And Voice

    BEFORE YOU START BEFORE YOU START Setting the Date, Time and Voice 3. Press the “START/STOP” button to confirm the date format, then the It is important to set the date and time before using your blood pressure [Month] will flash. Repeat the same steps to set the [Month] and [Day]. monitor for the first time, so that a correct time stamp can be assigned to each record that is stored in the memory.

  • Page 8: Setting A User Id

    BEFORE YOU START BEFORE YOU START Setting a user ID 6. After confirming the [Minute], it will enter the voice setting. Press the “USER” or “MEM” button to change the vocie volume. There are 3 user ID available. The user , each with 250 memory spaces, are designed for 2 different people to save the measured values separately.

  • Page 9: Pair A Smart Device With The Monitor

    BEFORE YOU START BEFORE YOU START Pair a smart device with the monitor You are the intended operator of this blood pressure monitor. You can Bluetooth Module information： measure your blood pressure and then save and send measurement data RF Frequency Range: 2402 MHz to 2480 MHz Output Power Range: connectivity.

  • Page 10: Measurement

    MEASUREMENT MEASUREMENT Applying the cuff Start a measurement Only use a cuff that has been approved by the manufacturer for this device model. Before use, please confirm if it fits your arm circumference. You can use your monitor without pairing to a smart device. To pair your Remove all jewelry, such as watches monitor with a smart device refer to the foregoing chapters.
  • Page 11 MEASUREMENT MEASUREMENT Note 4. About the irregular heartbeat and excessive body motion during the Any time, to stop the measurement, press the “START/STOP” button. If you don’t pair with the device or don’t keep the app ON, the bluetooth measurement. symbol will flash during the measurement.
  • Page 12 DATA MANAGEMENT DATA MANAGEMENT Recall the Records When the maximum average systolic pressure is higher than 170mmHg or the maximum average diastolic pressure is higher than 110mmHg, the 1. When the monitor is off, press the “MEM” button, the LCD will display symbol“...
  • Page 13 DATA MANAGEMENT DATA MANAGEMENT Delete the Records B: Delete all records (Example shown below for User 1) Delete the records by following the steps below. 1. Enter the memory recall mode as described in the previous section A: Delete one record (Example shown below for User 1) "Recall the records".

  • Page 14: Data Management

    DATA MANAGEMENT INFORMATION FOR USER Tips for Measurement 4. Once deleted, your readings cannot be restored. The LCD will display “---” like the following picture. Measurements may be inaccurate if taken in the following circumstances. Press the “START/STOP” button to turn off the monitor, otherwise it will power off automatically within 1 minute.

  • Page 15: About Blood Pressure

    ABOUT BLOOD PRESSURE INFORMATION FOR USER What are systolic pressure and diastolic pressure? Maintenance When ventricles contract and pump blood out of the heart, the blood In order to get the best performance, please follow the instructions pressure reaches its maximum value in the cycle, which is called systolic below.

  • Page 16: Irregular Heartbeat Detector

    ABOUT BLOOD PRESSURE ABOUT BLOOD PRESSURE Why does my blood pressure Blood Level fluctuate throughout the day? Optimal Normal Mild Moderate Severe Pressure 1. Individual blood pressure varies multiple <120 times everyday. It is also affected by the <80 way you tie your cuff and your measurement position, so please take the measurement under the same conditions.

  • Page 17: Troubleshooting

    TROUBLESHOOTING SPECIFICATIONS If any abnormality arises during use, please check the following points: External dimensions Display mode PROBLEM SYMPTOM CHECK THIS REMEDY Weight Batteries are depleted. Replace with new batteries. Display can No power Measurement mode Oscillographic testing mode not light up. Batteries are inserted Insert the batteries incorrectly.

  • Page 18: Authorized Component

    Guidance and manufacturer’s declaration - electromagnetic emissions For more information about our products, please visit www.transtekcorp.com. Emissions test Compliance Manufactured by: Guangdong Transtek Medical Electronics Co., Ltd. RF emissions Group 1 CISPR 11 Company: Guangdong Transtek Medical Electronics Co., Ltd.
  • Page 19 EMC GUIDANCE EMC GUIDANCE Table 2 Table 3 Guidance and manufacturer’s declaration – electromagnetic Immunity Guidance and manufacturer’s declaration - electromagnetic Immunity Immunity Test Distance IEC Compliance Compliance level Radiated RF Test Band Service Modulation Maximum Test level level Frequency Power Test Level (V/m...

  • Page 20: Fcc Statement

    ID ISED ID ISED FCC STATEMENT FCC Statement ID ISED 88 T FCC ID: OU9TMB2273BT FCC Regulatory Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
