Viking DUC180 Installation Instructions

INSTALLATION
INSTRUCTIONS
UNDERCOUNTER TRASH COMPACTOR
Retain for Future Reference
IMPORTANT - PLEASE READ AND FOLLOW
•Before beginning, please read these instructions completely and carefully.
•Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
•Please observe all local and national codes and ordinances.
•Please ensure that this product is properly grounded.
•The installer should leave these instructions with the consumer who should retain for local inspector's use and for
future reference
BEFORE YOU START INSTALLATION
Proper installation is your responsibility. Make sure you have everything necessary for correct installation. It is the
personal responsibility and obligation of the customer to contact a qualified installer to assure that electrical installation
meets all local and national codes and ordinances.
Grounded electrical outlet is required. (See "Electrical Requirements")
Check the location where the compactor will be installed. Compactor is designed for recessed installation. Cabinet
opening should be square. You should be able to fully open the compactor drawer. Allow 25" (63.5 cm) in front of
compactor to remove drawer. Six inches of clearance is needed on the right side of the compactor drawer to be able
to remove basket/bag.
Do not let any item fall or collect behind the compactor. To do so may result in a fire.

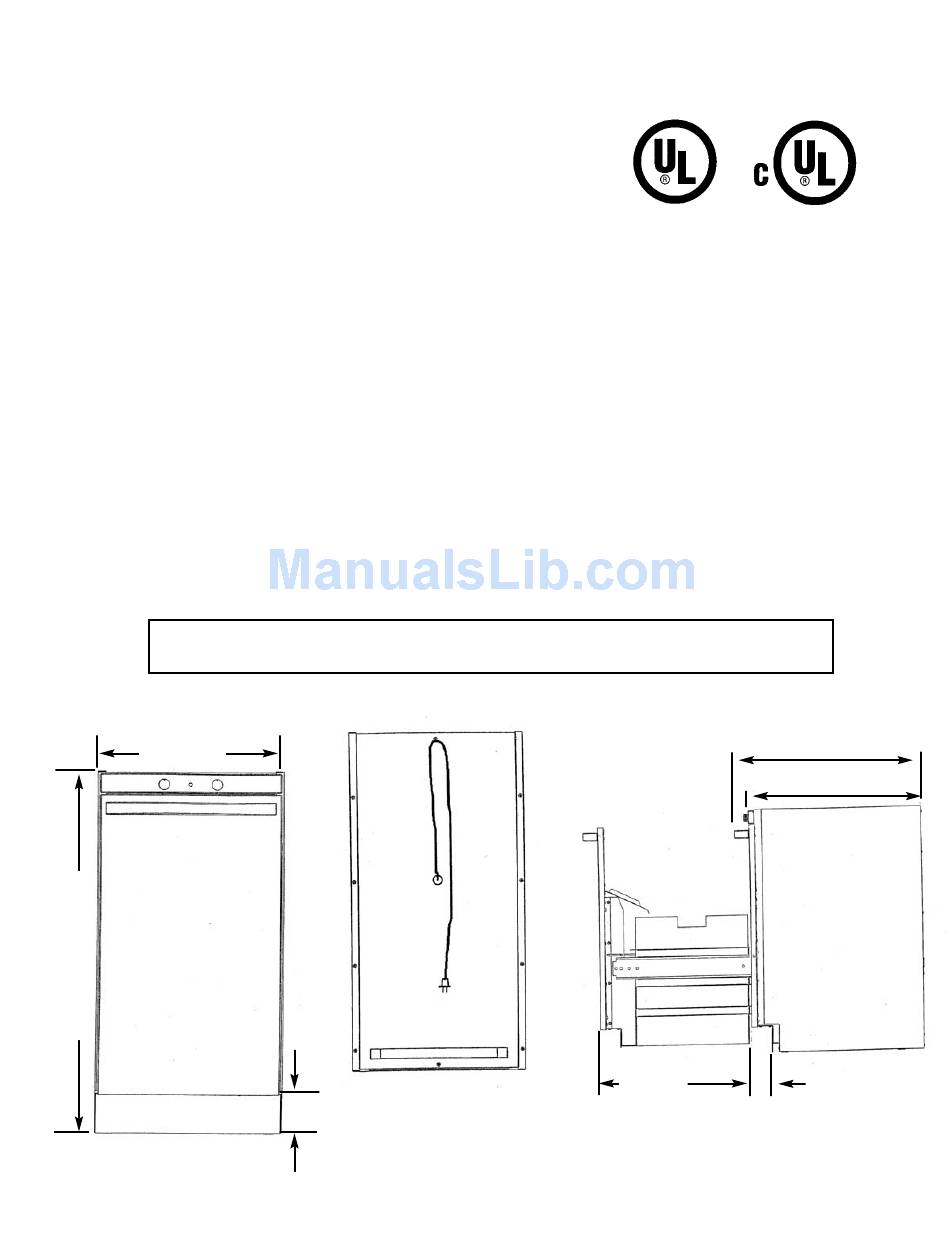

F F R R O O N N T T
17 13/16"
(45.2 cm)
Min.
34 1/8"
(86.7 cm)
Max.
35 1/2"
(90.2 cm)
WARNING: FIRE HAZARD
R R E E A A R R
Electric/Cord Data
•2-wire with ground/ 3 prong plug
•bracket to end - 54" (137.2 cm)
3 1/2"
•total length - 72" (182.9 cm)
(8.9 cm)
•115 VAC/60 hz
•separate 15 amp min.
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
S S I I D D E E
25 7/8" (65.7 cm)
23 7/8" (60.6 cm)
21 7/8"
(49.2 cm)
2 7/8"
(7.3 cm)
