SightCare CloverBookXL Lite User Manual

Video magnifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

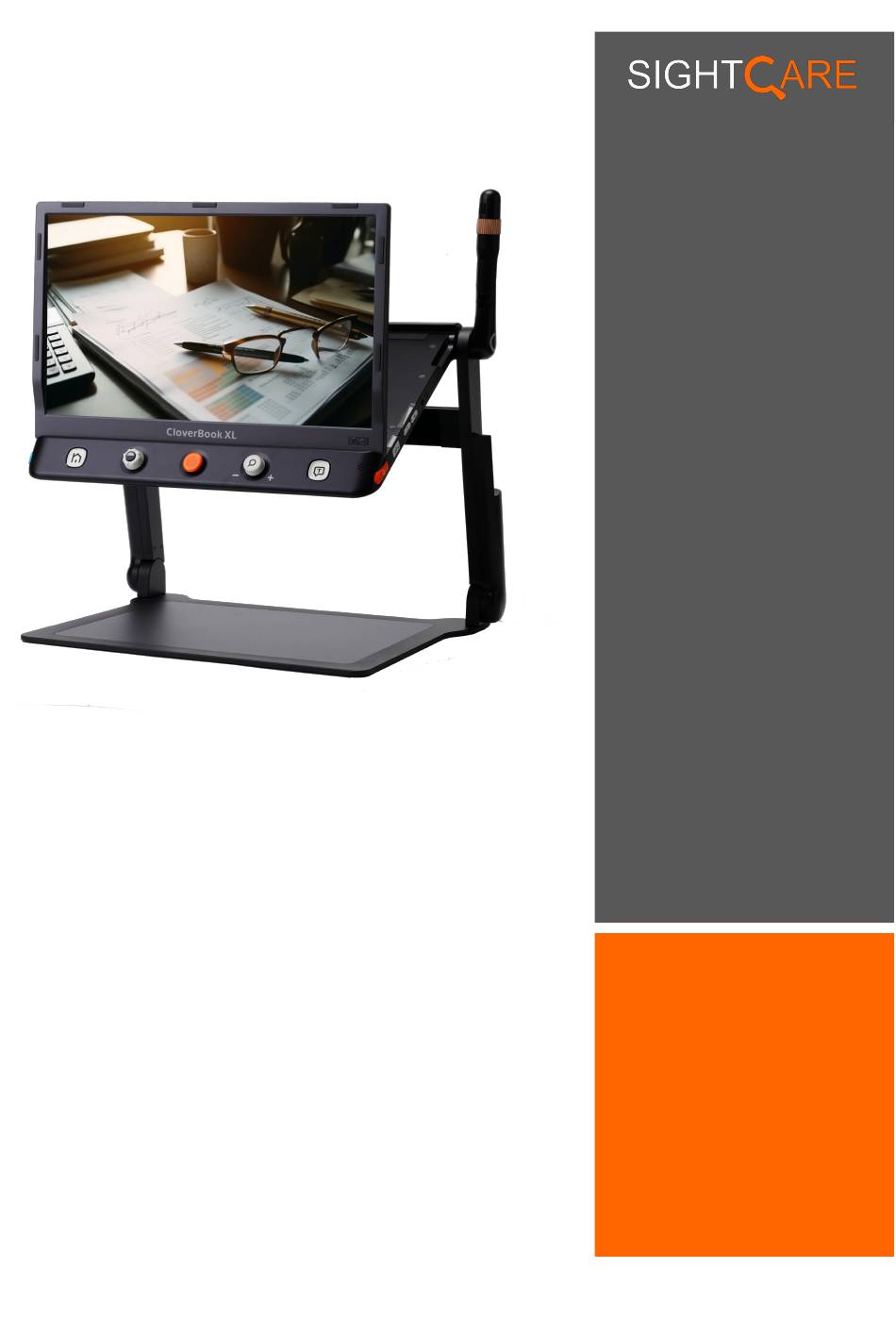

CloverBook XL
Video Magnifier
User Guide
REV1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CloverBookXL Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SightCare CloverBookXL Lite

Summary of Contents for SightCare CloverBookXL Lite

  • Page 1 CloverBook XL Video Magnifier User Guide REV1.0...

  • Page 2: Table Of Contents

    Contents Precaution ..................1 Quick Start ................... 2 Overview ......................2 Compositions ....................... 4 Accessories ......................6 Setting Up ......................6 Battery Charging ....................9 Power LED ......................9 Battery Replacement ..................10 Operation ..................11 Power Button ..................... 11 Home/Exit Button ....................12 Magnification .....................12 Brightness ......................
  • Page 3 Location Function ....................19 Live Panning ......................20 Focus Control .....................21 Toggling System (Depends on the configuration) ..........21 Full Page Reading (Optional) ................26 Text to Speech (Optional) ................. 26 Document Scan (Optional) ................32 Open Application ....................34 Setting Menu ......................41 HDMI Output(Optional) ..................43 HDMI Input(Optional) ..................

  • Page 4: Precaution

    Precaution Before using CloverBook for the first time, you must charge its battery. Refer to the Battery Charging section for more details. Always operate the unit in a place where the temperature is between 10°and 35°C (50°and 95°F). Keep the unit away from wet areas, rain, and other sources of liquids.

  • Page 5: Quick Start

    Quick Start Overview Thank you for purchasing CloverBook XL! CloverBook XL is a 15.6 inch portable video magnifier which can satisfy all the daily requirements and work across 3 main market segments of home, work and education for the low vision people. The integrated foldable arm and lifting handle design make it very compact.
  • Page 6 Mate/Pro) will auto recognize the context of various language with user-preferred page size, and speak aloud with natural voice generated by TTS engine, providing reading and auditory enjoyment. The device owns all basic and practical functions, allowing you to read, change color, capture images. Version Lite Plus...

  • Page 7: Compositions

    Compositions 1. LCD Screen 2. Home/Exit Button 3. Enhanced Color Button 4. Joystick 5. Zoom Button 6. Speech/Enter Button 7. Tray 8. Power Button 9. DC Port 10. HDMI In Port 11. HDMI Out Port 12. SD card Slot 13. Switch button 14.
  • Page 8 15. Earphone Port 16. Voice Up Button 17. Voice Down Button 18. Focus Control Button 19. Freeze Button 20. LED Lights 21. Main Camera 22. Unlock Button 23. Battery Slot 24. Lifting Handle 25. Speaker 26. USB Port 27. Distance Camera...

  • Page 9: Accessories

    Accessories User Manual Power Adapter HDMI Cable (optional) Cleaning Cloth Carrying Case Light Shield Setting Up Device Setting Up Step 1 Place the device on a flat surface, press the tray to make the device stable and pull up the handle at the same time...
  • Page 10 Step 2 Keep pressing the tray and unfold the arms to a suitable angle. Step 3 Unfold the display panel to a comfortable reading height. Step 4 (Optional) With the device Setting up already, the screen can be adjusted vertically for more comfortable reading based on using case.
  • Page 11 Distance Camera Setting up (Optional) With the device setting up already, rotate the camera stick clockwise to the suitable viewing height. Light Shield Setting up (Optional) Peel off the sticker cover from the light shield and then adhesive the shield to the back side of the device as the picture shows. It...

  • Page 12: Battery Charging

    will avoid the unit’ lighting affecting the others. Battery Charging Connect the supplied power cable to the unit’s charging port, then connect the power adapter into an AC outlet to start charging. Power LED  Charging when the unit is off, the power LED will be green and auto turn off when fully charged.

  • Page 13: Battery Replacement

    Battery Replacement The battery can be separated and detachable from the device., which is very convenient to be exchangeable. Step 1 Turn the device upside down and let the back cover of panel face to you as the pictures show. Step 2 Press the Unlock Button on the back side and the battery will be released.

  • Page 14: Operation

    Operation CloverBook XL has different configurations as touch screen, built-in distance camera and OCR function are optional to satisfy various requirements. According to the model that you purchased, please refer to the corresponding operation. Power Button  Hold the Power button for 3 seconds to turn on the unit.

  • Page 15: Home/Exit Button

    Home/Exit Button  Long press the Home/Exit button for 2 seconds get into the Home Page, including Magnifier Application, A4/A3 Full Page Application(only available on the Mate/Pro model), Open Application and Setting Menu. The chosen one will be highlighted. Choose the specific icon with touchscreen gesture (or use the Joystick to choose and Speech/Enter button...

  • Page 16: Brightness

    Brightness In the Magnifier Application, short press the Home/Exit button or slide up from the bottom screen to pop up the Control Bar.  Tap to choose the icon below (or use the Joystick  Finger slide rotate Zoom button increase/decrease the brightness.

  • Page 17: Contrast Control

     Press and hold the Enhanced Color button for 5 seconds to enter the Customized Color Page, use the tap gesture to activate/inactivate the enhanced color combination (or use the Joystick to choose and Speech/Enter button ) to confirm).  Tap the Exit icon to exit the Customized Color Page (or press the Home/Exit button Note: The Customized Color Page can also be entered via the...

  • Page 18: Lighting

     No operation for 10 seconds or short press the Home/Exit button or Speech/Enter button ) or tap the inactive area to close. Lighting In the Magnifier Application, short press the Home/Exit Button or slide up from the bottom screen to pop up the Control Bar. The two lights can be both on/off and the left/right lights can also be controlled separately.

  • Page 19: Image Freeze

    Button/Voice Volume Bar Text-to-Speech Volume Bar Image Freeze Freezing a live image can be useful for the moving objects. Further magnification as well as enhanced color change is still available in this mode. Press Freeze button to lock/unlock the image. For the locked image with increased magnification, you can use the slide gesture or use the Joystick to navigate around freely.
  • Page 20  You can replay the recorded voice by pressing the Play Icon (or press down the Zoom Button  You can repeat recording the voice but only the latest record will be saved with the image.  No operation for 10 seconds or short press the Home/Exit button or tap the inactive area to close the icon and the image will be frozen automatically.

  • Page 21: Line And Mask

    Line and Mask Press the Line/Mask button to switch among different Reading Line & Mask modes. The Live-panning function is still available. When the reading line is available, long press the Line/Mask button and rotate the Enhanced Color button can change the line color.

  • Page 22: Location Function

     Vertical mask  Press and hold the Line/Mask button and slide the Joystick left/right to change the position of the masks；slide the Joystick up/down to enlarge/narrow the distance between the masks. Location Function When in a higher zoom level, sometimes you may be lost and confused about which paragraph of the paper you are reading now.

  • Page 23: Live Panning

     Short press the Zoom button again (or double tap inside the box), then the highlighted context will zoom in to the previous higher zoom level automatically Live Panning In a higher zoom level, use the slide gesture (or the Joystick to navigate the image for seeing more without moving the paper.

  • Page 24: Focus Control

     Quickly tap the image edge twice to jump to the start/end point (or quickly push the Joystick in the same direction twice) Focus Control The autofocus system works well in the most situations. In addition, some methods are provided to control the focus. ...
  • Page 25 Display case.  Viewing Mode toggling CloverBook XL Plus/Pro ： press the Switch button to toggle between 2 viewing modes or 4 viewing modes (Split screen is only available on the Pro version). Near View Distance/Mirror View Horizontal Split Screen Vertical Split Screen ...
  • Page 26 Flip View The distance camera can also be used for reading and handwriting. In the Distance View/Mirror View Mode, press the Home/Exit button to pop up the quick control bar. Tap the icon (or use the Joystick to choose and Speech/Enter button ) to confirm) to turn around the image and the Lighting icon is available.
  • Page 27  Tap to highlight the one of the split screens (or press Line/Mask button to switch), in which operations such as magnification can be applied. Dual Display (Optional) When the HDMI Out port occupied, it is in Dual Display case. ...
  • Page 28  Near View/Distance View When the images are the same on the main screen and the external screen, there are three option can be chosen in the Quick Control Bar. Screen Copy: the main screen and external screen show the same image.

  • Page 29: Full Page Reading (Optional)

    A4/A3 Full Page Reading (Optional) The device can capture the full page size and you can read with the ability to magnify, change colors, and scroll around.  Long press the Home/Exit button to get into the Home Page, tap the icon to get into the Full Page Reading accordingly.
  • Page 30 the content of full page (up to A4/A3 size). Current Page OCR can recognize the viewing content of current zoom level. Full Page OCR There are two ways to get into the Full Page OCR: 1. Long press the Speech button for 2 seconds to activate the A3 Full Page mode.
  • Page 31  Press the Speech button to reactivate the OCR function. Tap the Exit icon (or long press the Home/Exit button ) to return to the last application. TTS Operation As soon as the recognition procedure finishes, the TTS Control Bar(default) appears at the bottom of the screen. ...
  • Page 32  Picture Mode In the Picture Mode, the layout of the content will remain the same as the captured image. Zoom In/Out, Panning and Color mode are still available. Long press the Switch button can get into the rotation page in case the direction needs to be modified.
  • Page 33 the target line (please note it is only available in this chosen section) to start reading.  Tap Previous icon / Next icon will jump to the previous/next section and highlight it. Multi-selection  Tap the Play icon (or press the Speech button ) to start reading the highlighted sections in sequence.
  • Page 34  When in play status, tap the specific region twice will start reading from that place. Text Mode   Tap Picture icon (or press the Switch button ) to get into Text Mode when segmentation enabled. Only the highlighted content will be transformed into text and showed.

  • Page 35: Document Scan (Optional)

    Document Scan (Optional) CloverBook XL Mate/Pro supports Current Document Scan and Full Page Document Scan, which can save several images one by one as PDF format in the Document - Open Application. With Document Scan enabled in the settings, press the Home/Exit button to pop up the Scan icon on the right side of the...
  • Page 36  The rotation can be applied by tapping the Rotation icon press the Freeze button ) if the auto recognized direction is not correct. With and hand gesture, the orange box can be dragged (or rotate the Zoom button ) to adjust the saving content.

  • Page 37: Open Application

    Note: One scan can save 99 pages at the maximum. Open Application There are three choices in the Open Application. When the external SD card and USB stick is not inserted into the device, only the Memory icon is available. With the external SD card or USB stick inserted, the Memory icon and corresponding icon are available.
  • Page 38 Picture or Shared Document accordingly. Choose the specific picture/document first and then tap the Transfer icon (or press the Freeze button ) to start. If the SD card and USB stick are both inserted, when tap the transfer icon will pop up the choose box at first, you can tap the corresponding icon to transfer.
  • Page 39  Tap the corresponding the Trash icon /Transfer icon (or press the Freeze button ) to pop up the choose box. Tap the icon in the choose box (or press the Speech/Enter button ) ) to confirm deletion/transfer of all the chosen pictures/documents.
  • Page 40  Press the Home/Exit button to pop up the control bar. Tap icon to page up/down the picture (or press the Switch button /Focus Control button ). Tap icon to quickly go back to the first picture or last picture. ...
  • Page 41  With Multi-seletion activated, and all the target pictures have been chosen, tap the Trash icon (or press the Line/Mask button ) will pop the choose box. Tap the Trash icon press the Speech/Enter button ) ) to delete or tap the Exit icon (or press the Home/Exit button ) to cancel.
  • Page 42 button ) to start reading. Tap the Pause icon press the Speech/Enter button ) to pause the reading.  Tap the icon to change the size of the words.  Tap the Exit icon (or long press the Home/Exit button or use the Joystick and press the Speech/Enter button ) to exit to the gallery.
  • Page 43  Long press the Speech/Enter button will activate the TTS function directly.  Tap the Exit icon to exit to the document gallery.  When in the gallery, the transfer and deletion can be applied to the documents. And the operations are the same as above in the Open Picture.

  • Page 44: Setting Menu

    Setting Menu Get into the Settings Menu from the Home Page. There are three setting pages as below: Option Page Voice Setting Page Factory Setting Page  Use the tap gesture (or rotate the Enhanced Color button ) to switch from the 3 setting pages. ...
  • Page 45 Document Scan provides an option to save the multi images as PDF. Speech Guide provides an option of human voice prompts as the operation/status hint with Full/Simple option. Voice Setting Page Gender Voice provides options of man voice and female voice. The factory default is female voice.

  • Page 46: Hdmi Output(Optional)

    HDMI Output (Optional) Connect the unit to the external display device with HDMI cable for the dual display application. Please kindly note there is also an official secondary screen - CloverView XL as an option.

  • Page 47: Hdmi Input(Optional)

    HDMI Input (Optional) Connect an external source to the unit which will show the image. The internal distance camera will be bypassed. Hardware Reset When the unit is hung or can’t be turned off normally, press the Power and Voice Up Button and Voice Down Button at the same time to trigger the hardware reset.

  • Page 48: Troubleshooting

    Troubleshooting  The unit does not turn on  Connect to the power adapter  Charge the battery  Hardware Reset  Black screen or White screen  If the unit is sitting on a flat pure surface or there is nothing on the tray, the screen may be black or white.
  • Page 49  Clean the LCD screen and camera  Image is out of focus  Check if the auto focus is disabled  move your hand back and forth over the document you are viewing to trigger the focus  Tap on the screen for 2 seconds to trigger the focus manually ...

  • Page 50: Specification

    Specification  Display: 15.6 inch IPS touch screen, Screen Resolution: 1920*1080  Camera: Ultra HD 4K Camera, Video Resolution: 3840*2160  Magnification: Near-view: 1.4x - 54x (Relevant to viewing angle)  Color Mode: Nature Color, up to 16 user-defined Enhanced Colors ...
