Summary of Contents for OHAUS SHRK07AL1

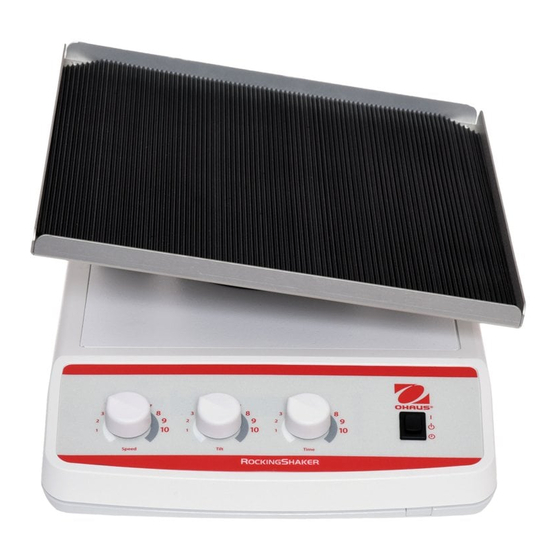

- Page 1 Instruction Manual EN - English ... . 1 Shaker, Rocking, 1 Tier, SHRK07AL1 CZ - Czech ... . 100 KR - Korean .
-
Page 2: Table Of Contents
Waving Shaker Analog or An OHAUS product service specialist will be available to provide assistance. Outside the Waving Shaker Digital USA, please visit our web site, www.ohaus.com to locate the Ohaus office nearest you. Non-skid rubber mat Power Cord Serial Number:... -
Page 3: Installation
By doing the unit prior to any cleaning. If the unit ever requires service, contact your Ohaus so, you will help to conserve natural and environmental resources and you will ensure that representative. -
Page 4: Safety Instructions
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by Ohaus Corporation could void the user’s authority to operate the equipment. -
Page 5: Analog Rocking/Waving Shaker Specifications
ANAlOG ROCKING/WAVING SHAKER SPECIfICATIONS Overall dimensions (L x W x H): Rocker: 16.8 x 11.0 x 5.5” (42.5 x 27.9 x 14.0cm) Waver: 16.8 x 11.0 x 6.5” (42.5 x 27.9 x 16.5cm) Tray dimensions (L x W): 14 x 11” (35.5 x 27.9cm) Electrical (50/60 Hz): Rocker: 120 volts, 15 watts... -
Page 6: Analog Rocking/Waving Shaker Control Panel
ANAlOG ROCKING/WAVING SHAKER CONTROl PANEl ANAlOG ROCKING/WAVING SHAKER OPERATING INSTRUCTIONS The front panel of the Analog Rocker contains all the controls and displays needed to operate the unit. 1. Getting ready: a. Rocker switch should be in the center Standby position. b. -
Page 7: Digital Rocking Shaker Specifications
DIGITAl ROCKING SHAKER SPECIfICATIONS Overall dimensions (L x W x H): 16.8 x 10.0 x 5.5” (42.5 x 25.4 x 140cm) Tray dimensions (L x W): 12.75 x 10” (32.4 x 25.4cm) Electrical (50/60 Hz): 120 volts: 25 watts 230 volts: 25 watts Fuses: 5mm x 20mm, 5 amp quick acting... -
Page 8: Digital Waving Shaker Specifications
DIGITAl WAVING SHAKER SPECIfICATIONS Overall dimensions (L x W x H): 17 x 11 x 6” (43.2 x 27.9 x 15.2cm) Tray dimensions (L x W): 11.75 x 8.75” (29.9 x 22.2cm) Electrical (50/60 Hz): 120 volts: 25 watts 230 volts: 25 watts Fuses: 5mm x 20mm, 5 amp quick acting... -
Page 9: Digital Rocking/Waving Shaker Control Panel
DIGITAl ROCKING/WAVING SHAKER CONTROl PANEl The front panel of the Rocking/Waving Shaker contains all the controls and displays E. Function button: Press to choose the function you are setting: speed or tilt. needed to operate the unit. F. Speed indicator light: Illuminates when the speed is displayed. A. -
Page 10: Digital Rocking/Waving Shaker Operating Instructions
DIGITAl ROCKING/WAVING SHAKER OPERATING INSTRUCTIONS The Rocking/Waving Shakers have been designed for the speed/tilt angle and c. Press the on/off button to start the rocking/waving function. The indicator light time functions to work independently of one another. The speed/tilt angle can be below the speed/tilt angle display will illuminate and blink until the set-point is reset without resetting the timer and the timer can be stopped and started without reached. - Page 11 DIGITAl ROCKING/WAVING SHAKER OPERATING INSTRUCTIONS CONT’D 5. Setting timed mode: Programmed time. OPERATING TIPS a. Press the up/down arrows below the time display until you reach the desired As a safety feature, a built-in program will shut power off to the motor if the tray is time.
-
Page 12: Troubleshooting
The E03 error can be addressed by the user. Press the standby button to clear this error. If the E03 error persists, along with grinding, knocking or rubbing noises, un-plug the unit and contact your Ohaus representative for repairs. Mechanical obstruction...
