Ohaus Corporation
29 Hanover Road
Florham Park NJ
07932-0900
Electronic Balances
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCOUT II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OHAUS SCOUT II

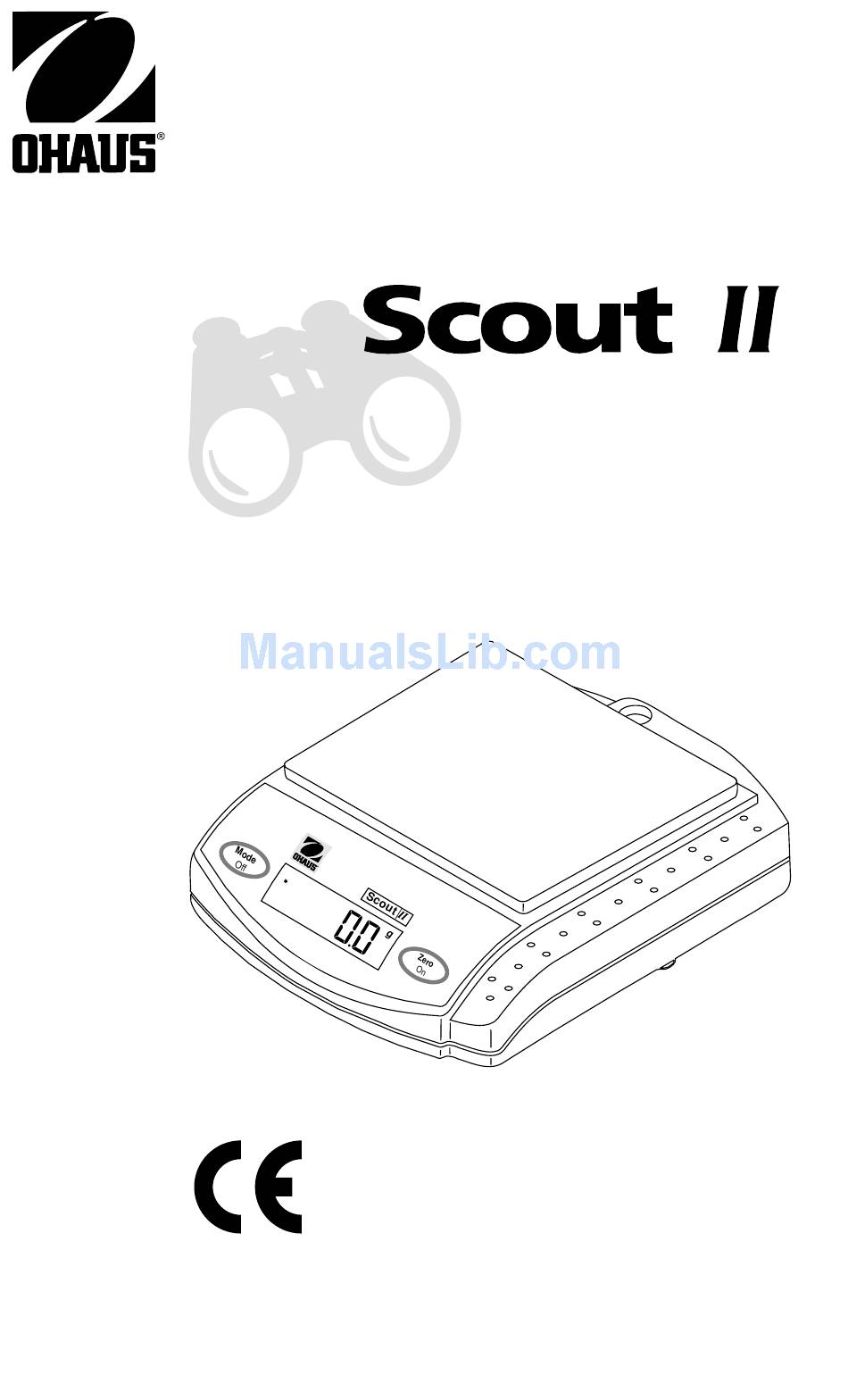

  • Page 1 Ohaus Corporation 29 Hanover Road Florham Park NJ 07932-0900 Electronic Balances...
  • Page 2 NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION ....................4 UNPACKING ..................... 4 INSTALLATION ....................5 Power ....................5 Pan Installation .................. 5 Weigh Below Hook ................6 IMPORTANT INFORMATION ................6 TURNING THE BALANCE ON ................. 7 TURNING THE BALANCE OFF ................ 7 WEIGHING ......................
  • Page 4: Description

    DESCRIPTION ScoutII balances are precision weighing instruments, designed to provide years of service. Features include front panel controls, simplified menu, automatic shut- off, multiple weighing units, parts counting and a weigh below hook. A total of ten models are available with full capacity ranges of 200g to 6000g. Five of the models are available with RS232 communications for operation with external computers or printers.
  • Page 5: Installation

    INSTALLATION For best performance, the balance should be used in a clean, stable environment. Do not use the balance in environments with excessive drafts, near magnetic fields or equipment that generates magnetic fields, rapid temperature changes, vibrations or corrosive vapors. Power Connect the AC Adapter at the rear of the balance.
  • Page 6: Weigh Below Hook

    Ohaus. 1200g, 4000g and 6000g units are not shipped with masses. be ordered from Ohaus. 1200g and 6000g balances are not shipped with masses.
  • Page 7: Turning The Balance On

    TURNING THE BALANCE ON Press Zero On. All segments will appear briefly followed by a software revision number and then 00 . Allow 5 minutes warm-up time. LOW BATTERY WEIGHING UNIT INDICATOR INDICATORS oz t STABILITY INDICATOR Balance Display TURNING THE BALANCE OFF To turn the balance OFF, press and hold Mode Off until the display indicates OFF , then release.
  • Page 8: Menu Description

    MENU DESCRIPTION The User Menu permits you to activate the Auto Shut-off feature, select weighing units, select parts counting, select printing parameters on RS232 equipped mod- els and perform Linearity calibration and store settings. Bolded items shown in the menu are factory default settings. Each menu item is covered in a separate proce- dure in this manual, to enter an individual menu item and select it requires alter- nating between the Mode Off and Zero On buttons.
  • Page 9: Span Calibration

    SPAN CALIBRATION ScoutII balances are calibrated before shipment, however calibration can be affected by changes in location, temperature, or rough handling. Check the bal- ance with the calibration mass supplied. If calibration is required, proceed as NOTE: 1200g, 4000g and 6000g balances are not supplied with masses follows: NOTE: 1200g and 6000g balances are not supplied with masses.
  • Page 10: Activating Units

    ACTIVATING UNITS 1. Start with the balance OFF. Press Zero On until MENU is displayed. 2. Press Mode OFF until UnitS is displayed. 3. With UnitS displayed, press Zero On to display the grams indicator "g" with its current setting or On or OFF 4.
  • Page 11: Print Menu

    PARTS COUNTING (CONT.) 7. To read the weight of the parts, press Mode Off to change to any of the activated weighing units. 8. To return to a weighing mode, press Mode Off to select a weighing unit, the display indicates the weight of the container as a negative value. Simply press Zero On to tare the balance.
  • Page 12: Setting Print Menu Functions

    SETTING PRINT MENU FUNCTIONS This procedure permits you to set one or all of the RS232 communication param- eters on balances equipped with RS232. Each parameter can be entered and set individually. ENTERING THE PRINT MENU 1. Start with the balance OFF. Press Zero On until MENU is displayed. 2.
  • Page 13: Data Bits

    SETTING PRINT MENU FUNCTIONS (CONT.) DATA BITS 1. With dATa displayed, press Zero On until -7- or -8- is displayed. 2. Press Mode Off to change the displayed setting to either -7- or -8-. 3. To accept the displayed setting, press Zero On. The display returns to dAtA .
  • Page 14: Stable Data Output Only

    SETTING PRINT MENU FUNCTIONS (CONT.) STABLE DATA OUTPUT ONLY 1. With PrStb displayed, press Zero On until On is displayed. 2. Press Mode Off to change the displayed setting to either On or OFF . 3. To accept the displayed setting, press Zero On. The display returns to PrStb .
  • Page 15: Rs232 Commands

    RS232 INTERFACE RS232 Commands All communication is accomplished us- Data Out (TXD) ing standard ASCII format. Only the char- Data In (RXD) Tare (External signal) acters shown in the following table are Clear To Send (CTS) acknowledged by the balance. Any other Data Terminal Ready (DTR) Ground commands, control characters or spaces...
  • Page 16: Error Codes

    RS232 INTERFACE (Cont.) Error Codes Err 0 Invalid checksum data Err 1 Overload (>103% capacity) or Underload Err 4 Incorrect calibration weight Err 5 Displayed value >99999 (could occur in parts counting) Err 6 Parts counting error - sample weighs <1d. balance shows error then exits parts counting.
  • Page 17: Parts Information

    90524-64 240 V ac Australian Plug 90524-65 Pan for 200g Scout II , 4.0" (10cm) dia. 77064-00 Pan for 400g and 600g Scout II , 5 x 5.75" (12.7cm x 14.6 cm) 300007-010 Weigh Below Hook 5227-04 200g Calibration Mass (200g and 400g Scout II )
  • Page 18: Specifications

    SPECIFICATIONS Capacity (g) 1200 6000 Readability (g) 0.01 Weighing modes g, oz, oz t, dwt, pc g, oz, ozt, dwt, lb, pc Repeatability (std. dev.) (g) 0.01 Linearity (g) ±0.01 ±0.1 ±0.1 ±0.1 ±1 Tare range To capacity by subtraction Over range capacity 103% Stabilization time (seconds)
  • Page 19 SPECIFICATIONS Capacity (g) 4000 Readability (g) 0.01 0.002 Weighing modes g, oz, oz t, g, oz, oz t, ct, g, oz t, g, oz, oz t, dwt, pc dwt, pc, lb dwt, gn, pc dwt, ct, pc taels (3), oz Repeatability (std.
  • Page 20: Warranty

    Ohaus. In lieu of a properly returned warranty registration card, the warranty period shall begin on the date of shipment to the authorized dealer. No other express or implied warranty is given by Ohaus Corporation.
  • Page 21 Ohaus Corporation 29 Hanover Road, Florham Park, NJ 07932, USA Tel: (973) 377-9000 Fax: (973) 593-0359 With offices worldwide. www.ohaus.com P/N 80’250’829 © Ohaus Corporation 2000, all rights reserved.
  • Page 22 Betreiben eines Funkgerätes in unmittelbarer Nähe des Gerätes kann eine Beeinflussung des Anzeigewertes verursacht werden. Nach Ende des Störeinflusses ist das Produkt wieder In the event the balance fails to operate properly, please bestimmungsgemäss benutzbar. call Ohaus Corporation toll-free at (800) 526-0659 for ser- vice or parts. INSTALLATION DESCRIPTION...
  • Page 23 Pan Installation OPERATION Place the pan over the pan support as shown in the illustration. Turning the Balance ON Press ReZero On. All segments will appear briefly followed by a soft- ware revision number and then . Allow 5 minutes warm-up time. PAN SUPPORT LOW BATTERY INDICATOR...
  • Page 24 If you require replacement parts or would like to purchase accessories, Gold anodized aluminum, 2.25 x 3.00 x 0.75”/ please call Ohaus Corporation toll-free at (800) 526-0659. An Ohaus Prod- 5.71 x 7.62 x 1.90 cm 5077-00 uct Parts Specialist will be available to help you.
  • Page 25: Limited Warranty

    Ohaus. In lieu of a properly returned war- ranty registration card, the warranty period shall begin on the date of shipment to the authorized dealer.
