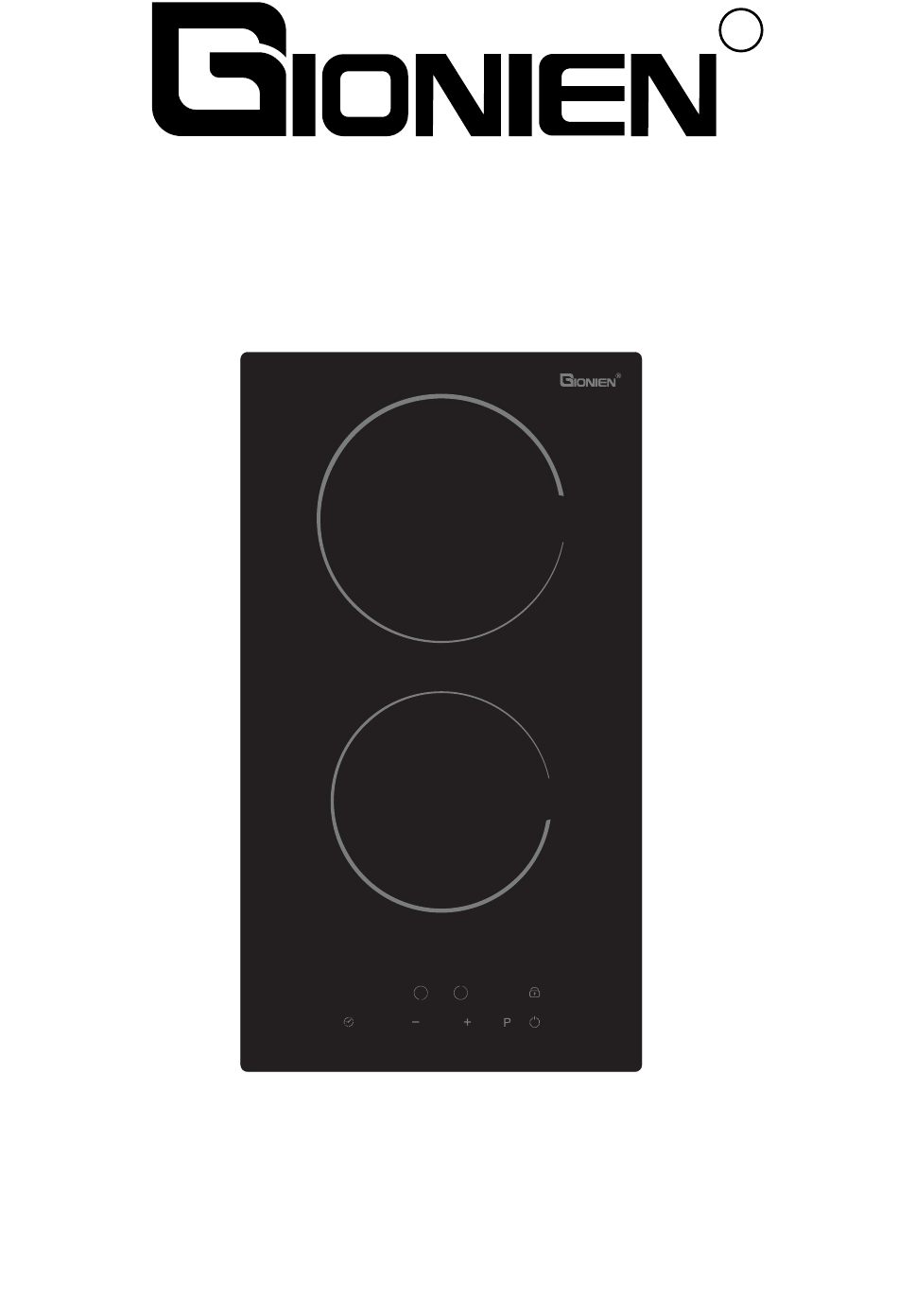

- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: GITS352G3-US I N D U C T I O N I N D U C T I O N...
-
Page 2: Safety Warnings
Safety Warnings Your safety is important to us.Please read this information before using your cooktop. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction.Children being supervised not to play with the appliance.Cleaning and user maintenance... - Page 3 That the appliance is not intended to be operated by means of external timer or separated remote-control system. Danger of fire:Do not store items on the cooking surfaces. CAUTION:The cooking process has to be supervised.A short term cooking process has to be supervised continuously.
-
Page 4: Product Overview
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. -
Page 5: User Interface
Heating zone Power Max.Power Heating Zone （220-240V~ 50/60Hz） 1200W/1500W（Booster）(230~) 2000W/2300W（Booster）(230~) Total Rating Power 3500W(230~) (GITS352G3-US) User interface Reference Description Zone select key Child lock key ON/OFF key Power regulating key(reduce) Power regulating key(increase) Timer key Boost control key... -
Page 6: Heat Settings
Heat Settings The settings below should only be taken as a guide. The power of the induction coils will vary depending on the size and material of the pan. For this reason it is possible that the settings will need to be adjusted slightly to suit your pans. - Page 7 Hints and Tips Problem What to do Possible causes The hob cannot No power. Make sure the hob is connected to the power supply and that it be turned on. is switched on. Check whether there is a power outage in your home or area. There may be a slight The touch Make sure the touch control...
-
Page 8: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe,advanced,efficient and economical cooking technology.It works by electromagnetic vibrations generating heat directly in the pan,rather than indirectly through heating the glass surface.The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 9: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking.Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test.Move a magnet towards the base of the pan.If it is attracted,the pan is suitable for induction. -
Page 10: Using Your Induction Hob
Using your Induction Hob To start cooking 1. Touch the ON/OFF key(C)” ”for 3 seconds. After power on,the buzzer beeps once,all displays show “– “,indicating that the induction hob has entered the state of standby mode. 2. Place a suitable pan on the cooking zone that you wish to use. -
Page 11: When You Have Finished Cooking
When you have finished cooking 1. Touching the relevant zone select key(A)“ ”that you wish to switch off. 2. Press the power regulating key(D) “ ”control to “0” level. 3. Beware of hot surfaces “H” will show which cooking zone is hot to touch.It will disappear when the surface has cooled down to a safe temperature.It can also be used as an energy saving function if you want to heat further pans,use the hotplate that is still hot. -
Page 12: Over Temperature Protection
When the hob is in the lock mode, all the controls are disable except OFF,you can always turn the hob off with the OFF control in an emergency,but you shall unlock the hob first in the next operation Over-Temperature Protection A temperature sensor equipped can monitor the temperature inside the Induction hob.When an excessive temperature is monitored,the Induction hob will stop operation automatically. -
Page 13: Using The Timer As A Minute Minder
Using the Timer as a Minute Minder If you are not selecting any cooking zone 1. Make sure the cooktop is turned on. Note: you can use the minute minder even if you’re not selecting any cooking zone. 2. Touch the Timer key(F)“ ”.The minder indicator will start flashing “10”,and you can set the timer at this point. -
Page 14: Setting The Timer To Turn One Or More Cooking Zones Off
Setting the timer to turn one or more cooking zones off If the timer is set on one zone: 1. Select the relevant cooking zone which is working by touching the zone select key (A) “ ”. 2. Press the Timer key(F)” ”,the minder indicator will start flashing “10”... -
Page 15: Failure Display And Inspection
The above are the judgment and inspection of common failures.Please do not disassemble the unit by yourself to avoid any dangers and damages to the ceramic hob and please contact the supplier. Technical Specification GITS352G3-US Cooking Hob Cooking Zones 2 Zones... -
Page 16: Selection Of Installation Equipment
Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use,a minimum of 5 cm space shall be preserved around the hole.Be sure the thickness of the work surface is at least 30 mm.Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. - Page 17 A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob,make sure that • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant material. •...
- Page 18 Installation I N D U C T I O N fig.3 I N D U C T I O N fig.4 Do not use adhesive to fix the hob into the worktop.Once the seal is fitted position the hob into the cutout in the worktop. Apply gentle downwards pressure onto the hob to push it into the worktop ensuring a good seal around the outer edge (fig.
-
Page 19: Connecting The Hob To The Mains Power Supply
Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service.Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher,fridge,freezer, washing machine or clothes dryer,as the humidity may damage the hob electronics. - Page 20 This appliance requires a 32 Amp Miniature Circuit Breaker. • If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents. • If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
- Page 21 GIONIEN E-mail: support@gionien.shop Web: www.gionien.shop...
