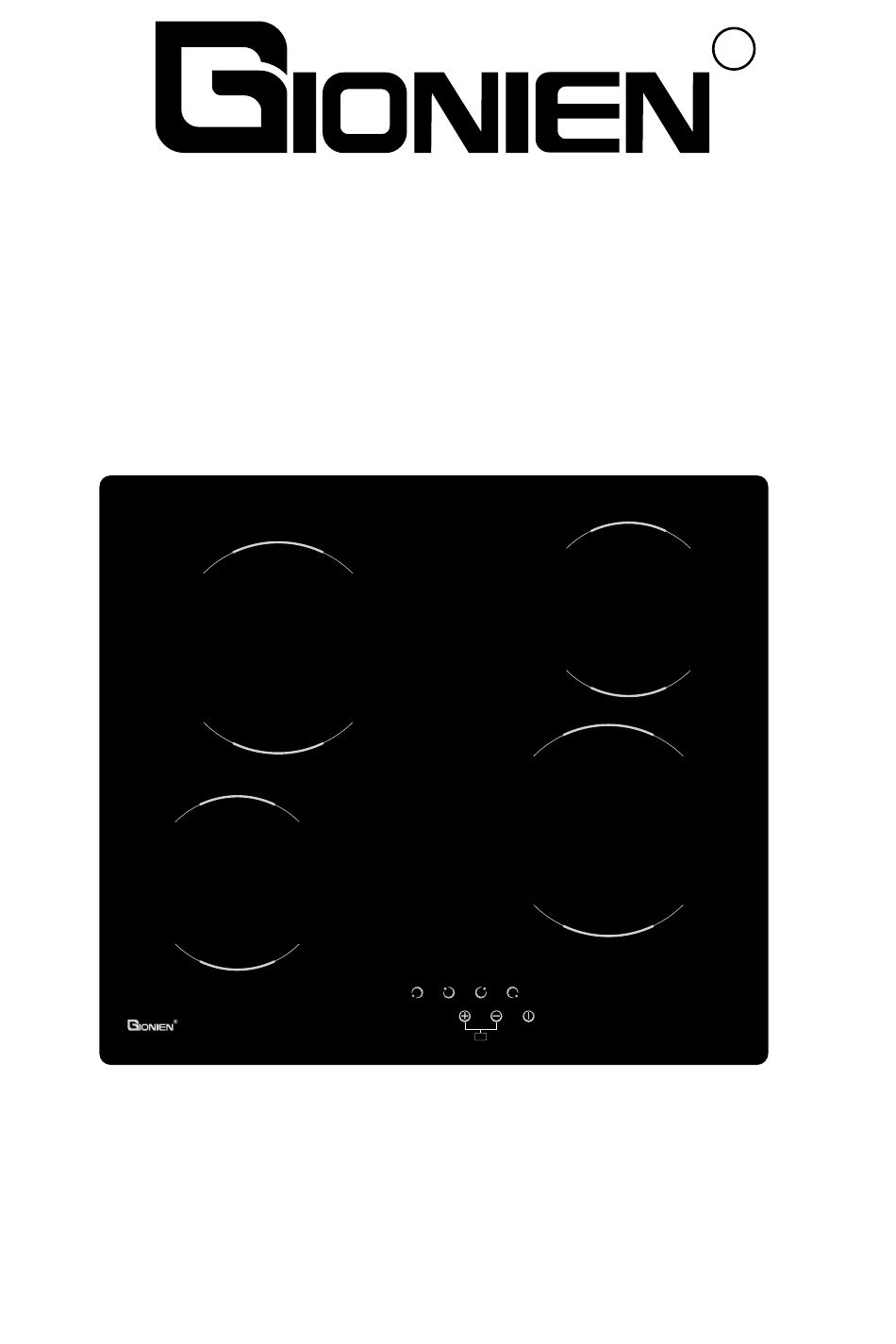

- Page 1 Ceramic Hob Instruction Manual / Installation Manual MODEL: GCE460TC T im e r...
- Page 2 Before you start To avoid the risks that are always present when yo u use an electrical appliance it is important tha t this appliance is installed correctly and that you read t he safety instructions carefully to a void misuse and hazards.
- Page 3 These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
- Page 4 Damaged power cables should be replaced by a competent person or qualified electrician. Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable. Do not allow the electric cables to touch the hot ...
-
Page 5: Product Functions
Product functions > The ceramic hob caters for all kind of cooking, with its radiant heat cooking zones and its electronic touch controls and multi-functions, making it the ideal choice for the modern family. > The ceramic hob is extremely user-friendly, durable and safe. Special functions Protection from over-heating >A sensor monitors the temperature in the cooking zones. -
Page 6: Operation
Operation Timer Reference Description Zone position Power regulating key (reduce) Power regulating key (increase) ON / OFF Touch sensitive keys. All operations can be performed using touch sensitive keys (capacitive sensors) located on the front of the ceramic glass (control panel). Each key has a corresponding display. All actions are confirmed by an audible bleep. -
Page 7: Preparation Before Use
Preparation before use > When the power is switched on, the buzzer will sound once and all the indicators will switch on for one second and then switch off. The hob is now in standby mode. Place the pan in the centre of the cooking zone. Operating instructions Caution •... - Page 8 T o lock the controls Simultaneously press the "-" key and the furthest right zone selection key The hob emits a beep and The indicator will show “Lo “. T o unlock the controls 1. Simultaneously press the "-" key and the furthest right zone selection key(A) again.
-
Page 9: Heat Settings
Heat Settings The settings below should only be taken as a guide. The temperature of the cooking zones depends on the power level selected, and is electronically regulated. This controls the "timing" of a cooking zone, switching the element on and off. With deep pans, larger quantities or when cooking without a lid, a higher setting is required. -
Page 10: Care And Maintenance
Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, contact customer services. Description Care and maintenance Care Damaged power cables should be replaced by a competent person or qualified electrician. For domestic use only. Never place an empty pan on the hob as this will cause an error message to appear on the control panel. - Page 11 Care and maintenance Appliance cleanliness Caution • Avoid rubbing with any abrasive or with the base of the pans, etc, as this will wear the markings on the top of the ceramic hob over time. • Clean the ceramic hob on a regular basis to prevent the build up of food residue.
-
Page 12: Troubleshooting
Troubleshooting Before calling the customer services, please check that the appliance is correctly connected, any of the following cases are not covered by the guarantee > Damage caused by improper use, storage or maintenance. > Damage caused by unauthorised disassembly and repair. - Page 13 The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. This product must be handed over to an electric and electronic equipment collection point for recycling. On ensuring that this product is disposed of correctly, you will help to avoid possible negative consequences for the environment and public health, which could occur if this product is not handled correctly.
- Page 14 Direct Connection If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts. If the cable is damaged or to be replaced, the operation must be carried out the by a qualified electrician with dedicated tools to avoid any accidents.
- Page 15 The connection point must be placed in a position adjacent to the appliance so as to be readily accessible for an engineer in the event of a breakdown. Disconnect the appliance from the mains supply before carrying out any kind of maintenance or cleaning. Caution The surface of the appliance becomes quite hot when operating.
-
Page 16: Hob Installation
Hob installation Caution The ceramic hob must be installed by a suitably qualified person. Never try to install the appliance yourself. The ceramic hob must not be installed above refrigerators, freezers, washing machines or tumble dryers. The wall and the area above the hob should be able to withstand heat. - Page 17 Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The gap between the hob and any cupboard above it should be at least 750mm. 750mm 750mm At least...
-
Page 18: Installation Instructions
Installation instructions Remove all the packing materials plus disposal statement. Caution Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The appliance should not be placed near anything that may echo. - Page 19 Cut out worktop to supplied dimensions shown in(fig 1)with suitable equipment and seal the cut edge as appropriate sealant. Timer...
- Page 20 [04] x 1 Remove the backing from the foam seal [04] and fit it along the underside edge of the hob, ensuring the ends overlap (fig. 1) Once the seal is fitted position the hob into the cutout in the worktop.
- Page 21 GIONIEN E-mail: support@gionien.shop Web: www.gionien.shop...
