Ingersoll-Rand ARO SHOCK BLOCKER SB10 Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
PULSATION DAMPENER WITH "AIR TAMER" AUTO ADJUSTMENT
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SHOCK BLOCKER DATA
Models . . . . . . . . . . . . . . . . . . . . . . . . . See Model Description Chart
Pulsation Dampener Type . . . . . Non-Metallic
Material . . . . . . . . . . . . . . . . . . . . . . . . See Model Description Chart
Weight
SB10D-XXS-X . . . . . . . . . . . . . . . 8 . 6 lbs (3 . 9 kgs)
SB10K-XXS-X . . . . . . . . . . . . . . . . 9 . 0 lbs (4 . 1 kgs)
SB10P-XXS-X . . . . . . . . . . . . . . . . 8 . 4 lbs (3 . 8 kgs)
Maximum Fluid Inlet Pressure . 100 psig (6 . 9 bar)
Maximum Air Inlet Pressure . . . 100 psig (6 . 9 bar)
Maximum Fluid Volume . . . . . . . 57 in .
Maximum Temperature Limits
Conductive Acetal . . . . . . . . . . -20° to 180° F (-29° to 82° C)
Glass Filled Polypropylene . . 32° to 175° F (0° to 79° C)
Hytrel® . . . . . . . . . . . . . . . . . . . . . -20° to 180° F (-29° to 82° C)
Polyurethane . . . . . . . . . . . . . . . -10° to 150° F (-23° to 66° C)
PVDF . . . . . . . . . . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Santoprene® . . . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . 3/8 - 18 NPTF - 1 (male)
Material Inlet / Outlet
SB10X-AXS-X . . . . . . . . . . . . . . . 1 - 11-1/2 NPT (female)
SB10X-BXS-X . . . . . . . . . . . . . . . 1 - 11 BSP (female)
Dimensional Data . . . . . . . . . . . . . . see page 7
Kits Available
66911-1 Air Tamer Automatic Air Pressure Adjustment Kit
66108 Mounting Pedestal
66885-1 Grounding Kit (for use with model SB10D-XDS-X,
includes 25' - 14 gauge wire) .
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 495-0276  FAX (800) 892-6276
arozone.com
SHOCK BLOCKER®
OPERATING OR SERVICING THIS EQUIPMENT.
for "-XXX-X"
3
(0 . 9 3 lit . )
© 2023 CCN 99877581

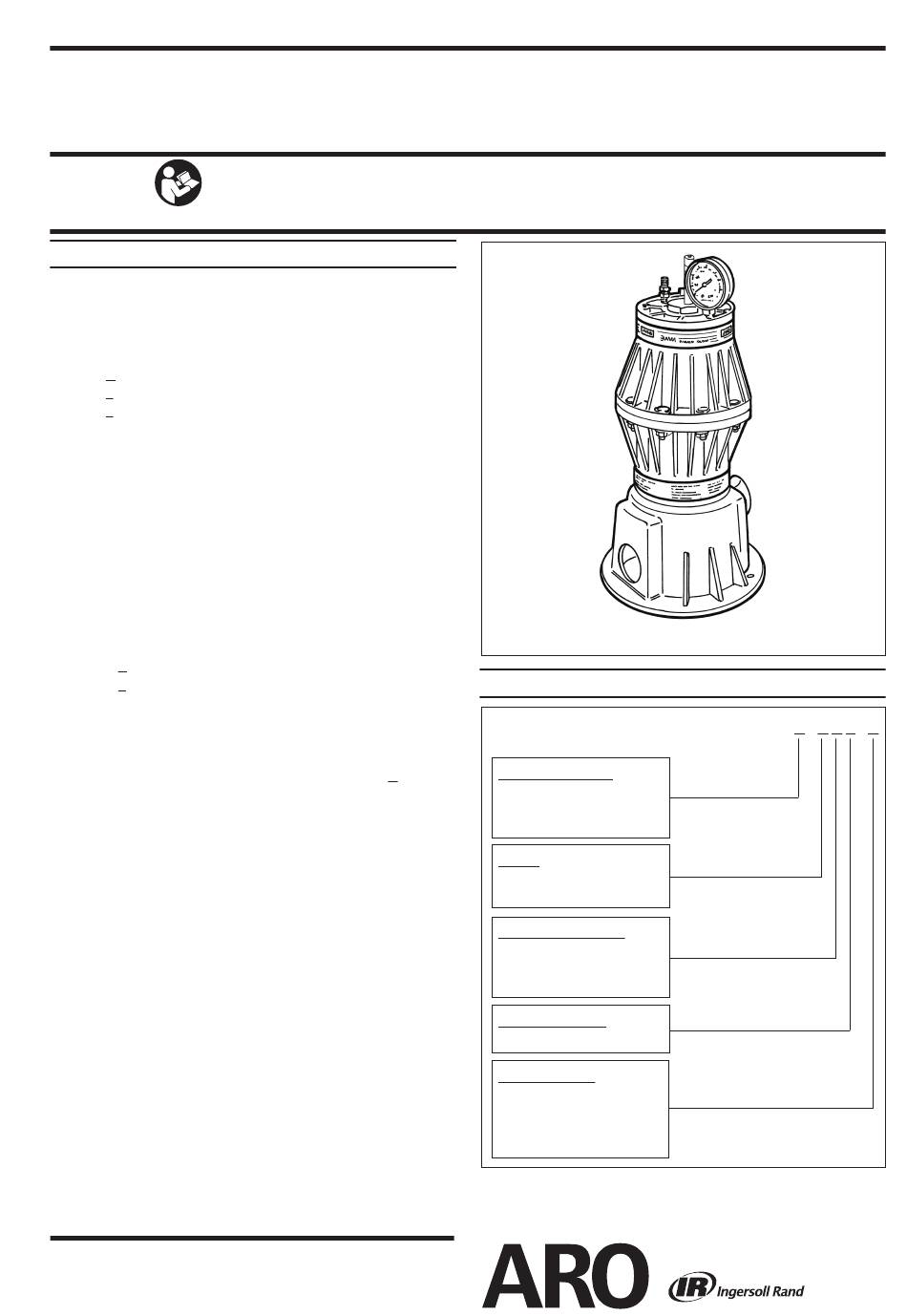

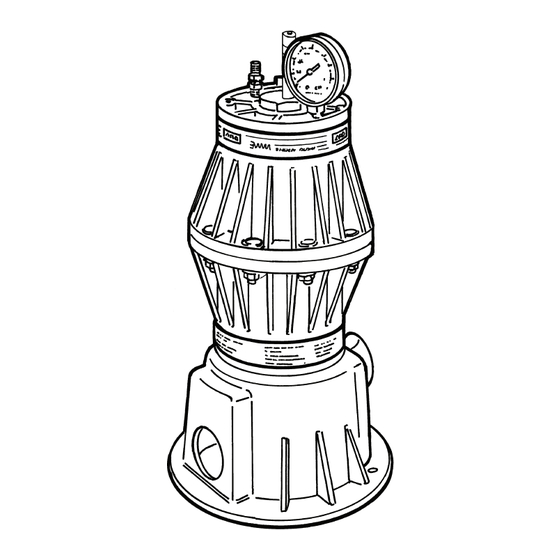

Figure 1
MODEL DESCRIPTION CHART
Air Section Material
D - Conductive Acetal
K - PVDF
P - Glass Filled Polypropylene
Thread
A - NPT
B - BSP
Fluid Section Material
D - Conductive Acetal
K - PVDF
P - Glass Filled Polypropylene
Hardware Material
S - Stainless Steel
Bladder Material
A - Santoprene
C - Hytrel
T - PTFE
U - Polyurethane
SB10X-X-X
RELEASED: 3-21-00
REVISED: 10-6-23
(REV: G)
SB10 X - X X S - X
