Operating Instructions
IR2D002
Inductive Ring Sensor
EN
Translation of the original operating instructions
Subject to change without notice
Available as PDF file only
Version 2.1
www.wenglor.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR2D002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wenglor IR2D002

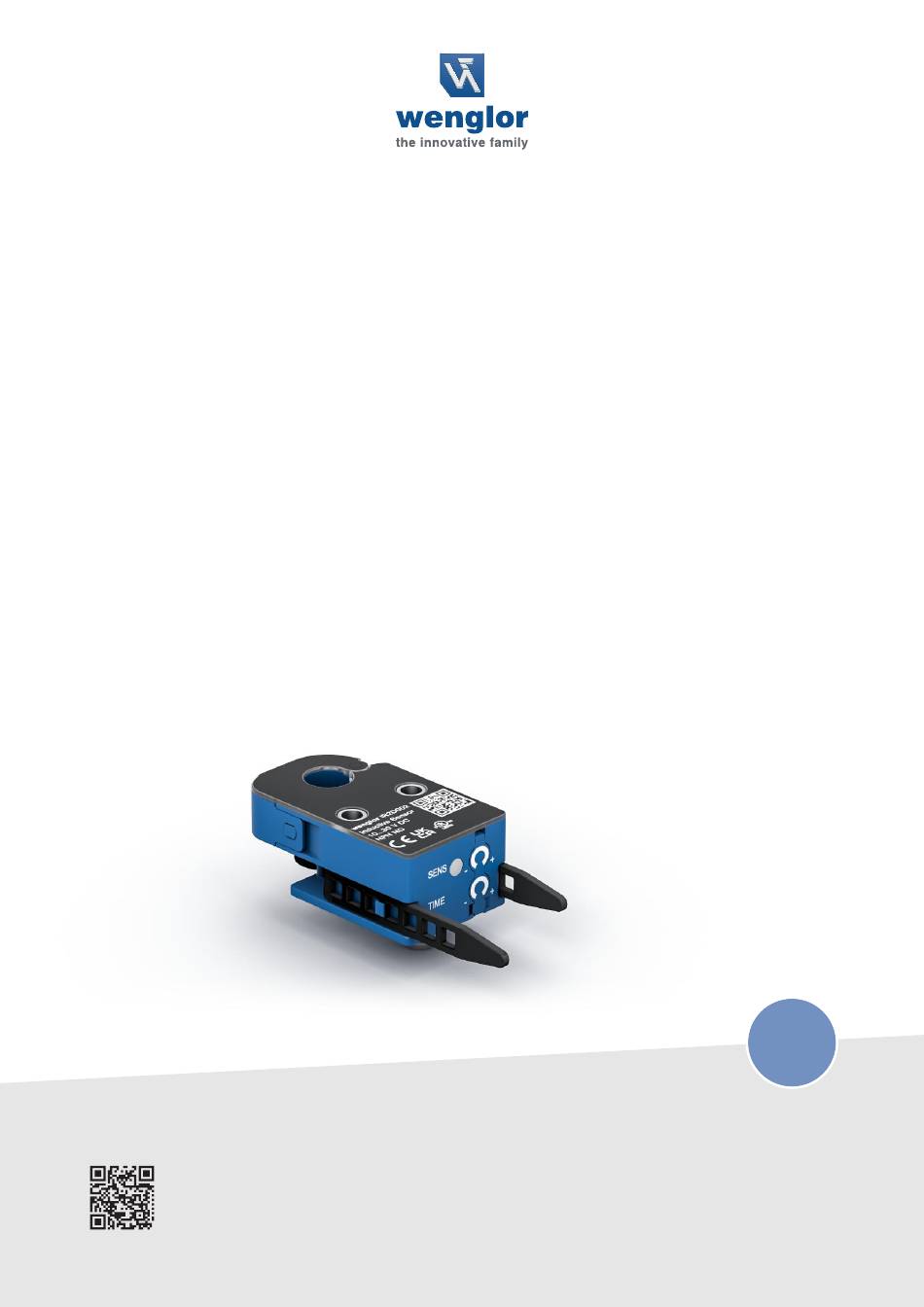

  • Page 1 Operating Instructions IR2D002 Inductive Ring Sensor Translation of the original operating instructions Subject to change without notice Available as PDF file only Version 2.1 www.wenglor.com...
  • Page 2: Table Of Contents

    7 Setup via IO-Link ................................20 8 Maintenance Instructions ............................. 21 9 Proper Disposal ................................22 10 Appendix ..................................23 10.1 Revision History ..................................23 10.2 Declarations of Conformity ..............................23 Table of Contents | IR2D002 ‒ Inductive Ring Sensor...
  • Page 3: General

    The safety precautions and warnings are laid out in accordance with the following principle: SIGNAL WORD Type and source of danger! Possible consequences in the event that the hazard is disregarded. à Measures for averting the hazard. 1 ‒ General | IR2D002 ‒ Inductive Ring Sensor...
  • Page 4: Limitation Of Liability

    • wenglor assumes no liability for printing errors or other inaccuracies contained in these operating in- structions unless wenglor was verifiably aware of such errors at the point in time at which the operat- ing instructions were prepared.
  • Page 5: Copyrights

    • All rights are reserved by wenglor. • Commercial reproduction or any other commercial use of the provided content and information, in particular graphics and images, is not permitted without previous written consent from wenglor. 1 ‒ General | IR2D002 ‒ Inductive Ring Sensor...
  • Page 6: For Your Safety

    • The product is not suitable for use in potentially explosive atmospheres. • The product may be used only with accessories supplied or approved by wenglor, or in combination with approved products. A list of approved accessories and combination products can be found at www.wenglor.com on the product detail page.
  • Page 7: Personnel Qualifications

    Read the operating instructions carefully before using the product. Protect the sensor against contamination and mechanical influences. Approvals and Protection Class IND. CONT. EQ 72HL / E189727 For use in class 2 circuits 2 ‒ For Your Safety | IR2D002 ‒ Inductive Ring Sensor...
  • Page 8: Technical Data

    Output Push-Pull Circiut NC/NO Pulse extension 200 ms Other parameters Sensitivity Error indicator Frequency switching Output Technical Safety Data MTTFd (EN ISO 13849-1) 1019,99 * Relates to a steel ball 3 ‒ Technical Data | IR2D002 ‒ Inductive Ring Sensor...
  • Page 9: Housing Dimensions

    68 = supply voltage indicator Complementary Products wenglor offers you the right connection and mounting technology as well as other accessories for your product. You can find this at www.wenglor.com on the product details page at the bottom. Scope of Delivery •...
  • Page 10: Transport And Storage

    • Protect the product against exposure to direct sunlight. NOTICE Risk of property damage in case of improper storage! The product may be damaged. à Storage instructions must be complied with. 4 ‒ Transport and Storage | IR2D002 ‒ Inductive Ring Sensor...
  • Page 11: Installation And Electrical Connection

    • Insert the soft binder on the hinge side (to pre- vent it from being lost) and thread it through the feed-through • Open the device’s hanger • Place the soft binder around the feed tube 5 ‒ Installation and Electrical Connection | IR2D002 ‒ Inductive Ring Sensor...
  • Page 12: Other Installation Options

    The maximum tightening torque when using an M4 mounting screw is 2.9 Nm. In addition, the minimum installation distance to metal (cf. Technical Data) must be maintained. 5.1.3 Installation Instructions Adjacent devices alternating between alternative frequency / without alternative frequency IR2D002 5 ‒ Installation and Electrical Connection | IR2D002 ‒ Inductive Ring Sensor...
  • Page 13: Smallest Recognizable Object

    Risk of personal injury or property damage due to electric current. Voltage-conducting parts may cause personal injury or damage to equipment. à The electric device may be connected by appropriately qualified personnel only. 5 ‒ Installation and Electrical Connection | IR2D002 ‒ Inductive Ring Sensor...
  • Page 14: Troubleshooting

    Risk of personal injury or property damage in case of non-compliance! The system’s safety function is disabled. Personal injury and damage to equipment may occur. à Required action as specified in case of fault. 5 ‒ Installation and Electrical Connection | IR2D002 ‒ Inductive Ring Sensor...
  • Page 15: Functions Overview

    The sensors are delivered from the factory with the maximum off-delay. Dynamic 1. Turn the potentiometer TIME counterclockwise to the desired time delay. LED symbols according to section LED Symbols [} 18] The on-delay is immediately active. See also 6 ‒ Functions Overview | IR2D002 ‒ Inductive Ring Sensor...
  • Page 16 Counter Max Value (Period): Configurable value that specifies the period length in relation to the counter Perioden Counter: Indicates the number of periods Counter Output Status: Indicates the switching behavior of the counter 6 ‒ Functions Overview | IR2D002 ‒ Inductive Ring Sensor...
  • Page 17 Figures 5 and 6 explain the “Compare mode 2” with a “Counter Compare Value” of 3 and a “Counter Max Value (Period)” of 5. Illustration 5: Compare mode 2 function - counting up Illustration 6: Compare mode 2 function - counting down 6 ‒ Functions Overview | IR2D002 ‒ Inductive Ring Sensor...
  • Page 18: Led Symbols

    Switching output active Green Yellow Device has been set to factory set- Blue** tings/alternative frequency switch- ing has been activated Not lit up Flashing 6 ‒ Functions Overview | IR2D002 ‒ Inductive Ring Sensor...
  • Page 19 Permanently lit up * Flashing behavior: 1 Hz 50 ms On to 950 ms Off ** Flashing behavior: 1 Hz 500 ms On to 500 ms Off 6 ‒ Functions Overview | IR2D002 ‒ Inductive Ring Sensor...
  • Page 20: Setup Via Io-Link

    Setup via IO-Link Process and parameter data can be found in the interface protocol at: www.wenglor.com - Products - En- ter the desired product number as a search term, then click on “Downloads” on the product page. Process Data: • Counter •...
  • Page 21: Maintenance Instructions

    Cleaning and inspection of the plug connections at regular intervals are advisable. Do not clean the sensor with solvents or cleaning agents that could damage the product. The product must be protected against contamination during initial start-up. 8 ‒ Maintenance Instructions | IR2D002 ‒ Inductive Ring Sensor...
  • Page 22: Proper Disposal

    Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 9 ‒ Proper Disposal | IR2D002 ‒ Inductive Ring Sensor...
  • Page 23: Appendix

    Switch to individual instructions and new design 20.12.2023 Expansion to include sensor group IR5xxxx 10.2 Declarations of Conformity Declarations of conformity can be found on our website at www.wenglor.com in the product’s separate download area. 10 ‒ Appendix | IR2D002 ‒ Inductive Ring Sensor...
