Viking Designer DCCG1304BSS Installation Manual
Designer freestanding 30” gas sealed burner range
Hide thumbs
Also See for Designer DCCG1304BSS:
- Planning and design manual (7 pages) ,
- Quick reference manual (2 pages) ,
- User manual (21 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Viking Designer DCCG1304BSS
Summary of Contents for Viking Designer DCCG1304BSS

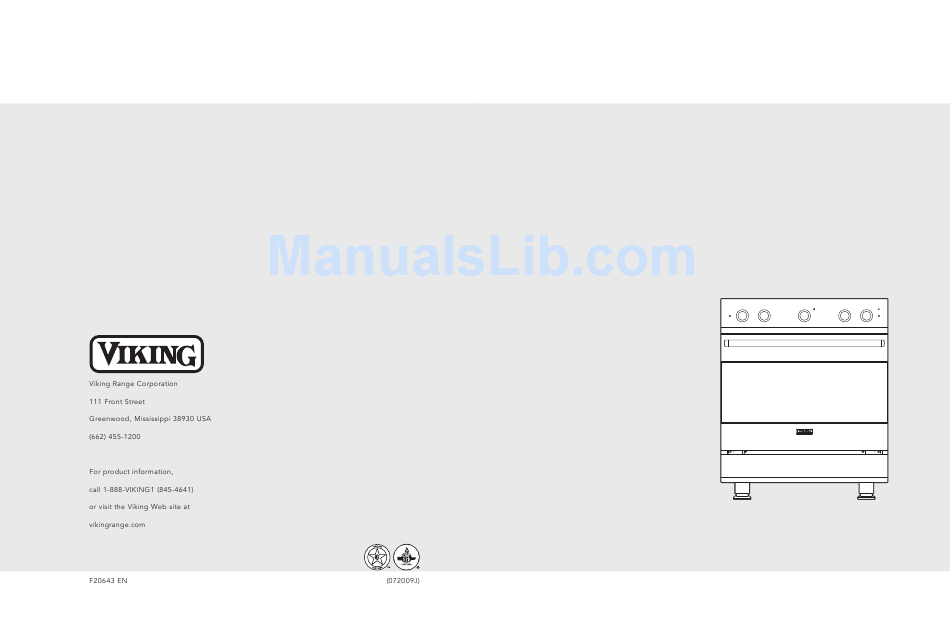

- Page 1 Viking Installation Guide ® Designer Freestanding 30” Gas Sealed Burner Range...
- Page 2 Read and Follow! DANGER WARNING CAUTION...
- Page 3 Read and Follow! shall be used if required by NFPA-70 (National Electric Code), federal/state/local DANGER DANGER laws, or local ordinances. If the use of a GFI is required WARNING DANGER WARNING WARNING DANGER...
- Page 4 25-3/4” (48.9 cm) 45” (114.3 cm) 24” Note: Unit shown with standard island trim. Description (67.3 cm) 1-1/2” (3.8 cm) (71.8 cm) 35-7/8” (91.1 cm) min. (63.5 cm) 37” (94 cm) max. (65.4 cm) (61.0 cm) Gas 30” W. Range...
- Page 5 ( 0 . CAUTION Note: Minimum clearance for back wall is 0” with backguard or high-shelf. Note: If a range hood is installed, wall cabinets above the range have a different minimum clearance height. Note: Minimum clearance for back wall is 0” with backguard or high-shelf.
- Page 6 WARNING 3-1/8” (7.9 cm) 2” dia. (5.1 cm) Gas connection in this area 24-7/8” 32” (81.3 cm) (63.2 cm) 2-1/2” (6.4 cm) 29-1/4” (79.3 cm) 1-7/8” (4.8 cm) Gas or electrical connection in this area 3-1/2” (8.9 cm)
- Page 7 CAUTION Refer to “Anti-tip Device Installation” section. NOTICE...
- Page 8 Note: It is strongly recommended Note: Legs should be installed near to where that a pallet or lift jack be used rather than tilting. appliance is to be used, as they are Raise unit about a foot. Unscrew temporary legs from not secure for long transit.
- Page 9 WARNING - 1 / - 1 / - 1 / ( 5 6 ( 5 6 ( 5 6 4 ” 4 ” 4 ” r e m r e m u r e a s u a s u ( .
- Page 10 ” ” ” 3 / 8 3 / 8 3 / 8 ( 0 . ( 0 . ( 0 .
- Page 11 1-1/2” (3.8 cm) 3/8” (0.95 cm)
