Viking Designer DSCD130-4B User Manual
Designer freestanding 30” dual fuel self-clean sealed burner range
Hide thumbs
Also See for Designer DSCD130-4B:
- Specifications (7 pages) ,
- Installation manual (2 pages) ,
- Install manual (14 pages)
Related Manuals for Viking Designer DSCD130-4B
Summary of Contents for Viking Designer DSCD130-4B

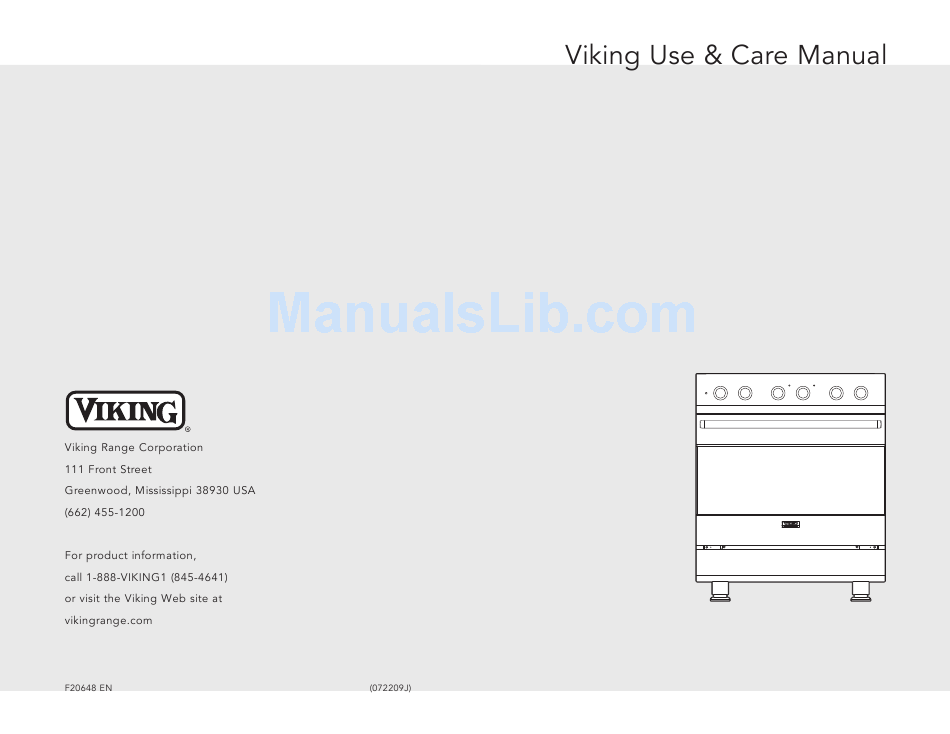

- Page 1 Designer Freestanding 30” Dual Fuel Self-Clean Sealed Burner Range...
- Page 3 WARNING DANGER WARNING WARNING CAUTION WARNING WARNING...
- Page 5 (cont.) (cont.)
- Page 6 WARNING WARNING WARNING WARNING CAUTION NOTICE CAUTION...
- Page 7 WARNING Note: DO NOT use commercial oven cleaners inside the oven. Use of these cleaners can produce hazardous fumes or can damage the porcelain finishes. DO NOT line the oven with aluminum foil or other materials. These items can melt or burn during a self-clean cycle, causing permanent damage to the oven.
- Page 8 Left Front Burner Oven Self-Clean Interior Oven Control Knob Temperature Indicator (16,000 BTU) Light Button Control Knob Light Left Rear Burner Oven Control Knob Temperature (12,000 BTU) Indicator Light Right Front Burner Control Knob (6,000 BTU) Right Rear Burner Control Knob (8,000 BTU) Note: For more information on oven functions see “Operation”...
- Page 9 *Note: The above information is given as a guide only. You may need to vary the heat settings to suit your personal requirements.
- Page 10 Note: When using big pots and/or high flames, it is recommended to use the front burners. There is more room in the front and potential cleanup at rear of appliance due to staining or discoloration will be minimized. Broil element TruConvec™...
-
Page 11: Oven Features
Oven Features... - Page 12 two-element bake TruConvec™ convection bake...
- Page 13 *Note: The above information is given as a guide only. *Note: The above information is given as a guide only.
- Page 14 convection roast *Note: This function uses a high-speed convection fan for optimum cooking performance. Some noise may be noticed from this high fan speed. This is normal. Note: You can also roast foods using bake settings. See the “Baking” section for additional information.
- Page 15 Note: The above information is given as a guide only.
- Page 16 convection broil *Note: This function uses a high-speed convection fan for optimum cooking performance. Some noise may be noticed from this high fan speed. This is normal. high broil Note: The above information is given as a guide only. medium broil...
- Page 17 low broil Note: Position 6 is the closest to the broiler and position 1 is the closest to the oven bottom.
- Page 18 CAUTION WARNING NOTICE Note: The above information is given as a guide only.
- Page 19 *Note: Rounded for easier measuring. Burner grate Burner Burner head Burner base * Note: When replacing burner head, make sure the tabs on the burner head line up with the notches in the burner base. Igniter...
- Page 20 Note: For stubborn stains, use a non abrasive cleanser such as Bon Ami™ and a soft brush or soft Scotch Brite™ pad. Cleaning Tip: For difficult to clean burner caps and heads, place parts in a zip seal bag with ammonia. CAUTION...
- Page 21 WARNING WARNING CAUTION...
- Page 22 WARNING WARNING Note: A fan noise will be heard during the self-clean cycle and will continue to run for the 3-1/2 hour duration of the self-clean cycle. Note: On griddle model ranges, the griddle/simmer plate will not function during the self-clean cycle.
- Page 23 WARNING...
- Page 25 DESIGNER SERIES FREESTANDING 30” DUAL FUEL RANGES WARRANTY...
