Expert Manufacturing Princeton PN3560CH Disassembly Instructions

Expert Manufacturing Inc.
Princeton

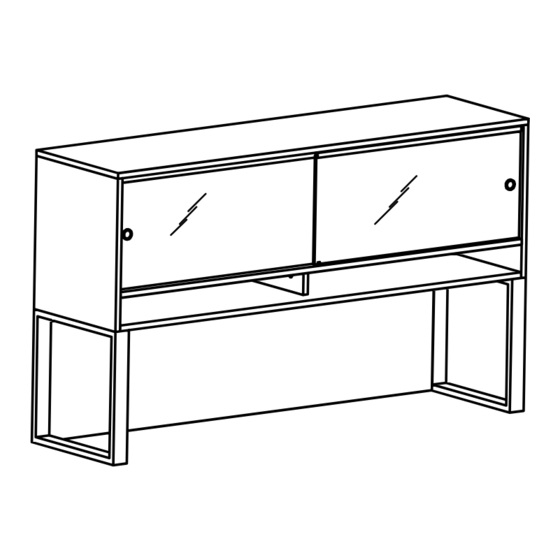

Hutch with metal
supports
Disassembly Instructions
Product designed for disassembly
in a reasonable time frame.(5 minutes or less)
ITEM DESCRIPTION
1 TOP PANEL
2 GABLE LEFT
3 GABLE RIGHT
4 UPPER DIVIDER
5 LOWER DIVIDER
6 FIXED SHELF
7 BOTTOM PANEL
8 UPPER BACK PANEL
9 LOWER BACK PANEL
10 BLUM CONNECTOR
11 BLUM SCREW
12 TITUS CAM
13 TITUS SCREW
14 METAL SUPPORTS
15 GLASS DOORS
16 HANDLE
17 RAIL FOR GLASS
18 DOUBLE RAIL
4
8
2
6
14
NOTE:Any alteration to listed components will void the manufacturer's warranty.The manufacturer will not be responsible for any damage or bodlly harm
caused by alterations in accordance with national or local electrical codes and manufacturer's specifications.In accordance with the manufacturer's policy
of continual product improvement, the product presented in this document is subject to change without notice or obligation.
QTY MATERIAL
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
28 STEEL
28 STEEL
11 STEEL&PLASTIC
11 STEEL
2 STEEL
2 TEMPERED GLASS
2 ALUMINUM
2 ALUMINUM
2 ALUMINUM
9 5

Required tools:

Phillips screwdriver size #2
Rubber mallet
Safety glasses
1
18
3
7
PN3560CH
17
15
16
Page 1 of 3
