Expert Manufacturing Princeton PN2972LF Disassembly Instructions

Expert Manufacturing Inc.
Princeton

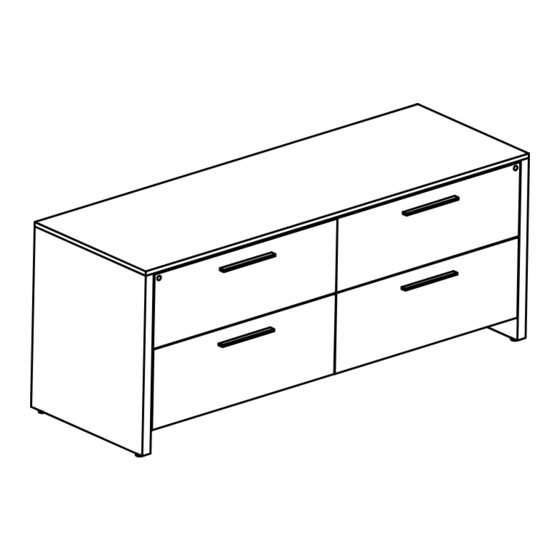

Credenza
Disassembly Instructions
Product designed for disassembly
in a reasonable time frame.(5 minutes or less)

ITEM DESCRIPTION

1 TOP PANEL
2 GABLE LEFT
3 GABLE RIGHT
4 BACK PANEL
5 BOTTOM PANEL
6 STRETCHER
7 DIVIDER
8 DRAWER FILE FRONT
9 DRAWER BOX
10 BLUM CONNECTOR
11 BLUM SCREW
12 TITUS CAM
13 TITUS DOWEL
14 ADJUSTABLE LEVELLER
15 T-NUT FOR LEVELLER
16 WOOD SCREW
17 HANDLES
18 SLIDES/PAIR
Please contact Expert Manufacturing service representative
at 905.738.7575 for any questions or concerns.
NOTE:Any alteration to listed components will void the manufacturer's warranty.The manufacturer will not be responsible for any damage or bodlly harm
caused by alterations in accordance with national or local electrical codes and manufacturer's specifications.In accordance with the manufacturer's policy
of continual product improvement, the product presented in this document is subject to change without notice or obligation.
QTY MATERIAL
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
1 PARTICLE BOARD
4 PARTICLE BOARD
4 PARTICLE BOARD
10 STEEL&PLASTIC(PolypropylenePP)
10 STEEL
20 STEEL
20 STEEL
7 STEEL&PLASTIC(PolypropylenePP)
7 STEEL&PLASTIC(PolypropylenePP)
48 STEEL
4 ALUMINUM
24 STEEL
7
4
18
2
6

Required tools:

Phillips screwdriver size #2
Rubber mallet
Safety glasses
5
PN2972LF
1
9
3
8
17
14
Page 1 of 2
