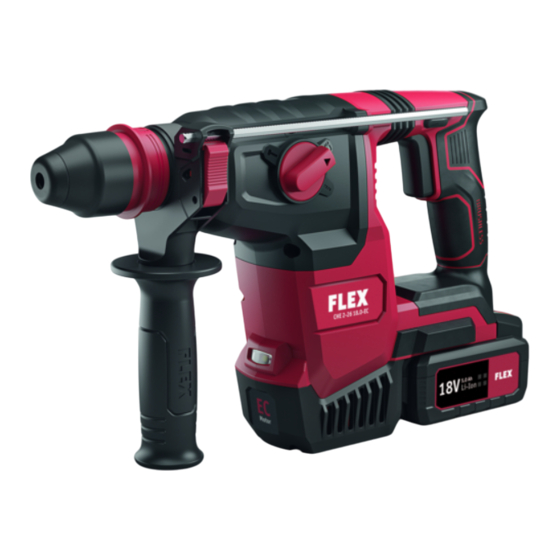

Flex CHE 2-26 18.0-EC Manual

Hide thumbs Also See for CHE 2-26 18.0-EC:
Table of Contents

Advertisement

Quick Links

Download this manual
CHE 2-26 18.0-EC
Contents
Symbols used in this manual . . . . . . . . 13
Symbols on the power tool. . . . . . . . . . . 13
Technical data . . . . . . . . . . . . . . . . . . . . 13
Overview . . . . . . . . . . . . . . . . . . . . . . . . 14
Important safety information . . . . . . . . . 15
Noise and vibration . . . . . . . . . . . . . . . . 17
Instructions for use . . . . . . . . . . . . . . . . 17
Maintenance and care . . . . . . . . . . . . . . 21
Disposal information . . . . . . . . . . . . . . . 21
conformity . . . . . . . . . . . . . . . . . . . . 22
Exemption from liability . . . . . . . . . . . . . 22

Symbols used in this manual

WARNING!
Denotes impending danger. Non-
observance of this warning may result in
death or extremely severe injuries.
CAUTION!
Denotes a potentially dangerous situation.
Non-observance of this warning may result
in injury or damage to property.
NOTE!
Denotes application tips and important
information.

Symbols on the power tool

Before switching on the power tool,
read the operating manual!
Wear protective goggles!
Wear ear defenders!
Use lightweight breathing
protection!
Disposal information for the old
machine (see page 21)!

Technical data

Rechargeable
hammer drill
Nominal voltage
Battery
No-load speed
No-load impact rate
Max. single impact
energy (according to
"EPTA procedure
05/2009")
Lubrication
Tool holder
Max. drill diameter
- concrete
- wood
- metal
Weight according to
"EPTA Procedure
01/2003" (without
battery)
Weight of battery 5.0 Ah kg
CHE 2-26
18.0-EC
V
18
AP 18.0 (5.0 Ah)
rpm
980
rpm
4,350
J
2.6
Grease
SDS-plus
mm
26
mm
30
mm
13
kg
3.18
0.72
13

Advertisement

Table of Contents
loading

Related Manuals for Flex CHE 2-26 18.0-EC

Summary of Contents for Flex CHE 2-26 18.0-EC

  • Page 1: Table Of Contents

    CHE 2-26 18.0-EC Contents Technical data Symbols used in this manual ..13 Symbols on the power tool... 13 Rechargeable CHE 2-26 Technical data ....13 hammer drill 18.0-EC...

  • Page 2: Overview

    CHE 2-26 18.0-EC Overview SDS drill chuck Auxiliary handle Slot for battery Keyless chuck LED lighting Locking sleeve For illuminating the working area. Spindle Rating plate * Depth stop Li-ion battery Rotary knob for operating mode State of charge indicator...

  • Page 3: Important Safety Information

    CHE 2-26 18.0-EC Important safety information Safety instructions for hammers  Wear ear defenders. The effect of noise may result in loss of hearing. WARNING!  Use auxiliary handles supplied with Read all safety instructions and general the power tool. The loss of control may instructions.
  • Page 4 CHE 2-26 18.0-EC  Always start drilling at low speed and with  Use only original batteries with the the bit tip in contact with the workpiece. voltage indicated on the type plate of At higher speeds, the bit is likely to bend if your power tool.

  • Page 5: Noise And Vibration

    CHE 2-26 18.0-EC Noise and vibration Instructions for use The noise and vibration values have been Before switching on the power tool determined in accordance with EN 60745. Unpack the power tool and accessories and The A-weighted noise level of the power tool check that no parts are missing or damaged.
  • Page 6 CHE 2-26 18.0-EC Battery state of charge Attaching the depth stop  Press the button to check the state of WARNING! charge at the state of charge indicator Remove the battery before carrying out any LEDs. work on the power tool.
  • Page 7  Pull the locking sleeve backwards (1.). – Middle: switch-on interlock (tool change, when working on the  Remove the cutting accessory (2.). power tool) Mounting keyless chuck NOTE! To fit a keyless chuck, the original adapter from the FLEX accessories range is required.
  • Page 8 CHE 2-26 18.0-EC Setting the operating mode  Move the operating mode rotary knob to symbol (3.). Make sure it audibly CAUTION! clicks into place. Do not change the operating mode until Switching on the power tool the power tool has come to a stop.

  • Page 9: Maintenance And Care

    CHE 2-26 18.0-EC Spare parts and accessories Chiselling 1. Insert the chisel. Other accessories, in particular cutting accessories, can be found in the 2. Move the operating mode rotary knob to manufacturer’s catalogues. symbol. Exploded drawings and spare-part lists can 3.

  • Page 10: Conformity

    EN 60745 according to the provisions of Directives 2014/30/EU, 2006/42/EC, 2011/65/EU. Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr 15.04.2019 FLEX-Elektrowerkzeuge GmbH Bahnhofstrasse 15, D-71711 Steinheim/Murr Exemption from liability...
