R volution PlayerOne Quick Start Manual page 8

6
2
3
1. LCD Screen
2. POWER ON/Sleep
1
1. Wi-Fi Antenna
2. Analog Audio Output Right / Left
3. Analog Video Output CVBS
4. Coaxial Digital Audio Output
5. Optical Digital Audio Output
6. Audio HDMI Output (Audio only)
7. Main HDMI Output (Video + Audio)
8. Restore
9. HDMI Input

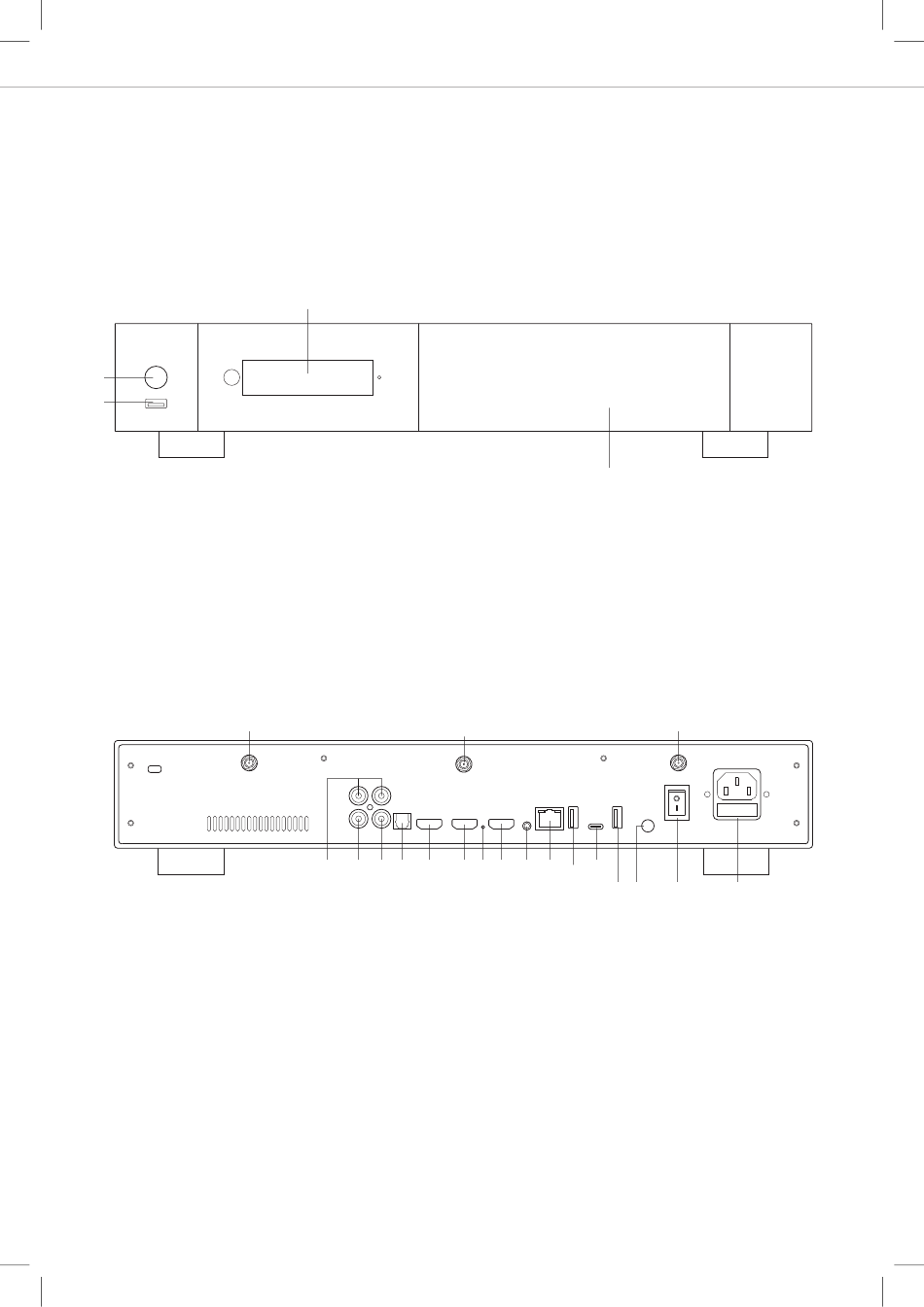

Front View
1
3. USB 2.0 Host
4. Door of the HDD Rack Enclosure
Rear View
16
2 3 4 5 6 7 8 9
4
10 11 12 13
1415
10. IR IN (IR extenter included)
11. LAN 10/100/1000
12. USB 2.0 Host
13. USB TYPE-C
14. USB 3.1 Host
15. Ground
16. RF Antenna
17. Power ON/OFF
18. Power Input
Quick Start Guide
1
17 18
