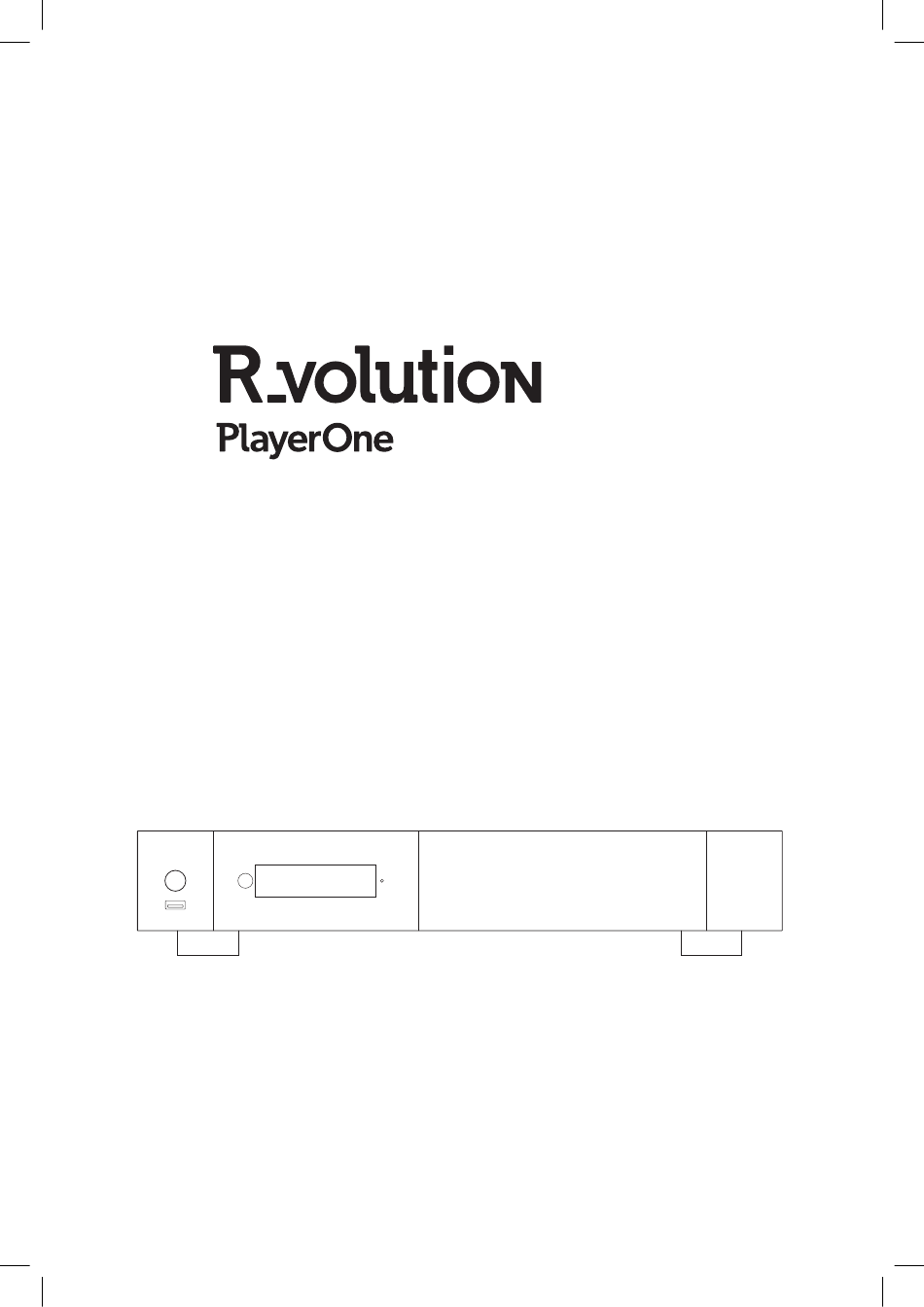

- Page 1 Quick Start Guide English...
- Page 2 Quick Start Guide...
- Page 3 Quick Start Guide Important Safety Instructions Getting More Information 1) Read and keep these instructions. Due to the regular evolution and the addition of new 2) Heed all warnings. functionalities, provided by firmware and software 3) Follow all instructions. updates, it is impossible to cover all functionalities in this 4) Do not use this apparatus near water.
-
Page 4: Table Of Contents
Quick Start Guide Table of Contents English Quick Start Guide 4 • General, Key Features 5 • Organize your Video Collection with Movie Covers 6 • Package Contents, HDMI Cable, IR Extender 7 • Exterior (Front view, Rear view), Programming buttons to control TV or other device 8 •... - Page 5 Quick Start Guide General The R_volution Player is a universal media player compatible with HDR10, HDR10+, Dolby Vision that offers Dual HDMI output, internal HDD rack enclosure and 3D capabilities. Key Features ● Processor: Realtek RTD1619DR ● Memory: 4GB RAM, 32GB flash ●...
-
Page 6: Organize Your Video Collection With Movie Covers
Quick Start Guide R_volution PlayerOne R_cloud/ R_server TMDB / R_video_DB Organize Your Video Collection With Movie Covers ● R_video Interface: Browse your movie and TV show collection with cover art and media informa- tion: (subtitles, actors, director, release date...). R_video features an automatic category index of movies and TV shows directly to the player, without requiring a computer. - Page 7 Quick Start Guide Package Contents 1. R_volution PlayerOne 2. IR Remote Control 3. IR Extender 4. RF Antenna 5. Wi-Fi Antennas 6. Power Cables NOTE: Additional items (optional) may be included into the package, depending on player configuration, region, and distributor.

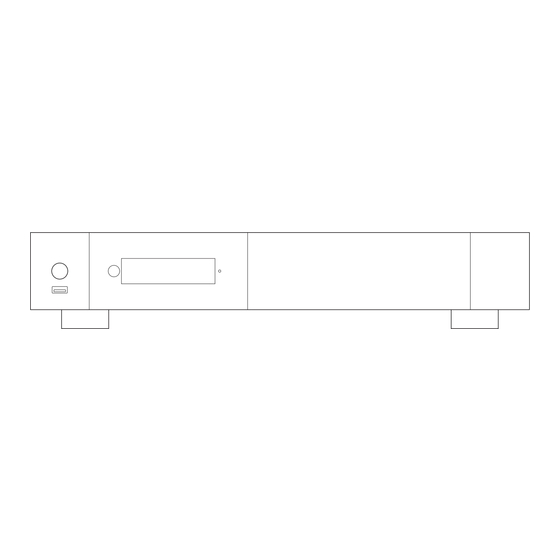

- Page 8 Quick Start Guide Front View 1. LCD Screen 3. USB 2.0 Host 2. POWER ON/Sleep 4. Door of the HDD Rack Enclosure Rear View 7 8 9 11 12 13 1415 1. Wi-Fi Antenna 10. IR IN (IR extenter included) 11.
- Page 9 Quick Start Guide Remote Control 1. LIGHT: Turn on the backlight of the remote control. 2. POWER: Toggle power ON/OFF . 3. TV SECTION: Programmable buttons to control TV or other external device; For more info, please refer to the previous page. 4-5.
- Page 10 Quick Start Guide Connecting Your Player to Your TV Without AV Receiver If you do not own an AV Receiver or sound bar, the most convenient and easy way is to connect your player directly to your TV. To do it, connect the main HDMI output of your media player to a free HDMI input of your TV or your front projector.
-
Page 11: Audio Coaxial And Optical
Quick Start Guide If your AV receiver is not compatible with 4K HDR, please use the HDMI Audio Only output as following: HDMI Cable HDMI IN If you get a BLUE SCREEN, HDMI IN it because you are using HDMI Audio Only instead of HDMI Main for the TV. - Page 12 Ethernet The media player provides two network connection methods: through Ethernet cable or through the built-in wireless LAN adapter. For the fastest and most stable network connection, we recommend using an Ethernet cable whenever possible. Plug one end of a network cable (straight Ethernet cable) into the LAN port on the back of the media player (Category 5E or more).
- Page 13 If you have a R_volution NAS or any other NAS, please connect the components as follows: R_volution PlayerOne Ethernet cable Internet Router / Modem 4K UHD / Blu-ray / DVD / CD Discs R_volution NAS...
- Page 14 Getting Started Make sure to use the HDMI OUT (main) and not HDMI IN output to connect your player to your TV or video projector. Plug in and turn on the player. The player will go through its initial start-up procedure (takes less than one minute).
- Page 15 Connecting USB Drives You can connect your USB drives to one of the External available USB ports. If you want to play video files, USB 2.0 is enough to support very high bitrate (up Drives to 480 Mbps) and more reliable than USB 3.0. If you want to transfer files, you can use the USB 3.1 If you are using an or USB Type-C ports.
- Page 16 Use the RC buttons UP, DOWN, LEFT, RIGHT, OK, RETURN to navigate through the player menu. Use the MENU RC button to show the list of available commands. Use the INFO RC button during playback to show the INFO panel (duration, resolution, framerate, bitrate, etc.). The Home Page features 2 main applications: Explorer, and Video.
-
Page 17: Accessing Network Drives And Access To The Player
Accessing Network Drives And Access To The Player This media player features a Samba client (SMB) to explore and playback your videos, pictures and music, located on your local network (NAS, computers, ...). The SMB Server is activated by default. You can access your media player entering \\R_VOLUTION in the explorer of your computer or using the media player IP address as following: \\192.168.1.15 (for instance). -
Page 18: How To Create A Movie Collection In R_Video
How to Create a Movie Collection in R_video Before starting, you must create a folder named MOVIE on your HDD. Then, place all your movies inside this folder. If you have TV shows, place them in a dedicated folder named TV SHOWS. Movies 1. - Page 19 R_video The homepage of R_video is composed of 2 parts. The left part /storage/HDD/Films offers access buttons to modules. By default, a number of modules Storage ID: 000000000000000 are displayed such as: ALL, MOVIES, SERIES, RECENT, CATE- GORIES, ... It is possible to delete or add modules using the MENU button on the remote control.
-
Page 20: How To Identify Unidentified Movies & Tv Shows
How to Identify Unidentified Movies & TV Shows Even if your files are not named correctly with the name of the film (or TV show), R_video can identify it but only if a R_video user previously identified it manually. If you are living in a country where R_video is not yet popular, which could happened often at the beginning, mostly if you are using a R_volution NAS Rip because the generated files are rarely named correctly. -
Page 21: Search Engine
Parental Control Parental code Please enter a 4-digit pin code. This code will allow you to lock your collection To tag a movie as Allow for children, select a movie (or a group and restrict access to movie tagged ‘‘Allowed for children’’. -
Page 22: Subtitle Display Options
Show Special Top Banner R_video is able to auto detect some formats and to add top banner such as 4K Ultra HD Blu-ray, Blu-ray or DVD. But it is also possible to add special top banners such as Director’s Cut, Special Edition, Disc 2, Bonus Disc, and many others. -
Page 23: Firmware Upgrade
Firmware Upgrade Usually, if a new firmware is available, you will be informed on the sartup of the player. To access the Firmware upgrade page and manually launch the update of firmware online, go to Setup > Miscellaneous > Firmware Upgrade. You will see the current firmware version. Click on Check Available Update. - Page 24 rvolution.com / rvolution.store...
