Viking Designer DEDO127 User Manual

Built-in oven products
Hide thumbs Also See for Designer DEDO127:

Advertisement

Table of Contents

See also: Installation Manual , Quick Reference Manual
®
Professional Performance for the Home
™

Advertisement

Table of Contents
loading

Related Manuals for Viking Designer DEDO127

Summary of Contents for Viking Designer DEDO127

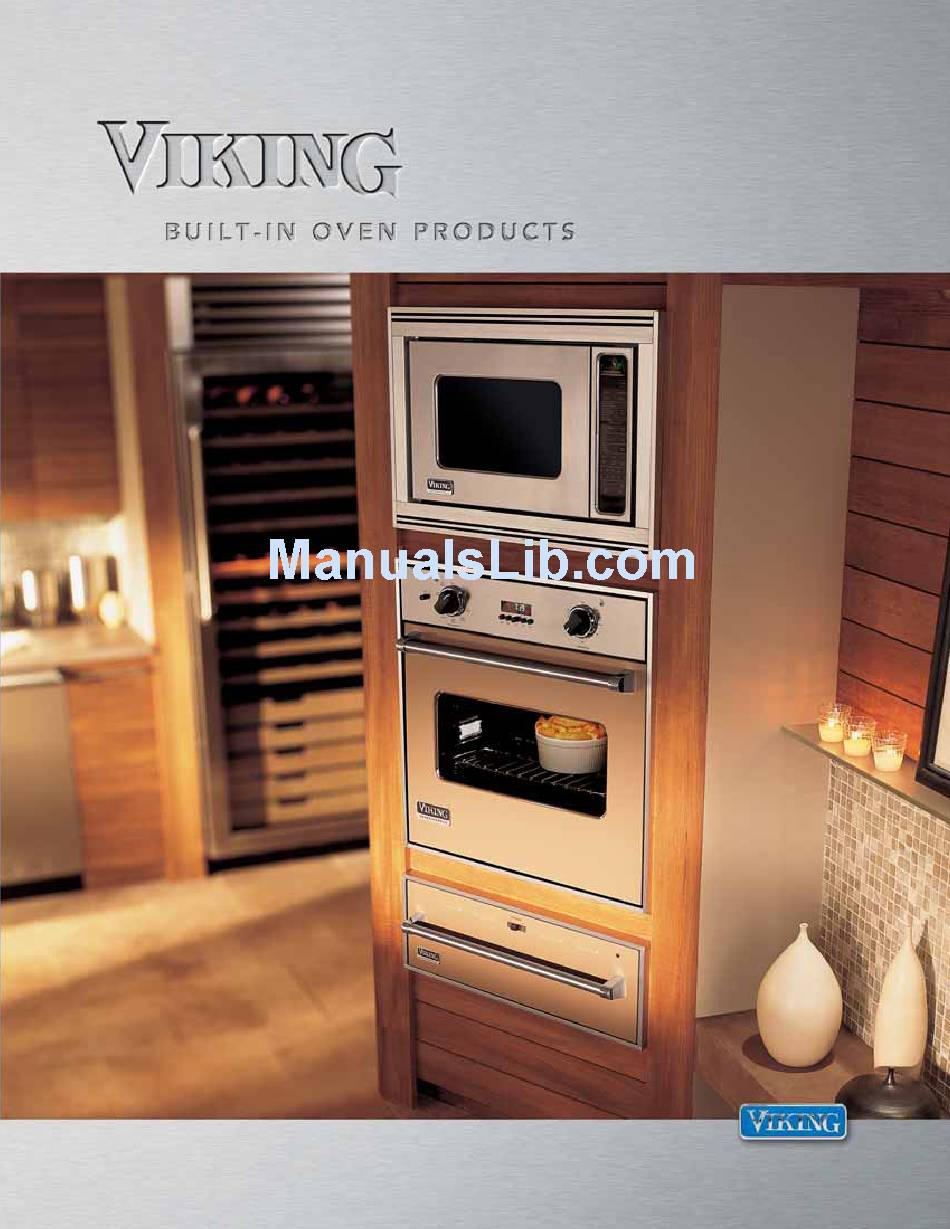

  • Page 1 ® Professional Performance for the Home ™...
  • Page 2 Viking kitchen. This is especially the case with our built-in oven products. They are designed to slip seamlessly into any cabinet, any place. As a result, cooking appliances fit perfectly just where you imagined.
  • Page 4 The Viking Professional Line of built-in oven products offers a heavy-duty commercial look and exceptional performance. Maitre d’ not included.

  • Page 6: Additional Accessories

    Viking introduced professional performance to the home nearly 20 years ago. And now the new Ultra-Premium line of Viking built-in electric ovens takes culinary performance to a new pinnacle. With the largest oven cavity, best convection system, and improved performance, these ovens raise the benchmark for ultra-premium kitchens.
  • Page 7 30" wide double ovens TruGlide Racks easily extend and With Rapid Ready Preheat, your oven is hold heavy items on any rack level ready when you are with one of the fastest with the help of roller bearing glides.
  • Page 8 TruConvec™ convection cooking with fan-forced air • Heat radiates from the convection element in the rear of the oven with no direct heat from the bottom or top elements Convection dehydrating with low heat and fan-forced air • Warm air circulated by a motorized fan causes water to evaporate from food Convection defrosting with fan-forced air only –...
  • Page 9 Single Single Double Built-in Undercounter Undercounter VESO166 – Electric 36" wide single oven in Stainless Steel Conventional broiling with Maxi-Broil or Mini-Broil offers an adjustable heating area to cook for two or an entire dinner party.

  • Page 10: Gas Ovens

    Gas ovens Cook just like your favorite chef – minus the commotion of clattering bus boys. Only Viking offers a true commercial-type gas oven for the home. And it offers all the professional power and ultra-premium features you could ever need. The restaurant quality 18,000 BTU Gourmet-Glo™...
  • Page 11 VGSO166-36” wide gas oven The 18,000 BTU infrared burner provides true commercial broiling power in a residential oven. Single Double in Two Single Side-by-side Built-in Cutouts with Optional Center Trim...

  • Page 12: Installation Options

    Combi steam/convect Breads, vegetables, meats – even your leftovers will be given new life in the Combi steam/convect™ oven. Steam cooking locks in moisture and nutrients – perfect for crisp, colorful vegetables and fresh, crusty breads. And convection cooks gently and evenly by circulating hot air, which does wonders for baking and broiling.
  • Page 13 VCSO244 – Combi steam/convect oven with 27" wide trim kit Steam cooks gently, locking in flavor and nutrients.
  • Page 14 It never fails. As dinner time approaches on a lazy Saturday, jovial – and no doubt, hopeful – friends pop over for a visit. A glass or two later, and everyone’s famished. But with the high speed convection oven at your disposal, you can handle impromptu dinner parties with style, taste, and speed.
  • Page 15 27" wide trim kit VHS0205 High Speed Convection VHS0205 High Speed Convection VHS0205 High Speed Convection Oven with 27" Wide Trim Kit Oven with 30" Wide Trim Kit Oven with 36" Wide Trim Kit (VHTK275) (VHTK305) (VHTK365)

  • Page 16: Warming Drawers

    Warming drawers Ten guests. A five-course meal. Two hands. Viking professional warming drawers offer much-needed assistance for ambitious menus. Temperature settings ranging from 90º to 250º F keep plates warm and soups steaming. And these warming drawers are perfect for proofing bread.
  • Page 17 VEWD103 – Electric 30" wide warming drawer in Stone Gray The warming drawer protects four plates of food from the elements and warms them for up to two hours.
  • Page 18 VMOS200 Microwave with 27" Wide Trim Kit (VMTK271) Spacious oven cavity 2.0 cubic ft. oven capacity 16" diameter turntable Interior light Installation options Place on countertop, in 30" wide or 36" wide multi-use chamber, or install as a built-in using a trim kit...
  • Page 19 VMOS200 – Microwave with 27" wide trim kit Spacious oven capacity allows you to cook for any size crowd.

  • Page 20: Convection Microwave

    VMOC205 Convection Microwave with 27" Wide Trim Kit (VMTK276) Spacious oven cavity 1.5 cubic ft. oven capacity 15 3/8" diameter turntable Interior light Installation options Place on countertop or install as a built-in using a trim kit Built-in trim kits designed to match with corresponding ovens and warming drawers (sold separately) •...
  • Page 21 VMOC205 – Convection microwave with 30" wide trim kit Broil, bake, and brown to perfection with four convection cooking settings.
  • Page 22 • 300 CFM • Unit shipped assembled to recirculate. May also be vented out the rear or vertically Spacious oven cavity 1.1 (31.2 liters) cubic ft. oven capacity 13" (33.0 cm) diameter turntable Interior light Installation options For use with Viking 24" or 30" wide non-grill cooking...
  • Page 23 VMWC172 VMWC102 27" Wide 30" Wide Multi-use Chamber Multi-use Chamber Multi-use Chamber VMOR205 – 30" wide convection microwave hood Multi-use chambers provide stylish storage for a microwave or other small appliances. VMWC162 36" Wide...
  • Page 24 The Designer Collection provides the same performance as the Professional Line, but with a strikingly streamlined contemporary look.

  • Page 26: Additional Accessories

    (convection features in top oven only of double ovens) Set the oven to begin cooking up to 24 hours later and shut off when cooking time is complete with the Timed Bake feature...
  • Page 27 DEDO530TSS – Designer Premiere electric 30" wide Touch Control double ovens DEDO127/DEDO130 DEDO527/DEDO530 DEDO127T/DEDO130T Select Electric Premiere Electric 27" & 30" Wide 27" & 30" Wide Electric 27" & 30" Wide Double Ovens Double Ovens DEDO527T/DEDO530T Touch Control Select Touch Control Premiere Electric 27"...

  • Page 28: Installation

    • For safety, the control panel can be locked to prevent unwanted operation Automatic descaling/cleaning display • Must use descaling cleanser provided with oven Functional oven cavity 1.1 cubic ft. (31 liter) stainless steel interior 2 racks/6 rack positions 1 3⁄4 qt.
  • Page 29 DCSO244 – Combi steam/convect oven with 30" wide trim kit The easy access water tank holds enough fresh water for two hours of steaming. Steam and convection heat enhance savory juices while browning meats.

  • Page 30: Optional Accessories

    Warming drawers Think of it as your silent sous chef. A Designer electric warming drawer proves indispensable when preparing for ambitious dinner parties. Equipped with moisture control and an expansive temperature range, it ensures every dish is served hot, fresh, and moist – or crispy, if the situation calls.
  • Page 31 DEWD101 – Electric 30" wide warming drawer in Stone Gray DFWD101 – Custom front models available in 27" or 30" widths DEWD171 27" Wide Warming Drawer Warming Drawer DEWD101 30" Wide...
  • Page 32 Warm/Hold feature keeps food warm for up to 30 minutes Child Lock safety feature locks the control panel to prevent unwanted operation Spacious oven cavity 2.0 cubic ft. oven capacity 16" diameter turntable Interior light Installation options Place on countertop, in 30" wide or 36" wide multi-use...
  • Page 33 DMOS200 – Microwave with 30" wide trim kit Warm/Hold feature keeps food fresh for late arrivals.
  • Page 34 DMOC205 Convection Microwave with 27" Wide Trim Kit (DMTK276) Spacious oven cavity 1.5 cubic ft. oven capacity 15 3/8" diameter turntable Interior light Installation options Place on countertop or install as a built-in using a trim kit Built-in trim kits designed to match with corresponding ovens and warming drawers (sold separately) •...
  • Page 35 DMOC205 – Convection microwave with 30" wide trim kit These microwaves are so smart, it’s like having a computerized chef prepare your meals.
  • Page 36 Convection microwave hood The Designer convection microwave hood provides convenient cooking features with the addition of built-in ventilation. The convection microwave oven offers real convection cooking to brown and crisp evenly, while the built-in exhaust system eliminates smoke and odors. Professional features...
  • Page 37 DMOR205 – 30" wide convection microwave hood They’re bigger than a breadbox, but smaller than a pantry. These multi-use chambers keep handy your favorite cooking tools, spices, and other knickknacks. Even your microwave. DMWC171 DMWC101 27" Wide 30" Wide Multi-use Chamber Multi-use Chamber...
  • Page 38 Option (BR) for nameplate and door handle/brackets Microwave trim kits, combi steam/convect oven trim kits, and high speed oven trim kits are available in Stainless Steel (SS) only Outdoor warming drawers are available in Stainless Steel (SS) only, and may be ordered with Brass Trim Option (BR) for...
  • Page 39 • PHK23-SS, PHK23-BR (for DFWD171 and DFWD101) • DHK18-SS, DHK18-BR (for DFWD171) • DHK20-SS, DHK20-BR (for DFWD101) Microwave trim kits and combi steam/convect oven trim kits are available in Stainless Steel (SS) All brass components have a durable, protective coating...
  • Page 40 AHAM Standard* – 3.6 cu. ft. Approximate Shipping 237 lb. (108 kg) Weight * The AHAM Standard for measuring oven capacity subtracts the door plug and convection baffle dimension from the total oven volume. VESO130/530 29 1/2" (74.9 cm) 28 1/2" (72.4 cm) –...
  • Page 41 Three racks, six rack positions Three racks, six rack positions Upper oven: Upper oven: Overall oven capacity – 4.2 cu. ft. Overall oven capacity – 4.8 cu. ft. AHAM Standard* – 3.6 cu. ft. AHAM Standard* – 4.1 cu. ft.
  • Page 42 Weight * The AHAM Standard for measuring oven capacity subtracts the door plug and convection baffle dimension from the total oven volume. E L E C T R I C 2 7 " A N D 3 0 " W I D E...
  • Page 43 Unit is equipped with No. 14 ground in unit Maximum Amp Usage 16.9 amps – 240VAC, 13.9 amps – 208VC Oven Interior Dimensions Width – 12 1/8" (31.3 cm), Height – 10 1/4" (26.0 cm), Depth – 15 1/2" (39.3 cm), Overall – 1.1 cu. ft. (31 L) Approximate Shipping Weight 73 lb.
  • Page 44 Unit is equipped with No. 14 ground in unit Maximum Amp Usage 16.9 amps – 240VAC, 13.9 amps – 208VC Oven Interior Dimensions Width – 12 1/8" (31.3 cm), Height – 10 1/4" (26.0 cm), Depth – 15 1/2" (39.3 cm), Overall – 1.1 cu. ft. (31 L) Approximate Shipping Weight 73 lb.
  • Page 45 Professional high speed convection oven Description Overall Width 21" (54.9 cm) Overall Height from Bottom 16" (42.9 cm) Overall Depth from Rear 24 5/8" (62.6 cm) Cutout Width Cutout Height Cutout Depth 22 3/4" (57.3 cm) Electrical Requirements 240 V, single phase, 60 Hz, AC only Maximum Amp Usage 3.2 kW, 15.0 amps...
  • Page 46 Basic specifications – Professional warming drawers E L E C T R I C 2 7 " , 3 0 " , A N D 3 6 " W I D E W A R M I N G D R A W E R S Description VGRT300 Overall Width...
  • Page 47 Designer warming drawers Description DEWD171 Overall Width 26 1/2" (67.3 cm) Overall Height DEWD: 10" (25.4 cm) DFWD: 10 1/2" (26.7 cm) Overall Depth DEWD: To front edge of trim – 24 1/2" (62.2 cm) To front edge of handle – 27" (68.6 cm) from Rear With door open –...
  • Page 48 Basic specifications – Professional microwave oven MICROWAVE OVEN Description VMOS200 Overall Width 24" (60.9 cm) Overall Height 13 3/8" (33.9 cm) Overall Depth 19 1/4" (48.9 cm) Cutout Width Cutout Height Cutout Depth Electrical Requirements 120VAC/60Hz Maximum Amp Usage 1.5 kW, 13.0 amps Oven Interior Width –...
  • Page 49 Professional convection microwave oven MICROWAVE OVEN Description Overall Width 24 5/8" (62.5 cm) 14 7/8" (37.7 cm) Overall Height Overall Depth 19" (48.3 cm) Cutout Width Cutout Height Cutout Depth Electrical Requirements 120VAC/60Hz Maximum Amp Usage 1.55 kW, 13.0 amps Oven Interior Width –...
  • Page 50 15 5/16" (38.9 cm) Electrical Requirements 120V, single phase, 60Hz, AC only Maximum Amp Usage 1.6 kW, 13.2 amps Oven Interior Width – 17 1/8" (43.5 cm) Dimensions Height – 8 1/16" (20.5 cm) Depth – 13 13/16" (35.1 cm) Overall Size –...
  • Page 51 Depth – 22 1/2" (57.2 cm) Width – 25" 3/4 (65.4 cm) Height – 15" (38.1 cm) Depth – 22 1/2" (57.2 cm) 105 lb. (47.3 kg) © 2007, Viking Range Corporation Specifications subject to change without notice. Microwaves Electric ovens Electric ovens...
  • Page 52 ® V i k i n g R a n g e C o r p o r a t i o n 1 1 1 F r o n t S t r e e t Greenwood, Mississippi 38930 USA ( 6 6 2 ) 4 5 5 - 1 2 0 0 F o r p r o d u c t i n f o r m a t i o n , c a l l 1 - 8 8 8 - V I K I N G 1 ( 8 4 5 - 4 6 4 1 ) ,...
