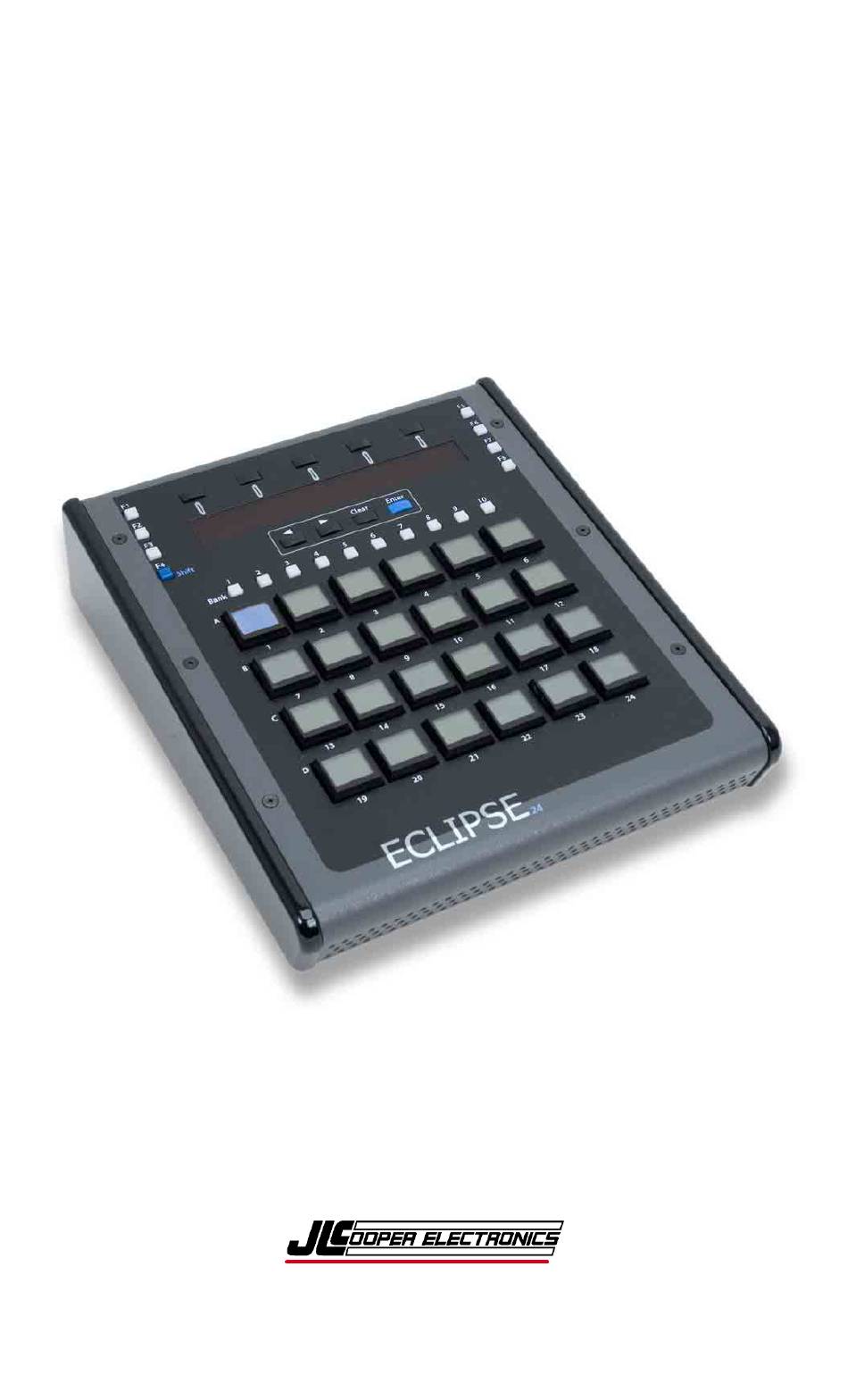

- Page 1 ECLIPSE M i d n i g h t F i n i s h C o m p a c t Ta c t i l e C o n t r o l S u r f a c e U s e r s M a n u a l...
- Page 2 Eclipse24 Midnight Finish and Eclipse24 are trademarks of JLCooper Electronics. All other brand names are the property of their respective owners. Eclipse 24 User’s Manual, First Edition Part Number 932120 2011 JLCooper Electronics, 142 Arena Street, El Segundo, CA 90245 USA (310) 322-9990 (310) 335-0110 www.jlcooper.com...
-
Page 3: Table Of Contents
Connecting the Eclipse 24 ............5 Self Test..................6 Technical Reference..............7 Electrical Connections..............7 Troubleshooting ................ 11 Care and Service............... 11 Configuring the Host Application..........11 RoHS Statement of Compliance ..........12 Declaration of Conformity ............13 JLCooper Electronics Factory Warranty......... 14... -
Page 4: Introduction
Introduction The Eclipse24 Midnight is a tactile control surface intended for clip playout systems. The unit features a 10/100 RJ-45 Ethernet connector and a DC power jack. The unit can be power from the supplied power adaptor or powered from 12 volts DC. An LED indicator shows status of Ethernet activity. -
Page 5: Installation
Installation Unpacking When you receive your Eclipse 24 Midnight, you should receive the following items: • Eclipse 24 Midnight • This Users Manual • Power Supply • Power Cord Please take a moment to register your product at: http://www.jlcooper.com This will allow us to notify you of important updates and changes to software or features. -
Page 6: Self Test
Self Test The Eclipse24 has a self test mode which aids in troubleshooting the controller. The self mode is accessed by pressing and holding Page 1 during power up. -
Page 7: Technical Reference
Technical Reference Electrical Connections The Eclipse24 can have a variety of interface options. Among these are: • Built In Ethernet Interface • MCS-3000 Series RS-422 Card #920465 • MCS-3000 Series RS-232 Card #920466 Built In Ethernet Interface The Ethernet Interface is intended for operation with a host computer. - Page 8 MCS-3000 Series RS-422 Interface Card The RS-422 Interface is intended for operation with a VTR, controller or a host computer. It provides the advantages of RS- 422, which allows for long cable runs. With low loss, low capacitance cable, the RS-422 Interface Card can accommodate cable runs up to 1km.
- Page 9 The RS-232 Interface has a male D-Sub connector. The port is configured to communicate at 1 start bit, 8 data bits, 1 stop bit and odd parity. Five jumpers allow the port speed to be set for 38400, 19200, 9600, 4800 and 2400 bits/sec to accommodate various situations.
- Page 10 3 amps. The unit comes with a p r supply approp riate for the country in which the unit was sold. If you need a power supply specific to your location, please contact your local distributor or JLCooper Electronics. Location JLCooper Part Number North America Outside...
-
Page 11: Troubleshooting
Clean with a soft, damp cloth. Do not allow liquids, dust or other foreign matter to get inside the unit. There are no user-serviceable parts in the Eclipse24. Please refer to the JLCooper Electronics Limited Factory Warranty on the following page for detailed warranty and service information Configuring the Host Application Now that the IP settings of the Eclipse 24 have been set, the host application must be configured to connect to the Eclipse 24. -
Page 12: Rohs Statement Of Compliance
RoHS restricted substances above the homogeneous material concentration limit (Threshold Level) per the EU/RoHS directive effective July 1, 2006 and amending document(s). JLCooper Electronics products will meet MIL-I 45208. The Company is currently implementing procedures for ISO 9000:2000, after which feasibility research will begin for ISO 14000 considerations. -
Page 13: Declaration Of Conformity
Declaration of Conformity JLCooper Electronics declares that the product named below conforms to: Low Voltage Directive (LVD) 2006/95/EC (Superceded LVD73/23/EEC) on 16th January 2006. Low Voltage Directive (LVD) 73/23/EEC (Directive 73/23/EC has recently been the subject of a codification, requiring a new number) -
Page 14: Jlcooper Electronics Factory Warranty
JLCooper Electronics Factory Warranty JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty is non- transferable and the benefits apply only to the original owner. Proof of purchase in the form of an itemized sales receipt is required for warranty coverage.
