- Page 1 ECLIPSE M X L M o t o r i z e d F a d e r C o n t r o l S u r f a c e U s e r s M a n u a l...
- Page 2 Eclipse MXL is a trademark of JLCooper Electronics. All other brand names are the property of their respective owners. Eclipse MXL User’s Manual, Second Edition (July 16, 2015) Part Number 932132 © 2015 JLCooper Electronics, 142 Arena Street, El Segundo, CA 90245 USA :...
-
Page 3: Table Of Contents
Configuring the Ethernet Interface ..........8 Configuring the Host Application ..........16 Care and Service ................. 17 RoHS Statement of Compliance ..........18 Declaration of Conformity ............19 JLCooper Electronics Factory Warranty ......... 20 ... -
Page 4: Introduction

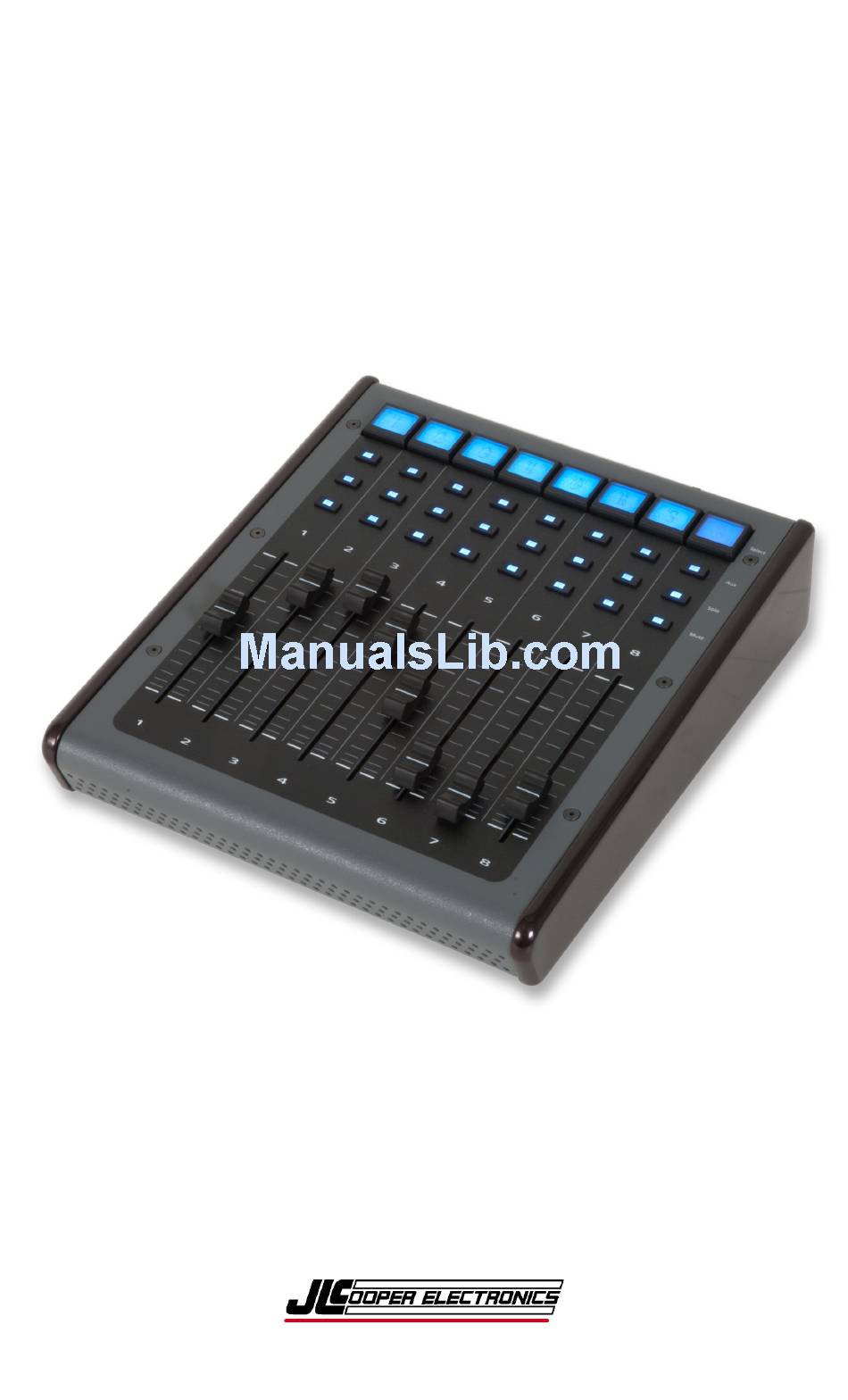

Introduction The Eclipse MXL is an audio level control panel with 8 touch sensitive, motorized faders, 8 graphic LCD pushbutton switches and 24 illuminated pushbuttons. The Eclipse MXL is a standalone controller for use with a computer based application. The unit connects to the host computer via the Expansion Slot. -
Page 5: Installation
Setup The compact design of the Eclipse MXL makes it easy to locate wherever you need it. The Eclipse MXL must be setup up in a location that does not experience vibration, excessive humidity, dust or temperature extremes. -
Page 6: Using Standalone With A Host Application
Before connecting the Eclipse MXL to the host computer, the unit must be configured to operate in the proper mode. The operational mode of the Eclipse MXL is set by the DIP switches on the rear of the unit. Note: Other applications may also use the Eclipse MXL as a controller, please consult the documentation of your application for configuration information. -
Page 7: Connecting The Eclipse Mx Standalone
Connecting an Eclipse MXL expander to your computer is straightforward. Simply install a JLCooper Compact Interface into the Expansion Slot and connect to your computer or network. The follow Compact Interface cards can be used with the Eclipse MXL: · RS-422/9PIN Compact Interface Card JLCooper Part Number 920444-1 ·... -
Page 8: Configuring The Ethernet Interface
Configuring the Ethernet Interface The Compact Ethernet Interface Card comes from the factory preconfigured to work in the Eclipse MXL. However, you will most likely need to configure the network settings to work on your network. 1. Access the configuration web page. The factory default address in 192.168.200.114. - Page 9 2. You will encounter a login dialog box. Leave the User name and Password blank and click OK.
- Page 10 3. To change your network settings, click the Network item on the left side of the browser window. Enter the desired IP Address, Subnet mask and Gateway in the approprate text boxes below. Click OK.
- Page 11 4. The Server settings can be left as is.
- Page 12 5. Click on the Serial Settings item on the left side of the browser window. Verify that the settings are the same as pictured below. If you have made any changes, be sure to click the OK button.
- Page 13 6. Click on the Connection item on the left side of the browser window. Verify that the settings are the same as pictured below. The Local Port is the TCP port, which the software uses along with the IP Address to connect to the unit. You can leave this at the default or change it to suit your needs.
- Page 14 7. To permenatly save any settings into nonvolatile memory, click on the Apply Settings item on the left side of the browser window.
- Page 15 8. The Ethernet Interface will save your settings into nonvolatile memory and will restart. This will take a minute or so. Your Eclipse MXL is now configured to use the Compact Ethernet Interface.
-
Page 16: Configuring The Host Application
Configuring the Host Application To configure and use the Eclipse MXL with the host application, please refer to applications documentation. -
Page 17: Care And Service
Care and Service If properly cared for, your Eclipse MXL should provide years of troublefree performance. While the Eclipse MXL is built in a rugged enclosure, please avoid dropping the Eclipse MXL. Clean with a soft, damp cloth. Do not allow liquids, dust or other foreign matter to get inside the unit. -
Page 18: Rohs Statement Of Compliance
RoHS restricted substances above the homogeneous material concentration limit (Threshold Level) per the EU/RoHS directive effective July 1, 2006 and amending document(s). JLCooper Electronics products will meet MIL-I 45208. The Company is currently implementing procedures for ISO 9000:2000, after which feasibility research will begin for ISO 14000 considerations. -
Page 19: Declaration Of Conformity
Declaration of Conformity JLCooper Electronics declares that the product named below conforms to: Low Voltage Directive (LVD) 2006/95/EC (Superceded LVD73/23/EEC) on 16th January 2006. Low Voltage Directive (LVD) 73/23/EEC (Directive 73/23/EC has recently been the subject of a codification, requiring a new number) -
Page 20: Jlcooper Electronics Factory Warranty
JLCooper Electronics Factory Warranty JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty is non-transferable and the benefits apply only to the original owner. Proof of purchase in the form of an itemized sales receipt is required for warranty coverage.
