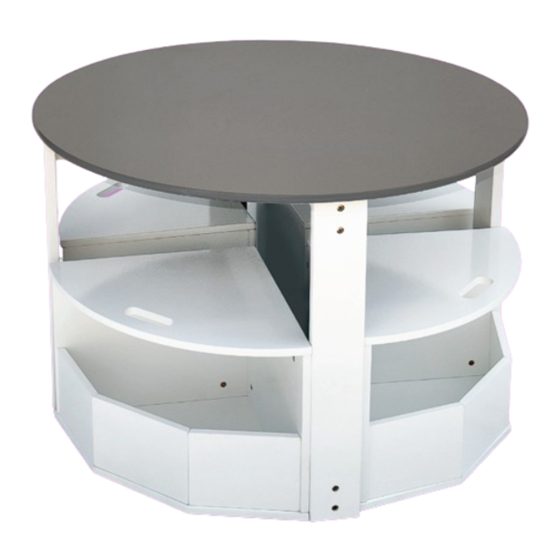

- Page 1 ROUND TABLE 4 STOOLS PROD UCT MA NUAL...
-
Page 2: We're Here To Help
Buyer assumes all risks and liability from misuse of this product and Milliard shall not... - Page 3 P A R T S 10” STOOL PANEL 10” STOOL PANEL STOOL BOTTOM 5” STOOL PANEL LEFT (X4) RIGHT (X4) (X4) CENTER (X4) 5” STOOL PANEL 5” STOOL PANEL STOOL TOP UPPER TABLE RIGHT (X4) LEFT (X4) (X4) SUPPORT (X2) LOWER TABLE SUPPORT (X2) TABLE LEGS (X4)
- Page 4 A S S E M B L Y Begin by assembling the stools. Take one of each 10” stool panel (1) and (2). Into the right stool panel (1), insert dowl nuts (B) into the holes on the wide sides and wood dowel pegs (C) into the inner holes on the narrow sides.
- Page 5 A S S E M B L Y Now you will attach the set of Secure the 5” stool panels to 5” panels to the stool bottom the 10” stool panels using using 3 long screws (F). another long screw (F) on each side.
- Page 6 A S S E M B L Y Now begin assembling the table. Wedge the upper table supports (8) into each other and the lower table supports (9) into each other. Note: the upper table supports have holes along the long edge for connecting to the tabletop;...
- Page 7 A S S E M B L Y Attach the brackets (H) on opposite sides of the lower table supports using short screws (K). As mentioned in step 8, the lower table supports have bracket holes in the center. Now it is time to attach the tabletop (11). Insert cam locks (I) into the holes in both the upper table supports and the tops of the table legs.
- Page 8 PHONE: 866-686-4891 EMAIL: info@milliardbrands.com...
