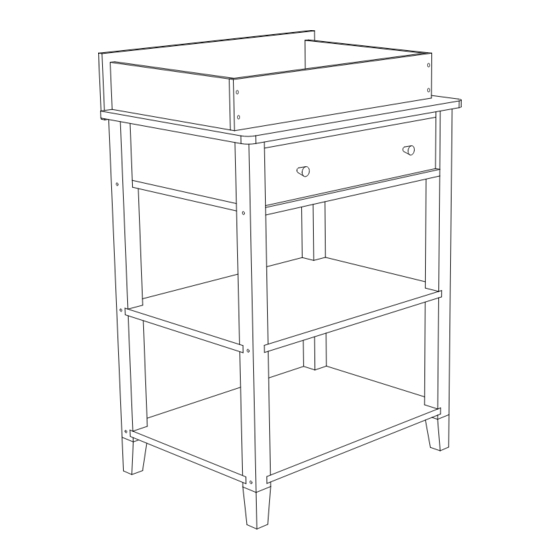

milliard Changing Table Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Ch anging Ta b l e
Congratulations on the purchase of your Changing Table!
PRECAUTION:
Always read and follow instructions before use | Always use the unit according to the
manufacturers guidelines | Only use the unit in a manner as intended by manufacturer.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Changing Table and is the answer not in the manual?

Questions and answers

Related Manuals for milliard Changing Table

Summary of Contents for milliard Changing Table

  • Page 1 Ch anging Ta b l e Congratulations on the purchase of your Changing Table! PRECAUTION: Always read and follow instructions before use | Always use the unit according to the manufacturers guidelines | Only use the unit in a manner as intended by manufacturer.

  • Page 2: We' Re H Er E To He L P

    SAFE SLEEPING. • NEVER ALLOW BABY TO SLEEP IN CHANGING AREA. Did your Changing Table come with any damaged or missing parts? WE’ RE H ER E TO HE L P WE’ RE H ER E TO HE L P Our team of dedicated customer care professionals are ready to help you with any questions or concerns you may have.
  • Page 3 CHANGING TABLE PARTS Back Right Leg Front Right Leg Front Left Leg Back Left Leg Right Side Panel Shelves x2 Left Side Panel Back Top Panel Drawer Shelf Front Strip...
  • Page 4 Dresser Top Drawer Bottom Panel Drawer Right Side Drawer Back Side Drawer Left Side Drawer Bottom Support Drawer Front Panel Changer Sides Panels x2 Changer Front Panel Changer Bottom Support Changer Back Panel Changer Bottom Panel...

  • Page 5: Hardwar E Pa Rts

    HARDWAR E PA RTS Dresser Side Drawer Rail x2 Cam Locks x26 Cam Screw Rail x2 Slotted Barrel Nut x28 Bolt x12 Long Bolt x12 Drawer Knobs x2 Dowel Pins x8 Long Screw x1 L Bracket x1 Short Screw x1 Wall Anchor x1 Non Slip Tape x6 White Bolt x4...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 1 Attach the cam screws to the legs STEP 2 Insert the cam locks into the holes on the right side panel and left side panel...
  • Page 7 STEP 3 • Attach the front and back right legs with the right side panel by turning the cam lock clockwise 90 degrees. • Attach the front and back left legs with the left side panel by turning the cam lock clockwise 90 degrees. STEP 4 •...
  • Page 8 STEP 5 • Insert slotted barrel nuts into the holes on the back top panel • Attach the drawer shelf with the back top panel using bolts STEP 6 Attach the selves with the back and front and left legs using slotted barrel nuts and long bolts...
  • Page 9 STEP 7 Attach cam screws to back left leg . STEP 8 • Insert cam locks into the holes on the back top panel • Insert slotted barrel nut into the holes on the drawer shelf . STEP 9 • Attach drawer shelf to the left legs using long bolts .
  • Page 10 STEP 10 Attach the cam screws to the back right leg . STEP 11 Insert cam locks into the holes on the back panel . STEP 12 Attach the back right leg to the back top panel by turning the cam locks clockwise 90 degrees.
  • Page 11 STEP 13 Attach the shelves and the drawer shelf with the back, front and right legs using slotted barrel nuts and long bolts . STEP 14 Secure the drawer shelf with the right side panel and the left side panel using slotted barrel nuts and bolts...
  • Page 12 STEP 15 Attach the front strip to the dresser top using screws. STEP 16 Attach the drawer right side and drawer left side to the drawer back using screws.
  • Page 13 STEP 17 • Attach the cam screw and the dowel pins to the drawer back • Slide in the drawer bottom panel • Insert a cam lock into the hole at the drawer bottom support and secure it to the drawer back by turning the cam lock clockwise 90 degrees.
  • Page 14 STEP 19 Insert cam locks into the holes on the drawer right side , drawer left side and drawer bottom support . STEP 20 Secure the drawer front panel to the drawer sides and bottom 13 15 support by turning the cam locks clockwise 90 degrees.
  • Page 15 STEP 22 • Attach the drawer side rail with the drawer right side using screws. • Attach the drawer side rail with the drawer left side using screws. STEP 23 Insert a cam screw and dowels pins into the changer front panel .
  • Page 16 STEP 24 • Insert a cam lock into the bottom changer support • Insert slotted barrel nuts into the holes on the changer sides panels . STEP 25 • Attach the changer sides panels to the changer front panel using white bolts . •...
  • Page 17 STEP 27 Insert a cam screw dowels pins into the changer back panel . STEP 28 • Attach the changer back panel to the changer side panels using bolts . • Secure the bottom changer support to the changer back panel by turning the cam lock clockwise 90 degrees.
  • Page 18 STEP 30 Attach the dresser top ,we assembled in step 15, to the changer back panel using slotted barrels and bolts . STEP 31 Insert cam screws to the dresser top .
  • Page 19 STEP 32 • Insert cam locks to the dresser side panels and back panel . • Secure the dresser top to the dresser panels by turning the cam locks clockwise 90 degrees. STEP 33 To secure the changing dresser to the wall, make a hole in the wall and insert the wall anchor...
  • Page 20 STEP 34 • Attach the L bracket to the dresser top using an screw. • Attach the changing table to the wall using screw through the L bracket STEP 35 Finally, insert the drawer into the dresser.
  • Page 21 Dresser Mode To use the unit without the changer, simply loosen the bolts from the changer back panel and remove the changer. Good Job! You have finished assembling your changing table!
