Page 3
safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
Page 4
9. If this product fails to operate normally, contact the nearest service center. never disassemble or modify this product in any way. (Hanwha Vision is not liable for problems caused by unauthorized modifications or attempted repair.) 10.
Page 5
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation.
Page 6
15. This product is intended to be supplied by a UL Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2” and rated from 12 Vdc 0.3 A. (ACE-6020R/ACO-6020R) 16. This product is intended to be supplied by a UL Listed Power Supply Unit marked “Class 2” or “LPS”...
Page 7
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
INTRODUCTION Features Components and Accessories Component names and functions INSTALLATION Before Installation Installation (ACE-6020R/ACE-8020R) Installation (ACV-8080R/ACV-8081R) Installation (ACO-6020R/ACO-8020R) Adjusting the monitoring direction for the camera CONNECTION Connecting with other Device CAMERA OPERATION Menu Configuration Menu Setup TROUBLESHOOTING Troubleshooting 8_ contents...
Page 9
FEATURES y High Resolution Supports up to 2 megapixel (1920 x 1080) resolution: : ACE-6020R/ACO-6020R Supports up to 5 megapixel (2592 x 1944) resolution: ACE-8020R/ACO-8020R/ ACV-8080R/ACV-8081R y D-WDR If an object has a large variance between bright and dark areas, it will keep bright areas bright and make selected dark areas bright, so that the overall brightness can be maintained.
COMPONENTS AND ACCESSORIES Check if the following items are included in the product package. <ACE-6020R/ACE-8020R> Camera Quick Guide Tapping Screws Plastic Anchor Template 10_ introduction...
Page 11
<ACV-8080R/ACV-8081R> Camera Quick Guide Tapping Screws Plastic Anchor Hex. L wrench Template English_11...
Page 12
introduction <ACO-6020R/ACO-8020R> Camera Quick Guide Tapping Screws Plastic Anchor Hex. L wrench Template 12_ introduction...

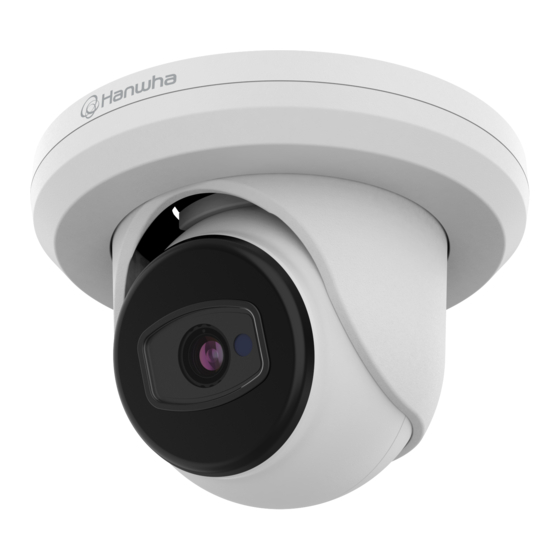

COMPONENT NAMES AND FUNCTIONS ACE-6020R/ACE-8020R IR LED : These infrared LEDs are controlled by the illumination sensor. IIIumination sensor : Detects incoming light to control the IR LED. Lens Module Middle Cover Video Output Jack : Video signals are output through this port. Connect this port to the Video IN port of a DVR.
Page 14
introduction ACV-8080R/ACV-8081R Dome Cover IR LED : These infrared LEDs are controlled by the illumination sensor. IIIumination sensor : Detects incoming light to control the IR LED. Lens Module Video Output Jack : Video signals are output through this port. Connect this port to the Video IN port of a DVR.
Page 15
ACO-6020R/ACO-8020R Camera Sunshield Lens Module IR LED : These infrared LEDs are controlled by the illumination sensor. IIIumination sensor : Detects incoming light to control the IR LED. Video Output Jack : Video signals are output through this port. Connect this port to the Video IN port of a DVR.
The installation should be done by qualified service personnel or system installers. y If the ceiling material is not strong enough to hold the installation screws, the camera may fall off. Reinforce the ceiling as needed. INSTALLATION(ACE-6020R/ACE-8020R) Disassembling 1. Use one hand to hold the camera’s bottom part and turn the middle cover counterclockwise with another hand to separate it.
Page 17
Installation 1. Attach the template for the installation and drill holes according to the template. 2. Insert plastic anchors into the installation holes and use 2 tapping screws to firmly place the camera. 3. After connecting the power and video cables, arrange the cables through the appropriate grooves.
Installation 4. Use a Phillips screwdriver to loosen the screws of the bracket that fixes the inner cover. 5. Adjust the lens in a desired direction by referring to the “Adjusting the monitoring direction for the camera” section. (page 23) 6.
Page 19
INSTALLATION(ACV-8080R/ACV-8081R) Disassembling 1. Using the Torx L wrench provided, turn the 3 fastening bolts on the dome cover counter clockwise to remove the cover. Installation 1. Attach the template for the installation and drill holes according to the template. English_19...
Installation 2. Insert plastic anchors into the installation holes and use 3 tapping screws to firmly place the camera. 3. After connecting the power and video cables, arrange the cables through the appropriate grooves. Be careful not to twist the cable. 4.
Page 21
INSTALLATION(ACO-6020R/ACO-8020R) Installation 1. Attach the template for the installation and drill holes according to the template. 2. Insert plastic anchors into the installation holes and use 3 tapping screws to firmly place the camera. 3. After connecting the power and video cables, arrange the cables through the appropriate grooves.
Page 22
Installation 4. Adjust the camera direction using the Torx L wrench. 5. Adjust the lens in a desired direction by referring to the “Adjusting the monitoring direction for the camera” section. (page 24) 22_ Installation...
ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA <ACE-6020R/ACE-8020R> Lens rotation Lens rotation Tilt Tilt <ACV-8080R/ACV-8081R> Lens rotation Lens rotation Tilt Tilt English_23...
Page 24
Installation <ACO-6020R/ACO-8020R> Tilt Tilt Lens rotation Lens rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.
Page 25
connection CONNECTING WITH OTHER DEVICE Monitor VIDEO INPUT HDMI BNC CABLE Power Adaptor English_25...
connection Connecting to Monitor 1. Connect the video output port of the camera to the video input port of the DVR using a BNC cable. 2. Use an HDMI cable to connect the monitor and the DVR. As the connecting method varies with the instruments, refer to the manual supplied with the instrument.
Page 27
Connecting to Power 1. Connect the power port of the camera to the power adaptor. 2. Connect the power adaptor cord to an outlet. Purchase and install an adaptor that meets the camera’ s power specifications. Be sure to connect power only after all the installation is complete. - When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm...
camera operation MENU CONFIGURATION MAIN SETUP ~ AHD ~ TVI ~ CVI VIDEO FORMAT ~ CVBS WHITE BAL ~ ATW ~ AWC ; SET ~ BRIGHTNESS ~ LENS ~ SHUTTER EXPOSURE ~ AGC ~ SSNR4 ~ D-WDR ~ RETURN BACKLIGHT ~ OFF ~ BLC ~ WDR (ACV-8081R)
Page 29
VIDEO FORMAT 1. Select the <VIDEO FORMAT> item MAIN SETUP from the main setup screen and press 1. VIDEO FORMAT the ENTER button. 2. WHITE BAL ~ The video output can be selected 3. EXPOSURE from AHD/TVI/CVI/CVBS. 4. BACKLIGHT 5.
Page 30
camera operation EXPOSURE 1. Select the <EXPOSURE> item from MAIN SETUP the main setup screen and press the 1. VIDEO FORMAT ENTER button. 2. WHITE BAL 2. Set the submenus of the EXPOSURE 3. EXPOSURE settings. 4. BACKLIGHT ~ BRIGHTNESS : Adjusts the video 5.
Page 31
BACKLIGHT You can clearly see the subject and the background at the same time, even with the backlight. 1. Select the <BACKLIGHT> item from MAIN SETUP the main setup screen and press the 1. VIDEO FORMAT ENTER button. 2. WHITE BAL 2.
Page 32
camera operation SPECIAL 1. Select the <SPECIAL> item from MAIN SETUP the main setup screen and press the 1. VIDEO FORMAT ENTER button. 2. WHITE BAL 2. Set the submenus of the SPECIAL 3. EXPOSURE settings. 4. BACKLIGHT ~ LANGUAGE: Select the screen ...
Page 33
AF(AUTO FOCUS) (The <AF> function is only supported in the ACV-8080R/ACV-8081R models.) 1. Select the <AF> item from the main MAIN SETUP setup screen and press the ENTER 1. VIDEO FORMAT button. 2. WHITE BAL 2. Set the submenus of the AF settings. 3.
Page 34
camera operation EXIT ~ SAVE&END : Save the current settings and exit the MAIN SETUP menu. ~ NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu. ~ RESET : Return the camera to its factory default state. However, the language settings and lens zoom position are not initialized.
Page 35
troubleshooting TROUBLESHOOTING If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting Nothing appears on the screen. y Check that the power cord and line connection between the camera and monitor are properly connected.
