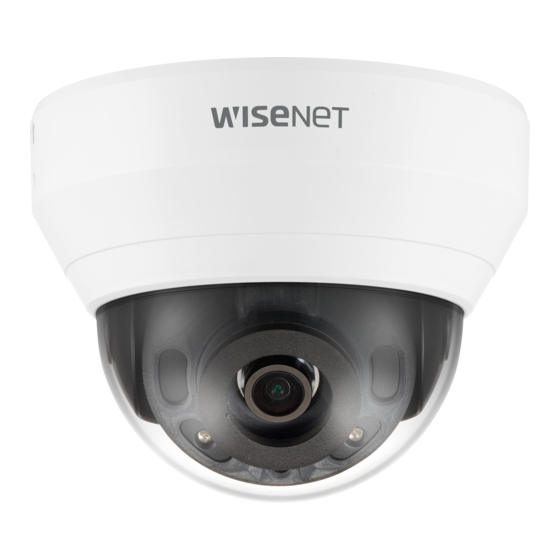

- Page 1 NETWORK CAMERA User Manual QND-7012R/7022R/7032R/7082R QNV-6014R/7012R/7022R/7032R/6084R/7082R QNO-6014R/7012R/7022R/7032R/6084R/7082R...
- Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
- Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 23. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table.
- Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
-
Page 5: Table Of Contents
CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included At a Glance (QND-7012R/7022R/7032R) At a Glance (QND-7082R) At a Glance (QNO-6014R/7012R/7022R/ APPENDIX Troubleshooting... -
Page 6: Recommended Pc Specifications
overview RECOMMENDED PC SPECIFICATIONS WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher (As for each sales country, accessories are not the same.) ~ RAM : 8G or higher ~ Recommended browser: Chrome Appearance... - Page 7 Appearance Item Name Quantity Description Model Name Appearance Item Name Quantity Description Model Name QND-7012R/7022R/ QNO-6014R/ 7032R/7082R, Used to control the direction of the L Wrench 7012R/7022R/ QNV-6014R/ camera 7032R/6084R/7082R Used to test the camera connection 7012R/7022R/ Cable for the testing monitor to a portable display device 7032R/6084R/7082R, QNO-6014R/...
-
Page 8: At A Glance (Qnd-7012R/7022R/7032R)
overview AT A GLANCE (QND-7012R/7022R/7032R) Components Appearance Item Description Dome cover Case cover used to protect the lens and the main unit. Camera Case Housing part that covers the camera body. Microphone hole Microphone is embedded. 8_ overview... -
Page 9: At A Glance (Qnd-7082R)
AT A GLANCE (QND-7082R) Item Description Inside cover Protective cover for the main body. Appearance Illumination Sensor Detects incoming light to control the IR LED. Lens Lens for the camera. IR LED These infrared LED’s are controlled by the illumination sensor. The button restores all camera settings to the factory default. - Page 10 overview Components Item Description Inside cover Protective cover for the main body. Illumination Sensor Detects incoming light to control the IR LED. Lens Lens for the camera. IR LED These infrared LED’s are controlled by the illumination sensor. Power Port Port for power terminal block.
-
Page 11: At A Glance
AT A GLANCE (QNO-6014R/7012R/7022R/7032R/6084R/7082R) Item Description Appearance Micro SD Card slot (Internal space of the product) This is a slot in which you can insert a Micro SD card. The button restores all camera settings to the factory default. Press and hold for about 5 seconds to reboot the system. If you reset the camera, the network settings will be adjusted so that DHCP can be Reset Button enabled. -
Page 12: At A Glance (Qnv-6014R/7012R/7022R/7032R)
overview Components AT A GLANCE (QNV-6014R/7012R/7022R/7032R) Appearance CAUTION: Be ware of the Rated Voltage and Polarity of the power connection. Item Description Power Port Used to plug the power cable. Item Description ARM-OUT Used to connect the alarm output signal. Dome cover Case cover used to protect the lens and the main unit. - Page 13 Components Item Description Illumination Sensor Detects incoming light to control the IR LED. Lens Lens for the camera. IR LED These infrared LED’s are controlled by the illumination sensor. The button restores all camera settings to the factory default. Press and hold for about 5 seconds to reboot the system. If you reset the camera, the network settings will be adjusted so that DHCP can be Reset Button enabled.
-
Page 14: At A Glance (Qnv-6084R/7082R)
overview AT A GLANCE (QNV-6084R/7082R) Components Appearance Item Description Dome cover Case cover used to protect the lens and the main unit. Camera Case Housing part that covers the camera body. 14_ overview... - Page 15 Item Description Illumination Sensor Detects incoming light to control the IR LED. Lens Lens for the camera. IR LED These infrared LED’s are controlled by the illumination sensor. ARM-IN Used to connect the alarm input sensor or external day/night sensor. ARM-OUT Used to connect the alarm output signal.
-
Page 16: Installation & Connection
installation & connection INSTALLATION (QND-7012R/7022R/7032R/7082R) Installation 1. Consider the direction to be monitored, attach the template, and Precautions before installation drill holes by following the template. Ensure you read out the following instructions before installing the camera: ~ It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera including the installation bracket. - Page 17 INSTALLATION (QNO-6014R/7012R/7022R/7032R/6084R/7082R) How to connect the RJ45 waterproof cable to a LAN cable This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. 1.
- Page 18 installation & connection Outdoor installation INSTALLATION (QNV-6014R/7012R/7022R/7032R) When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not.
- Page 19 5. Close the dome cover. Connecting the audio/alarm cable and power cable Securely fasten the fastening bolt using an Torx L wrench to prevent water 1. Remove the dome cover and the case. from leaking. 2. Pull off the cable bush at the bottom as shown in the figure. 3.
-
Page 20: Installation (Qnv-6084R/7082R)
installation & connection INSTALLATION (QNV-6084R/7082R) Installation 1. Consider the direction to be monitored, attach the template, and drill holes by following the template. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. - Page 21 Connecting the LAN cable Connecting the audio/alarm cable and power cable 1. Remove the dome cover and the case. 1. Remove the dome cover and the case. 2. Pull off the cable bush at the bottom as shown in the figure. 2.
- Page 22 installation & connection Attaching to the unbundled adapter Outdoor installation Choose and purchase a necessary one of the following options (unbundled) that is suitable to the installation When you install it outside of the building, please waterproof it with Camera System site or for your convenience.
-
Page 23: Inserting/Removing A Micro Sd Card
INSERTING/REMOVING A MICRO SD CARD Adjusting the monitoring direction for the camera (QND-7012R/7022R/7032R/7082R, QNV-6014R/7012R/7022R/7032R/6084R/7082R) Before installing the camera, the Micro SD card should be inserted while the power source and the body are separated. Do not forcefully insert it in the reverse direction. It might damage your Micro SD card and your product. When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended. - Page 24 installation & connection Inserting a Micro SD card (QND-7012R/7022R/7032R/7082R, QNV-6014R/7012R/7022R/7032R/6084R/7082R) 1. Separate the Dome cover of the camera. 2. Insert a Micro SD card in the arrow direction shown in the figure. <QND-7012R/7022R/7032R> <QNV-6014R/7012R/7022R/7032R> <QND-7082R> <QNV-6084R/7082R> 24_ installation & connection...
- Page 25 Removing a Micro SD card Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot. <QNO-6014R/7012R/7022R/7032R> <QND-7012R/7022R/7032R> <QNO-6084R/7082R> <QND-7082R> English _25...
- Page 26 installation & connection Before removing the Micro SD card, in <Setup ( )>-<Event>-<Storage>, set the device to <Off> and press the [Apply] button and turn the camera off. If you turn off the camera or remove the Micro SD card that contains data from the product, the data may be lost or damaged. <QNV-6014R/7012R/7022R/7032R>...
-
Page 27: Powering And Networking
POWERING AND NETWORKING Before plugging the DC 12 V power plug into the outlet, please assemble the terminal block first. Power Ethernet Power Ethernet <QND-7012R/7022R/7032R> <QND-7082R> Power Power CAUTION: CAUTION: Be ware of the Be ware of the Rated Voltage and Polarity Rated Voltage and Polarity of the power connection. - Page 28 installation & connection Ethernet Connection Connecting to Audio Input Connect the Ethernet cable to the local network or to the Internet. Speaker Power Supply Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the camera.
- Page 29 Connecting to the I/O port box Connect the Alarm I/O cable to the corresponding port of the port box. CAUTION: Be ware of the Rated Voltage and Polarity of the power connection. Alarm Sensor (Warning lamp) Sensor Alarm (Warning lamp) <QNO-6014R/7012R/7022R/7032R/6084R/7082R>...
- Page 30 installation & connection ~ ALARM-IN : Used to connect the alarm input sensor or external day/night sensor. Alarm In Wiring Diagram ~ ALARM-OUT : Used to connect the alarm output signal. ~ GND : Common port for alarm in/output signal. External Inside of the camera VCC_3.3V...
-
Page 31: Network Connection And Setup
network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1. -
Page 32: Using Device Manager
If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com). -
Page 33: Manually Registering Camera
AUTOMATICALLY CONFIGURING IP Configuring Dynamic IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically ~ Example of the Dynamic IP environment configure the IP. QND-7012R - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. -
Page 34: Port Range Forward (Port Mapping) Setup
network connection and setup PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen. -
Page 35: Connecting To The Camera From A Shared Local Pc
CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser. -
Page 36: Connecting To The Camera
web viewer web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1. -
Page 37: Password Setting
PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network. -
Page 38: Troubleshooting
appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION When an Windows 10 user accesses ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is ~ This is what happens when microphone driver has been set to Realtek driver. the web viewer through Chrome set to <Enable>, but no notification A. - Page 39 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
