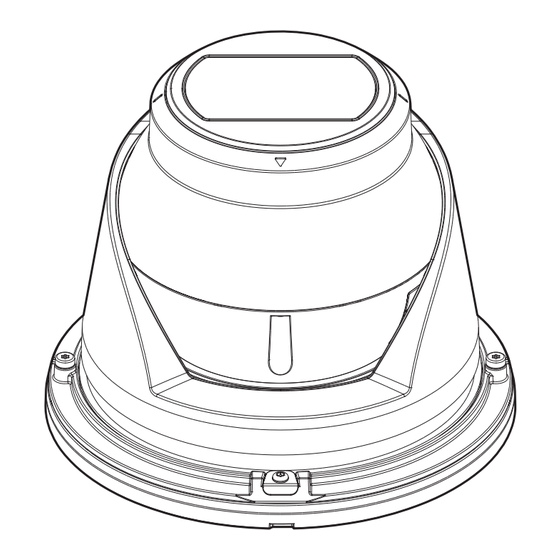

NETWORK CAMERA
User Manual
ANE-L8082R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANE-L8082R and is the answer not in the manual?

Questions and answers

Related Manuals for Hanwha Vision ANE-L8082R

Summary of Contents for Hanwha Vision ANE-L8082R

  • Page 1 NETWORK CAMERA User Manual ANE-L8082R...
  • Page 2 Network Camera User Manual Copyright ©2024 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 22. Although a rapid change in temperature could cause frost inside the glass, there will be no problem with the video. 23. The operating temperature of the product is -30°C to 60°C (-22°F ~ 140°F). 1. Read these instructions. 2.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS WEB VIEWER OVERVIEW Important Safety Instructions Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Optional Accessories for Installation At a Glance APPENDIX Troubleshooting INSTALLATION &...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 7: What's Included

    WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Camera A cover that is put on after adjusting the head Middle Cover direction Quick Guide...

  • Page 8: Optional Accessories For Installation

    overview OPTIONAL ACCESSORIES FOR INSTALLATION You can purchase appropriate optional accessories available. Pole Mount Wall Mount and Pole Mount Hanging Mount Tile Grid Mount Back Box (Direct Assembly) SBP-160WMW1 SBP-300WMW (Indoor Wall&Pole Mount) (Wall Mount) * SBP-300PMW2 required for pole installation SBP-140CMT SBP-300WMW1...
  • Page 9 Ceiling Mount Corner Mount Parapet Mount Cabinet Assembly Individual Parts SBP-180CMB SBP-300LMW SBP-300NBW SBP-300KMW1 SBP-C15P SBP-180CMS (Ball Head) SBP-150CMI SBP-300CMTW SBP-156CMW SBP-300CMTS SBP-300CMI SBP-C15H SBP-150CMP (Telescopic) (Ball Head) SBP-300CMW1 (Telescopic) SBP-300CMP SBP-900CMW SBP-900CMP SBP-156KMW SBP-150NBW SBP-140CMB SBP-156LMW1 (Telescopic) English _9...

  • Page 10: At A Glance

    overview AT A GLANCE Components Appearance Item Description Micro SD Card slot Compartment for the Micro SD memory card. The button restores all camera settings to the factory default. Item Description Press and hold for about 5 seconds to reboot the system. If you reset the camera, the network settings will be adjusted so that DHCP can be Reset Button Camera Head...

  • Page 11: Installation & Connection

    installation & connection INSTALLATION Installation 1. Place the mount plate on the desired location considering the direction to be monitored, mark the locations for the screw holes and cable The camera jack connected to the external cable is not waterproof. You are recommended to install this product below the holes, and then drill the holes.
  • Page 12 installation & connection 4. Connect the network cable to the camera’s PoE port. 9. Push the colored camera part upward in the direction of the arrow, and tighten the screws in the direction perpendicular to the ceiling. 5. Join the camera body with the mount plate. PUSH PUSH Don’t install the screws at an angle.
  • Page 13 Adjusting the monitoring direction for the camera When connecting the cable through the side, remove the wiring hole cover first before doing so. Lens rotation Tilt ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.

  • Page 14: Inserting/Removing A Micro Sd Memory Card

    installation & connection INSERTING/REMOVING A MICRO SD MEMORY CARD Removing a Micro SD Memory Card Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot. Before installing the camera, the Micro SD card should be inserted while the power source and the body are separated. Do not forcefully insert it in the reverse direction.

  • Page 15: Powering And Networking

    POWERING AND NETWORKING Connect the PoE device and camera’s PoE connectors. PoE Router Connect to a PoE (Power over Ethernet) enabled router’s PoE connector. Use PoE (Power over Ethernet) that is compliant with the IEEE802.3af protocols. If you want to connect an external device, you must turn off the external device before proceeding. Network Cable Specification Item Contents...

  • Page 16: Network Connection And Setup

    network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 17: Using Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).

  • Page 18: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. ANE-L8082R - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 19: Port Range Forward (Port Mapping) Setup

    PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.

  • Page 20: Connecting To The Camera From A Shared Local Pc

    network connection and setup CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.

  • Page 21: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.

  • Page 22: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, network, event, analysis, and system For a new password with 8 to 9 characters, you must use at least 3 over the network.

  • Page 23: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ On the authentication popup window prompted when initially accessing https, click "View ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is Authentication Certificate" and select the "Always trust when connecting to the designated set to <Enable>, but no notification A.
  • Page 24 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
