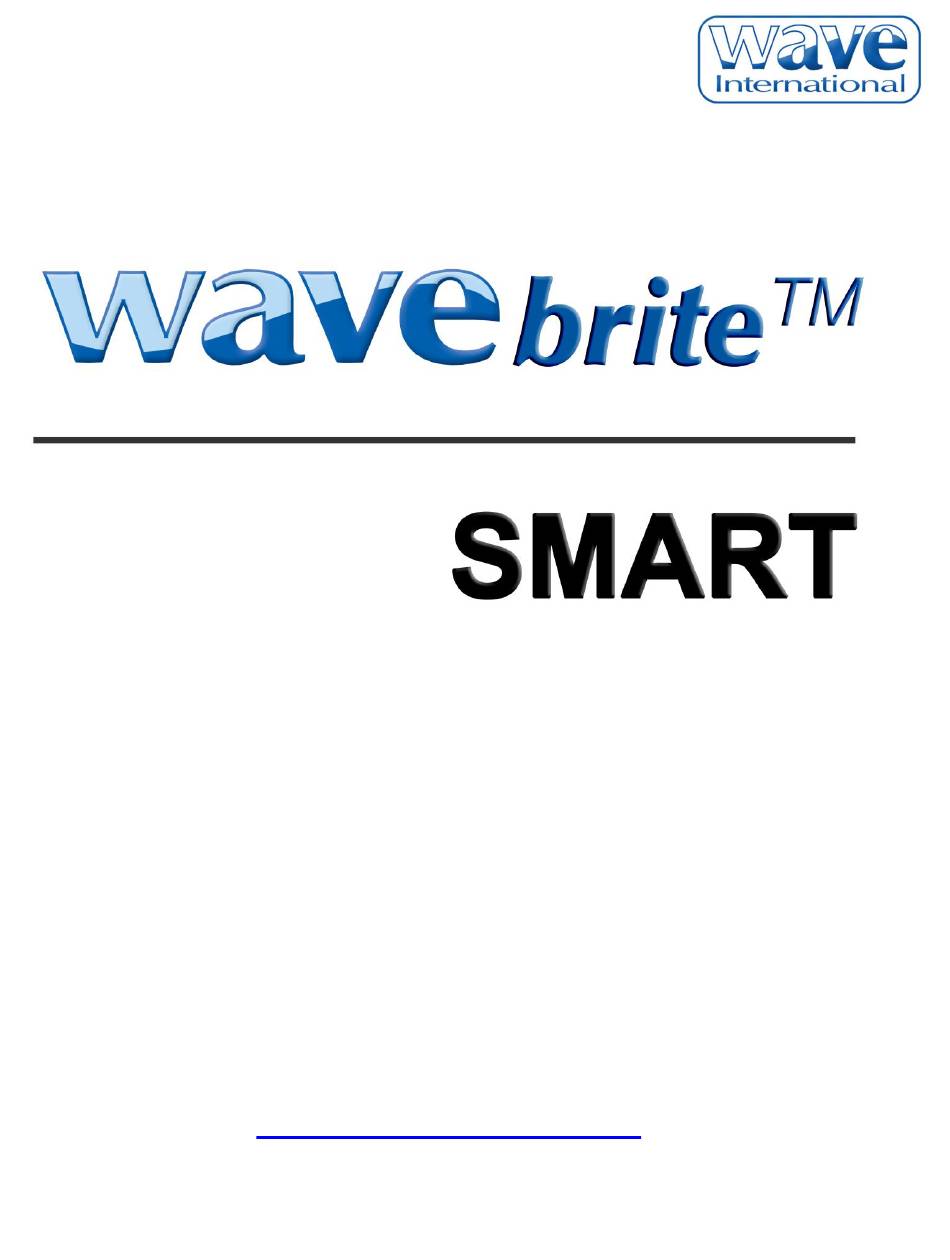

- Page 1 INSTALLATION & OPERATING INSTRUCTIONS www.waveinternational.co.uk...
-
Page 2: Table Of Contents
Wavebrite™SMART Specifications and Replacement Part Numbers. Fig 1. Installation Plug Wiring Diagram Fig. 2. Drawing WHALE GREY WASTE WATER SUMP 16L Fig. 3 Wavebrite SMART Screens & Cartridge Replacement Functional Checks Installation check With pump running, check Operational / Maintenance check... -
Page 3: Introduction
Note that bends and fittings in hoses all cause a reduction in pump efficiency. • The shorter the pipe runs to and from the Wavebrite™ SMART with no extra fittings such as elbows and bends, the better the system will perform. • Check with Wave International technical department if in doubt. -
Page 4: Components
1-15 Liters per min. POWER: 12 volts DC. SYSTEM MAX. PRESSURE: 4 bar. PRE-FILTERS MAX. DIFF. PRESSURE: 2 bar. (@ 2 bar. change cartridges 2&3) WAVEBRITE SMART MODULE CAPACITY: 20,000L MAX. TEMP: 45 deg. C MIN. TEMP: 1 deg. C WOUND CARTRIDGE: Part No. -
Page 5: Installation
WBSMART 23rev05 Section 4. Installation Although the installation and connection of the Wavebrite™ SMART is relatively simple you should always seek the advice of a professional, please note that all electrical connections should be made by a qualified electrical installer. •... -
Page 6: Drawing Whale Grey Waste Water Sump 16L Fig
WBSMART 23rev05 4.2 Drawing WHALE GREY WASTE WATER SUMP 16L Fig. 3. - Page 7 WBSMART 23rev05 Section 5. Wavebrite™ SMART Pico Display and Cartridge Replacement • Images of Wavebrite™ SMART screens are on the 2 following pages. IMPORTANT. Before replacing the cartridges ensure the power to the Wavebrite™ SMART is switched off and there is no pressure in the system. •...
- Page 8 The Wavebrite SMART Filter/Strainer 1. has reached capacity and the strainer mesh requires removal and careful 100% cleaning before being replaced. l/min SYSTEM ALARM The Wavebrite SMART Filter 2 & 3. have reached capacity and the filter cartridges need replacing. 100% 100% 15.0 l/min...
- Page 9 SYSTEM MAINTENANCE WAVEBRITE Water Filtration The Wavebrite SMART Main Module 4. needs replacing when it has reached maximum capacity. Instructions with part numbers and a Wavebrite SMART MAIN MODULE...
-
Page 10: Functional Checks
Wave International limited makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, Wave International Limited reserves the right to revise this publication and make changes to its content, at any time and to make...
