Summary of Contents for Wave ION-Z

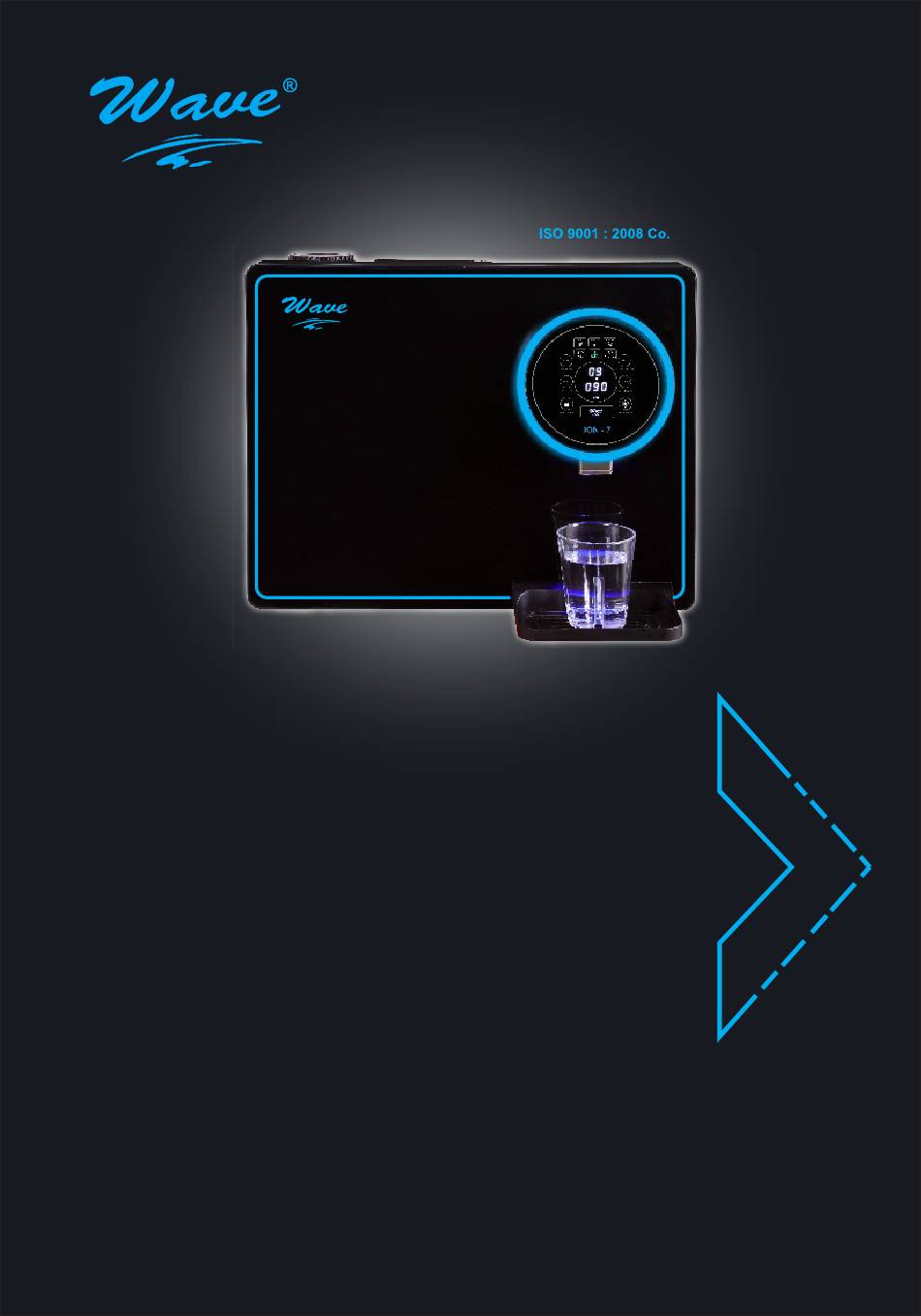

- Page 1 INSTRUCTION & USAGE MANUAL 100%* water saving with Aqua Revive Technology...
- Page 2 20 years of professional experience in water purifier manufacturing. www.wavero.com...
- Page 3 (5G-PRO) 10-12 10. Troubleshooting (5G-PRO) 11. Product Specification (PRIME+) 12. Purification Stages (PRIME+) 13. Panel Overview (PRIME+) 14. Instructions to use (PRIME+) 16-18 15. Troubleshooting (PRIME+) 16. Steps of Installation 17. Certified Components 18. New Series of Wave Water Purifiers...
- Page 4 PRODUCT SPECIFICATIONS - ION - Z Available In Two Models: 1.Water purifier with RO Membrane 2.Water purifier with Ultra Filtration (for TDS less than 300 PPM) Application Types: Table Top/ Wall Mounting Easy to Replace 2-in-1 Pre- Filter Cartridge Pre- Filter Cartridge Change Indicator on Display Screen Water Source Indicator on Display Screen Japanese titanium plates which delivers a range of pH (4,5,7,9,11) Fruits &...
- Page 5 PURIFICATION STAGES - ION - Z 2- IN- 1 PRE-FILTER SEDIMENT & CARBON BLOCK IONIZER FLOAT VALVE CHAMBER BOOSTER PUMP LED UV INSIDE THE WATER STORAGE TANK PRE-ACTIVATED CARBON RO/ UF MEMBRANE PURIFICATION STAGES Stage 1: Built in smart Pre-filtration, a combined filtration of Polypropylene and five- micron CTO filter.
- Page 6 PANEL OVERVIEW - ION - Z • Tank Full Indication Full Source Service • Purifying Indication • Service Indication Auto Flush Filter Purifying Pre-Filter Indication • HIGH ON/OFF High Alkaline Water • • Source Water Indication ALKALINE ACIDIC WATER • Auto Flush Indication ON/OFF Low Alkaline •...
- Page 7 Acidic Alkaline pH Scale 0-6 Acidic 7 Neutral 8-14 NOTE: The same machine can be switched to an Ultra Filtration Water Purifier by simply installing an Ultra Filtration (UF) Membrane when the raw water TDS is less than 300 ppm. INSTRUCTIONS - ION - Z HOW TO START 1.
- Page 8 HOW TO DISPENSE WATER 1. To dispense low alkaline water, touch the child lock button on the bottom left corner and then touch the “Low Alkaline” button above the child lock button touch the same “Low Alkaline” button to stop dispensing.
- Page 9 DETACHABLE DETOXIFIER - ION - Z Wave RO Water Purifiers comes w i t h t h e d e t a c h a b l e o z o n e generator that's highly effective in disinfecting fruits and vegetables.
- Page 10 PRODUCT SPECIFICATIONS - 5G - PRO/MAX Available In Two Models: 1.Water purifier with RO Membrane 2.Water purifier with Ultra Filtration (for TDS less than 300 PPM) Applications : Table Top / Wall Mounting/ Under The Counter Easy to Replace 2-in-1 Pre- Filter Cartridge Pre- Filter Cartridge Change Indicator on Display Screen Water Source Indicator on Display Screen 4-in-1 Filter cartridge for Balanced pH, Minerals, Negative ORP &...
- Page 11 PURIFICATION STAGES - 5G - PRO/MAX 2- IN- 1 PRE-FILTER SEDIMENT & CARBON BLOCK LED UV INSIDE THE WATER STORAGE TANK FLOAT VALVE BOOSTER 4-IN-1 PUMP MINERAL CARTRIDGE PRE-ACTIVATED CARBON RO/ UF MEMBRANE PURIFICATION STAGES Stage 1: Built in smart Pre-filtration, a combined filtration of Polypropylene and five- micron CTO filter Polypropylene filter removes dirt, impurities, rust, slime, sand and grit.
- Page 12 PANEL OVERVIEW - 5G - PRO/MAX 5G PRO • Tank Full Indication Source Service Full • Purifying Indication • Service Indication Filter Purifying Auto Flush Pre-Filter Indication • HIGH ON/OFF Ambient Water • • Source Water Indication ALKALINE COOLING °C Dispense •...
- Page 13 PURIFICATION STAGES - 5G - PRO/MAX 4- IN-1- HYDROGEN RICH ALKALINE CARTRIDGE Stage 5: Alkaline: Alkaline water is used for drinking and cooking and provides consumers with several important health benefits. Alkalizing restores pH balance by reducing acidity levels in the body.
- Page 14 INSTRUCTIONS - 5G - PRO/MAX HOW TO START 1. Switch on the power supply, the auto flushing procedure will begin, making its 'Auto Flush' sign blink for 15 seconds. The same procedure Auto Flush will be followed every hour for 15 second to clean up the membrane automatically.
- Page 15 DETACHABLE DETOXIFIER Wave RO Water Purifiers comes with the detachable ozone generator that's highly effective in disinfecting fruits and vegetables. NOTE: Make sure to switch off all the buttons, if machine will not be in use for more than 1-2 days.
- Page 16 PRODUCT SPECIFICATIONS - PRIME+ Available In Two Models: 1. RO Machine with Membrane 2. RO Machine with Ultra Filtration (for TDS less than 400 PPM) Application Types: Table Top/ Wall Mounting Easy to Replace 2-in-1 Pre- Filter Cartridge Pre- Filter Cartridge Change Indicator on Display Screen Water Source Indicator on Display Screen 4-in-1 Filter cartridge for Balanced pH, Minerals, Negative ORP &...
- Page 17 PURIFICATION STAGES - PRIME+ 2- IN- 1 PRE-FILTER SEDIMENT & CARBON BLOCK LED UV INSIDE THE SATER STORAGE FLOAT VALVE TANK BOOSTER PUMP 4-IN-1 MINERAL CARTRIDGE PRE-ACTIVATED CARBON RO/ UF MEMBRANE PURIFICATION STAGES Stage 1: Built in smart Pre-filtration, a combined filtration of Polypropylene and five - micron CTO filter Polypropylene filter removes dirt, impurities, rust, slime, sand and grit.
- Page 18 PANEL OVERVIEW - PRIME+ • Tank Full Indication Full Source Service • Purifying Indication • Service Indication Filter Purifying Auto Flush Pre-Filter Indication • ON/OFF ON/OFF • Ambient Water • Source Water Indication AMBIENT LIGHT Prime + Dispense • Auto Flush Indication •...
- Page 19 PURIFICATION STAGES - PRIME + 4- IN-1- HYDROGEN RICH ALKALINE CARTRIDGE Stage 5: Alkaline: Alkaline water is used for drinking and cooking and provides consumers with several important health benefits. Alkalizing restores pH balance by reducing acidity levels in the body.
- Page 20 INSTRUCTIONS - PRIME+ HOW TO START 1. Switch on the power supply, the auto flushing procedure will begin, making its 'Auto Flush' sign blink for 15 seconds. The same procedure will be followed every hour for 15 second to clean up the Auto Flush membrane automatically.
- Page 21 DETACHABLE DETOXIFIER Wave RO Water Purifiers comes w i t h t h e d e t a c h a b l e o z o n e generator that's highly effective in disinfecting fruits and vegetables. NOTE: Make sure to switch off all the buttons, if machine will not be in use for more than 1-2 days.
-
Page 22: Steps Of Installation
STEPS OF INSTALLATION Source Water Tank Raw Water R.O. Valve Water Inlet Line Connect water supply to the water purified before using as shown in the diagram above. Ÿ Connect to the water power source (15 AMP socket, 220-volt AC) - for 5G - Max only. Ÿ... -
Page 23: Certified Components
CERTIFIED COMPONENTS APPROVED SPARE PARTS... - Page 24 An Ionizer With Water Purifier Touch Operational Panel. LED UV Inside The Storage Tank. Japanese Titanium Plates. pH Range 4, 5, 7, 9, 11. Alkaline Hydrogen Rich Water. Fruits & Vegetables Detoxifier. Built In Pre-Filter. A Hot & Cold Water Purifier Touch Operational Panel.
