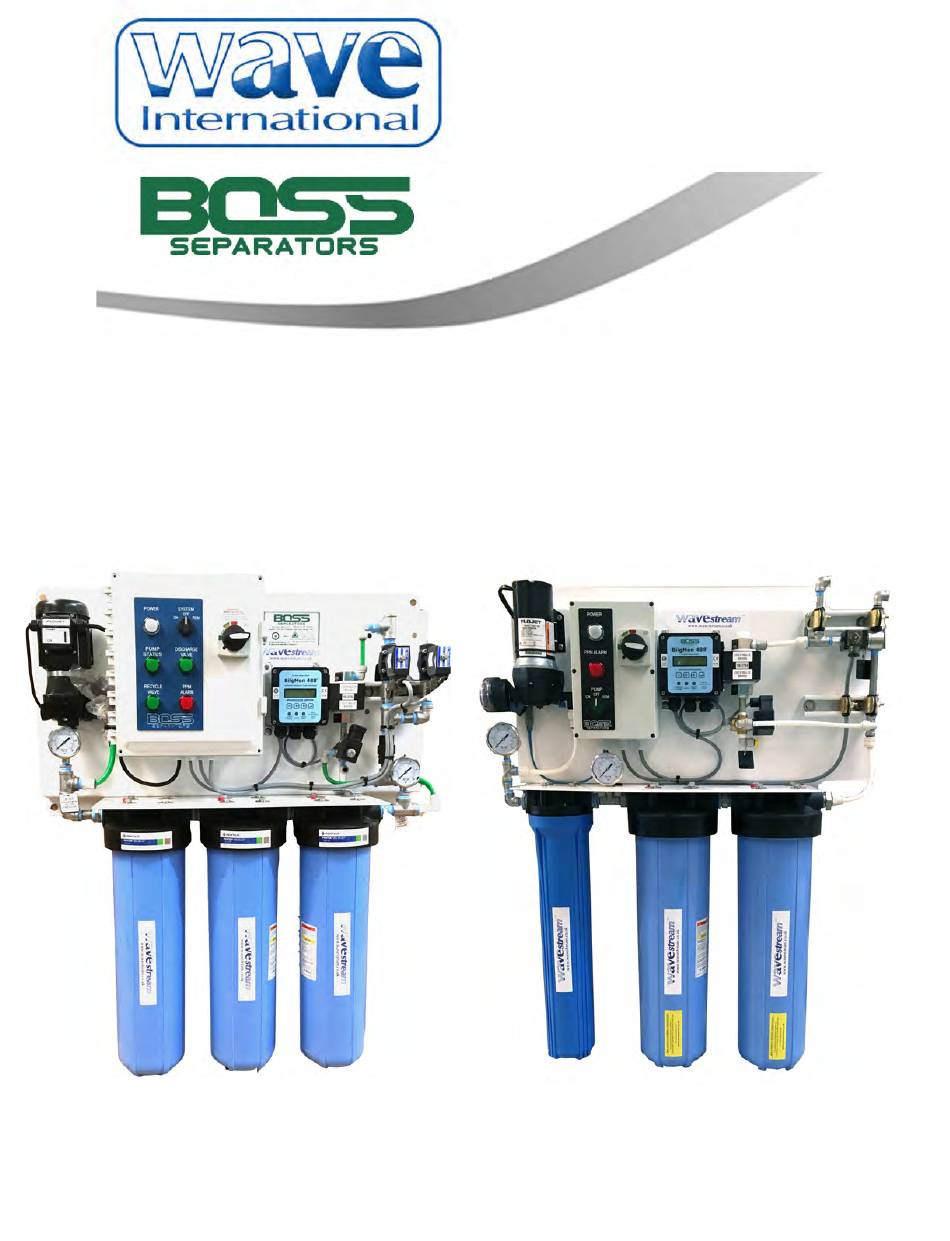

- Page 1 Tel: +44 1476 861717 info@waveinternational.co.uk www.waveinternational.co.uk Wave MiniBOSS MEPC 107(49) Monitored Oil Removal System OPERATION & MAINTENANCE MANUAL 110 / 240v AC 24v DC...
-
Page 2: Table Of Contents
4.4. High oil content reading causing water to recycle and not discharge overboard..8 SAFETY ..........................8 SPARE PARTS .........................9 ATTACHMENT 1 – MECHANICAL DRAWINGS ............10 ATTACHMENT 2 – ELECTRICAL SCHEMATICS ............13 MiniBOSS O&M Manual Rev 3 Page 2 9/25/2018... -
Page 3: System Description
M3/hr.) at 25 psig back pressure and no vacuum on the inlet or 1.5 gpm (0.35 M3/hr) with the MiniBOSS-110. However, the actual flow rate achieved is a function of the system pressure. If the backpressure goes up the flow rate will go down. The flow rate will fluctuate depending on pressure and vacuum. -
Page 4: System Specifications
The design flow for the system is 1.0 gpm (.25 M3/hr) at 25 psig back pressure or 1.5 gpm (0.35 m3/hr) for the MiniBOSS-110 MiniBOSS O&M Manual Rev 3... -
Page 5: Alarm And Action Conditions
A separate instruction manual for the oil content monitor is provided. The OCM cell will need to be cleaned on a regular basis. Refer to the OCM manual for operating instructions for the OCM. MiniBOSS O&M Manual Rev 3 Page 5 9/25/2018... -
Page 6: Calibration Of The Ocm
To clean the cell, do not unplug the unit. You will need power to the system to operate the oil content monitor during the cleaning process. MiniBOSS O&M Manual Rev 3 Page 6 9/25/2018... -
Page 7: Pre-Screening
The pump is rated for continuous duty with a life expectancy of about 5,000 hours. The pump will self-prime up to 9 feet vertical lift. MiniBOSS O&M Manual Rev 3 Page 7... -
Page 8: Trouble Shooting
There are no hazardous substances or chemicals used in the system. The system is designed to separate oil from water. If there are other chemicals or substances in the oily water sump they should be evaluated individually to determine the impact. MiniBOSS O&M Manual Rev 3 Page 8 9/25/2018... -
Page 9: Spare Parts
Cartridge - Filter - 2.5 x 20 in, 5 Micron 40267 CARTRIDGE - SEDIMENT - 4 1/2" X 20", 5 MICRON 42682 110V Cartridge - Polisher - 4.5 x 20 in, BOSS XP 420 41270 24V/110V MiniBOSS O&M Manual Rev 3 Page 9 9/25/2018...
