Viking M2W Technical Practice

Technical Practice
Features
• Adjustable volume control
• Powers up to (3) 8 ohm speakers
• Easy modular connections
• Power supply included
• Weather resistant 25AE paging horn, included
• Optional additional paging horns or ceiling
speakers (Fax Back Document 498)
Telecommunication Peripheral Products
Amplify Key Phone Ringing
http://www.VikingElectronics.com
E-Mail...Sales@VikingElectronics.com
and Paging

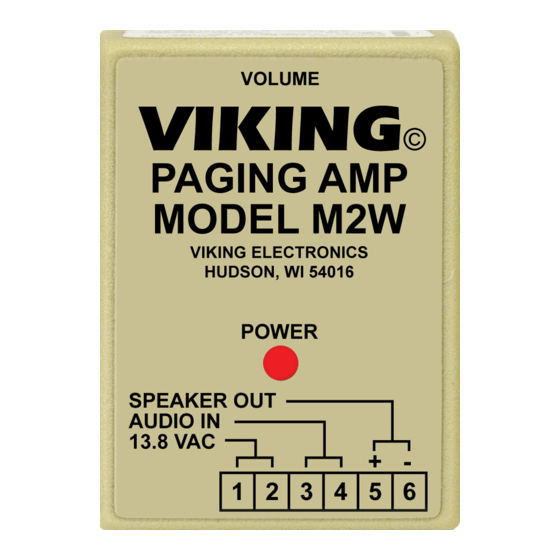

The M 2 W is designed to amplify the
paging announcements and ringing
tones of key system telephone speakers
in noisy areas.
The M2W can also be used to boost the
paging capacity of other paging
amplifiers.
The M2W comes complete with a 25AE
8 ohm paging horn, an amplifier and a
plug-in transformer.
Applications
• Amplify key phone paging and ringing
• Add speakers to fully loaded paging systems
Sales...(715) 386 - 8861
Made in the U.S.A.

Specifications

Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
Dimensions: M2W - 53mm x 74mm x 25mm (2.1" x 2.9" x 1"),
25AE - 127mm (5") diameter
Shipping Weight: 1.13 kg (2.5 lbs.)
Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% non-
condensing humidity
Speaker: (1) 25AE 8 ohm 5 watt paging horn included
Amplifier: 2 watts peak
Connections: 2-wire modular jack
M2W
Key Phone
Paging Amplifier
June 2, 1999
