Technical Practice
On both inbound and outbound calls, the emergency personnel can redirect the call to
any of the other phones without hanging up. The LC-8 is compatible with all Viking
emergency elevator phones, standard phones, modems and credit card readers.
Features
• Automatic answering of inbound calls
• Connects up to (8) emergency phones
• Touch Tone transferring
• Fire floor phone connection
• Built in talk battery for fire floor phone
• Call waiting notice
• Paging feature
• Fully functional battery backup
• Non-volatile E memory for all programmable
features
2
Made in the U.S.A.
Telecommunication Peripheral Products
Up to Eight Emergency Phones
Can Share One Telephone Line
http://www.VikingElectronics.com
E-mail...Sales@VikingElectronics.com

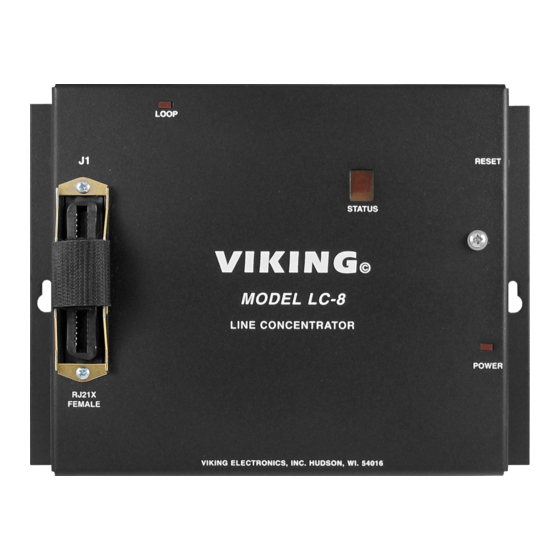

The LC-8 Line Concentrator eliminates the
monthly charges for dedicated phone lines to
each elevator cab in an office, college, hotel,
hospital, etc. A call initiated by any emergency
phone is sent to the C.O. line. Subsequent calls
activate call waiting tones to alert the
emergency personnel that another phone has
gone off-hook.
All inbound calls are answered by the LC-8.
The emergency personnel then dials a Touch
Tone command to connect to one of eight
phones.
Applications
Sharing one line with up to (8):
• Elevator phones
• Emergency phones
• Modems
• Credit card readers
• Standard telephones
Sales...(715) 386 - 8861
Specifications
Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
Dimensions: 210mm x 159mm x 44mm (8.25" x 6.25" x 1.75")
Shipping Weight: 1.8 Kg (4 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-
condensing humidity
Connections: (1) RJ21
Battery Backup: 4 hours
LC-8
Line Concentrator
May 20, 2002
