HMI series
410-710-810-820-830
HMI Touch Screen
12"
10"
7"
4,3"
Installation manual / Manuale installatore
Installationsanleitung

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMI Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Pixsys HMI Series

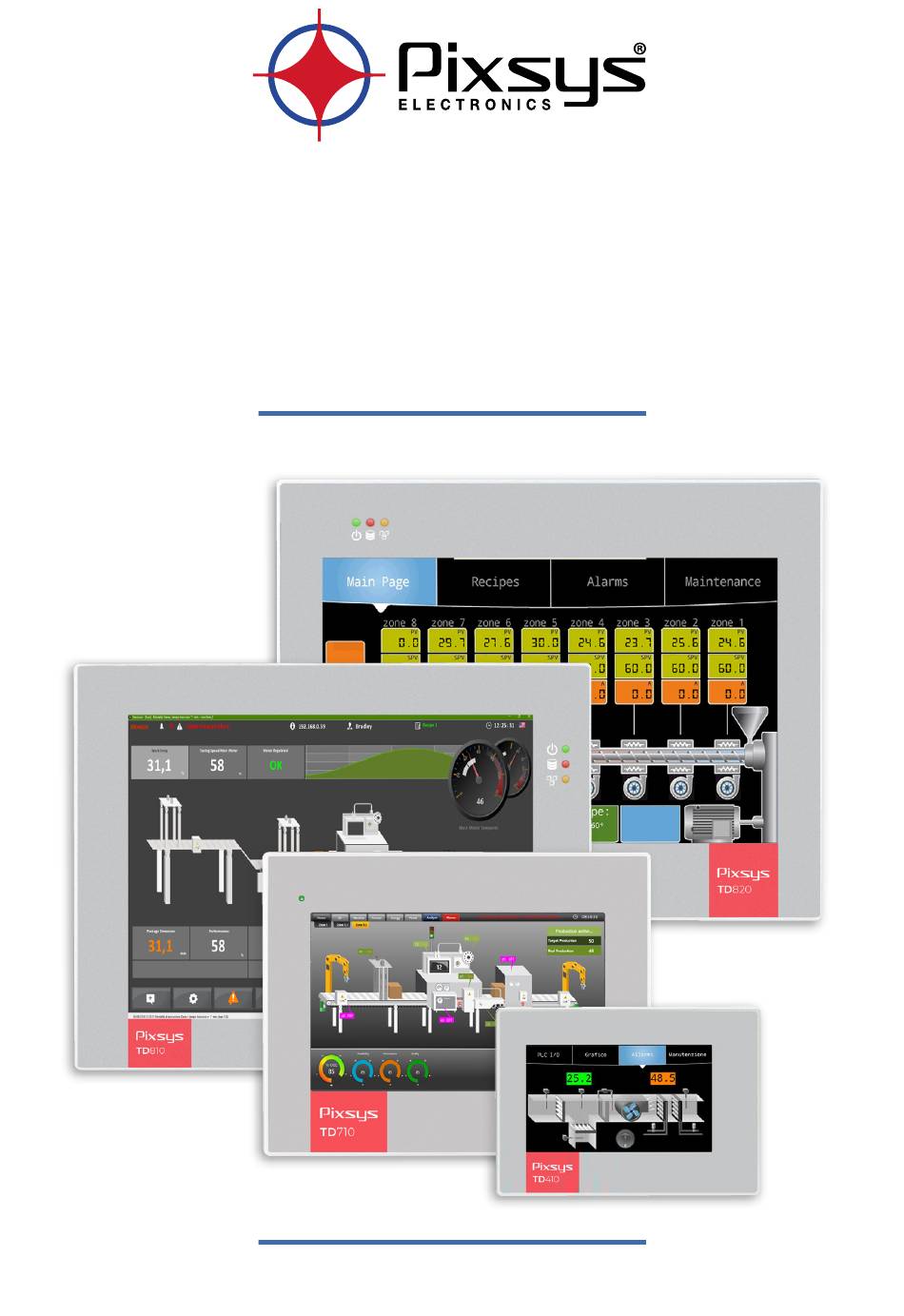

  • Page 1 HMI series 410-710-810-820-830 HMI Touch Screen 12” 10” 7” 4,3” Installation manual / Manuale installatore Installationsanleitung...
  • Page 3: Table Of Contents

    Table of contents Safety guidelines ................................5 Policies and procedures ..........................5 1.2 Installation guidelines ..........................5 1.3 Viruses and dangerous programs ......................5 Organization of safety notices ........................6 Spacing for air circulation and ventilation ......................6 Device installation ............................... 6 Power supply and grounding............................
  • Page 4 Interfaccia USB ............................21 Interfaccia Ethernet ..............................21 8.1 Dati tecnici ..............................21 8.2 Modalità configurabili ..........................21 Batteria ..................................22 Sostituzione batteria tampone interna ....................22 9.2 Dettagli della batteria ..........................22 10 Manuale del Software ..............................23 Themenverzeichnis Sicherheitsvorschriften .............................25 Vorschriften und Verfahren........................25 1.2 Installationsrichtlinien ..........................25 1.3 Viren und gefährliche Programme ......................25 Bedeutung der Sicherheitshinweise .......................26...
  • Page 5: Safety Guidelines

    (e.g. diskette, CD-ROM, USB flash drive, etc.), a network connection or the Internet. The user is responsible for assessing these dangers, implementing preventive measures such as virus protection programs, firewalls, etc. and making sure that software is only obtained from trusted sources. User manual - HMI Series - 5...
  • Page 6: Organization Of Safety Notices

    (as per figures 1 and 2) Cut-out Fig. 1 Fig. 2 Lc + 2 mm Hc + 2 mm 6 - HMI Series - User manual...
  • Page 7: Power Supply And Grounding

    Connect the device grounding with a conductor of 18AWG (2,5mmq) minimum section. For the whole series it is suggested to use a 24 VDC 1,0A 24VA power supply (Pixsys code 2700.10.008). Use Copper, Copper-Clad Aluminium or Aluminium conductors wire for all electric connection.
  • Page 8: Wiring Connections

    50000 h Typ @ 50000 h Typ @ 25°C** 30000 h Typ @ 25°C** duration* 25°C** Lifetime** * Brightness reduction to 80% of default setting / ** Functioning years per 8 hours / day 8 - HMI Series - User manual...
  • Page 9: Communication Interfaces

    RS232 connection with RTS / CTS: Standard RS232 connection: PIN2: RX (green) PIN2: RX (green) PIN3: TX (blue) PIN3: TX (blue) PIN5: GND (brown) PIN5: GND (brown) PIN7: RTS (white) PIN8: CTS (yellow) User manual - HMI Series - 9...
  • Page 10: Using Rs485 / Com2 On Terminal M1

    Pin 8 4 - A- 330 Ω 5 - C Pin 3 7 - 5V 470 Ω 9 - B+ Pin 5 : C EARTH Note: 5V Is isolated and can supply 70mA max 10 - HMI Series - User manual...
  • Page 11: Usb Interfaces

    Warning! Peripheral USB devices can be connected to the USB interfaces on this device. Due to the large number of USB devices available on the market, Pixsys cannot guarantee their performance. Caution! Because this interface is designed according to general PC specifications, extreme care should be exercised with regard to EMC, cable routing, etc.
  • Page 12: Battery

    It is suggested to replace the battery every 3 years. When the battery is removed, an internal dedicated device allows replacement without data loss if operation is completed within 1 hour since battery removal. 12 - HMI Series - User manual...
  • Page 13: Software's Manual

    Software’s Manual Onboard software’s manual is published online at the following link: User manual - HMI Series - 13...
  • Page 14 Warranty terms Pixsys srl warrants its electronic devices for 12 months from Invoice date. Pixsys liability shall be limited to repairing (or replacing at its option) any defective product which is returned with RMA (Return Material Authorization) priorly obtained on Pixsys website and to be clearly marked on documents.
  • Page 15 User manual - HMI Series - 15...
  • Page 16 16 - HMI Series - User manual...
  • Page 17: Norme Di Sicurezza

    Norme di sicurezza Le indicazioni di questo manuale sono riferite a prodotti Pixsys quali i dispositivi logici programmabili (PLC) e i dispositivi di controllo e monitoraggio (PC industriali, HMI) da ora in poi identificati semplicemente con il termine “Il dispositivo” o “i dispositivi”. I dispositivi realizzati e commercializzati da Pixsys sono progettati, sviluppati e realizzati per un uso convenzionale in ambienti industriali.
  • Page 18: Organizzazione Delle Note Di Sicurezza

    Dima foratura (cut-out) Fig. 1 Fig. 2 Lc + 2 mm Hc + 2 mm 18 - HMI Series - Manuale d’uso...
  • Page 19: Alimentazione E Messa A Terra Dello Strumento

    I collegamenti di massa devono essere il più corti possibili ed eseguiti con filo con la sezione massima possibile verso il punto centrale di messa a terra (ad esempio l’armadio o il sistema di controllo). Manuale d’uso - HMI Series - 19...
  • Page 20: Collegamenti Elettrici

    50000 h Typ @ 50000 h Typ @ 25°C** 30000 h Typ @ 25°C** retroilluminazione* 25°C** Lifetime** * Riduzione luminosità all’80% del dato di fabbrica / ** Anni di funzionamento per 8 ore / giorno 20 - HMI Series - Manuale d’uso...
  • Page 21: Interfacce Di Comunicazione

    Connessione RS232 con RTS / CTS: Connessione RS232 base: PIN2: RX (verde) PIN2: RX (verde) PIN3: TX (blu) PIN3: TX (blu) PIN5: GND (marrone) PIN5: GND (marrone) PIN7: RTS (bianco) PIN8: CTS (giallo) Manuale d’uso - HMI Series - 21...
  • Page 22: Utilizzo Rs485 / Com2 Su Morsetto M1

    Pin 8 4 - A- 330 Ω 5 - C Pin 3 7 - 5V 470 Ω 9 - B+ Pin 5 : C EARTH Note: 5V Is isolated and can supply 70mA max 22 - HMI Series - Manuale d’uso...
  • Page 23: Interfaccia Usb

    Interfaccia non presente sulle versioni -EL. Warning! Differenti dispositivi USB possono essere collegati alle interfacce USB su questo dispositivo. A causa dell’elevato numero di dispositivi USB disponibili sul mercato, Pixsys non può garantire le loro performance. Caution! Poiché...
  • Page 24: Batteria

    Si consiglia di sostituire la batteria ogni 3 anni. Quando la batteria viene rimossa, un dispositivo interno dedicato consente la sostituzione senza perdita di dati se l’operazione è completata entro 1 ora dalla rimozione della batteria. 24 - HMI Series - Manuale d’uso...
  • Page 25: Manuale Del Software

    Manuale del Software Il manuale del software a bordo del dispositivo è pubblicato online al link seguente: Manuale d’uso - HMI Series - 25...
  • Page 26 La garanzia non copre in alcun modo i problemi derivanti dall’installazione di applicativi software successiva alla vendita, ed in particolare i danni conseguenti all’esecuzione di malware. Eventuali interventi di assistenza da parte di Pixsys per il ripristino di sistema operativo o programmi saranno soggetti alla tariffa di assistenza vigente.
  • Page 27 Manuale d’uso - HMI Series - 27...
  • Page 28: Sicherheitsvorschriften

    Diese Bedienungsanleitung bezieht sich auf Pixsys-Produkte wie speicherprogrammierbare Steuerungen (SPS) sowie Steuerungs- und Überwachungsgeräte (Industrierechner, HMIs). Sie werden in der Folge einfach als „Gerät“ oder „Geräte“ bezeichnet. Die von Pixsys entwickelten und vertriebenen Geräte werden für den konventionellen Einsatz in Industrieumgebungen entworfen, entwickelt und hergestellt.
  • Page 29: Bedeutung Der Sicherheitshinweise

    Oberfläche installiert werden. Unebene Oberflächen könnten das Display beschädigen, wenn die Schrauben angezogen sind, oder könnten das Eindringen von Staub oder Wasser ermöglichen. Bohrausschnitt Abb. 1 Abb. 2 Lc + 2 mm Hc + 2 mm Benutzerhandbuch - HMI Series - 29...
  • Page 30: Spannungsversorgung Und Erdung Des Geräts

    Das 24-VDC-Versorgungskabel muss mit einer 2,5-A- Sicherung gesichert werden. Vorsicht! Die Masseverbindungen müssen so kurz wie möglich ausfallen und mit Draht mit dem größtmöglichen Querschnitt zum zentralen Erdungspunkt geführt werden (z.B. Schrank oder Steuerungssystem). 30 - HMI Series - Benutzerhandbuch...
  • Page 31: Elektrische Anschlüsse

    Dauer der Hinter- 50000 h Typ @ 50000 h Typ @ 25°C** 30000 h Typ @ 25°C** grundbeleuchtung* 25°C** Lebenszeit** * Helligkeitsreduzierung auf 80 % der Werkseinstellung / ** Betriebsjahre bei 8 Stunden / Tag Benutzerhandbuch - HMI Series - 31...
  • Page 32: Kommunikationsschnittstellen

    Verwendung von RS232 / COM1 auf DB9 (unverfügbar für TD410 und -EL-Versionen) 7.2.a RS232-Basisverbindung: RS232-Verbindung mit RTS / CTS: PIN2: RX (grün) PIN2: RX (grün) PIN7: RTS (weiß) PIN3: TX (blau) PIN3: TX (blau) PIN8: CTS (gelb) PIN5: GND (braun) PIN5: GND (braun) 32 - HMI Series - Benutzerhandbuch...
  • Page 33: Verwendung Von Rs485 / Com2 Auf Klemme M1

    Pin 8 4 - A- 330 Ω 5 - C Pin 3 7 - 5V 470 Ω 9 - B+ Pin 5 : C EARTH Note: 5V Is isolated and can supply 70mA max Benutzerhandbuch - HMI Series - 33...
  • Page 34: Usb-Schnittstelle

    Auf diese Weise können die Ports so konfiguriert werden, dass sie im “Switch”-Modus oder mit “unabhängigen” Konfigurationen arbeiten. Im “Switch”-Modus ist es möglich, mehrere Geräte in Reihe zu schalten (oder zu kaskadieren), ohne externe Ethernet-Switches zu verwenden. 34 - HMI Series - Benutzerhandbuch...
  • Page 35: Batterie

    Warnung! Die Knopfzelle sollte alle 3 Jahre ausgewechselt werden. Bei Entnahme der Knopfzelle ermöglicht eine spezielle interne Vorrichtung den Austausch ohne Datenverlust, sofern der Vorgang innerhalb von 1 Stunde nach der Entnahme abgeschlossen wird. Benutzerhandbuch - HMI Series - 35...
  • Page 36: Handbuch Für Die Software

    Handbuch für die Software Das Handbuch für die Software an Bord des Geräts ist online unter folgendem Link veröffentlicht: 36 - HMI Series - Benutzerhandbuch...
  • Page 37 Beschränkte Haftung Pixsys S.r.l. garantiert seine elektronischen Geräte für einen Zeitraum von 12 Monaten ab Rechnungs- datum. Die Herstellergarantie ist begrenzt auf die Reparatur oder den Ersatz von Teilen mit Fabri- kationsfehlern, die unter Angabe der Rücksendenummer (internes RMA-Autorisierungsverfahren) an unser Haus zurückgesandt werden. Pixsys haftet nicht für Unfälle/Schadensfälle und Personen- oder Sachschäden, die infolge von Manipulation (einschließlich Reparaturversuchen durch nicht...
  • Page 38 38 - HMI Series - Benutzerhandbuch...
  • Page 40 Einstellung aufmerksam zu lesen. Avant d’utiliser le dispositif lire avec attention les renseignements de sûreté et installation contenus dans ce manuel. PIXSYS s.r.l. www.pixsys.net sales@pixsys.net - support@pixsys.net online assistance: http://forum.pixsys.net via Po, 16 I-30030 Mellaredo di Pianiga, VENEZIA (IT) Tel +39 041 5190518 2300.10.258-RevH...

This manual is also suitable for:

Td410-adTd710-adTd810-adTd820-adTd830-ad
