Manufactured by (DVDR) for
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts. which may have come loose inside the carton during shipment. Identify and count all parts and
compare with the parts list below:
No.
1
2
3
Hardware List
No.
A
B
Part List
C
D
E
F
Hardware
& Legs
Hardware Pack Location (s) : Bolts pack inside bottom drawer ( Leg inner carton)
Nightstand SKU #
Version #1-2023/10/02

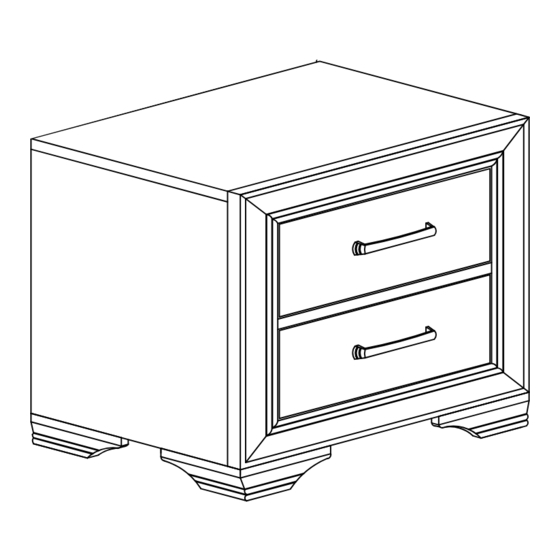

DVDR HD1622-403C NIGHTSTAND
JCBC (M6) with Spring Washer and Washer
Allen Key (M4)
Phillips Screwdriver
Nightstand
Front Left Leg (Packed Inside Drawer)
Front Right Leg (Packed Inside Drawer)
Back Left Leg (Packed Inside Drawer)
Back Right Leg (Packed Inside Drawer)
Tipping Restraint (Packed Inside Drawer)
32516239
ASSEMBLY INSTRUCTION
Description
Description
A
D
B
SKU# 32516239
Dimension
M6 x P1.0 x 40mm
4 x 65mm
-
Not Provided
C
PAGE 1 OF 2
Qty
8 Pcs
1 Pc
Qty
1 Pc
1 Pc
1 Pc
1 Pc
1 Pc
1 Pc
