Mounting Foot - Weidmüller MultiMark Original Operating Instructions

22
23

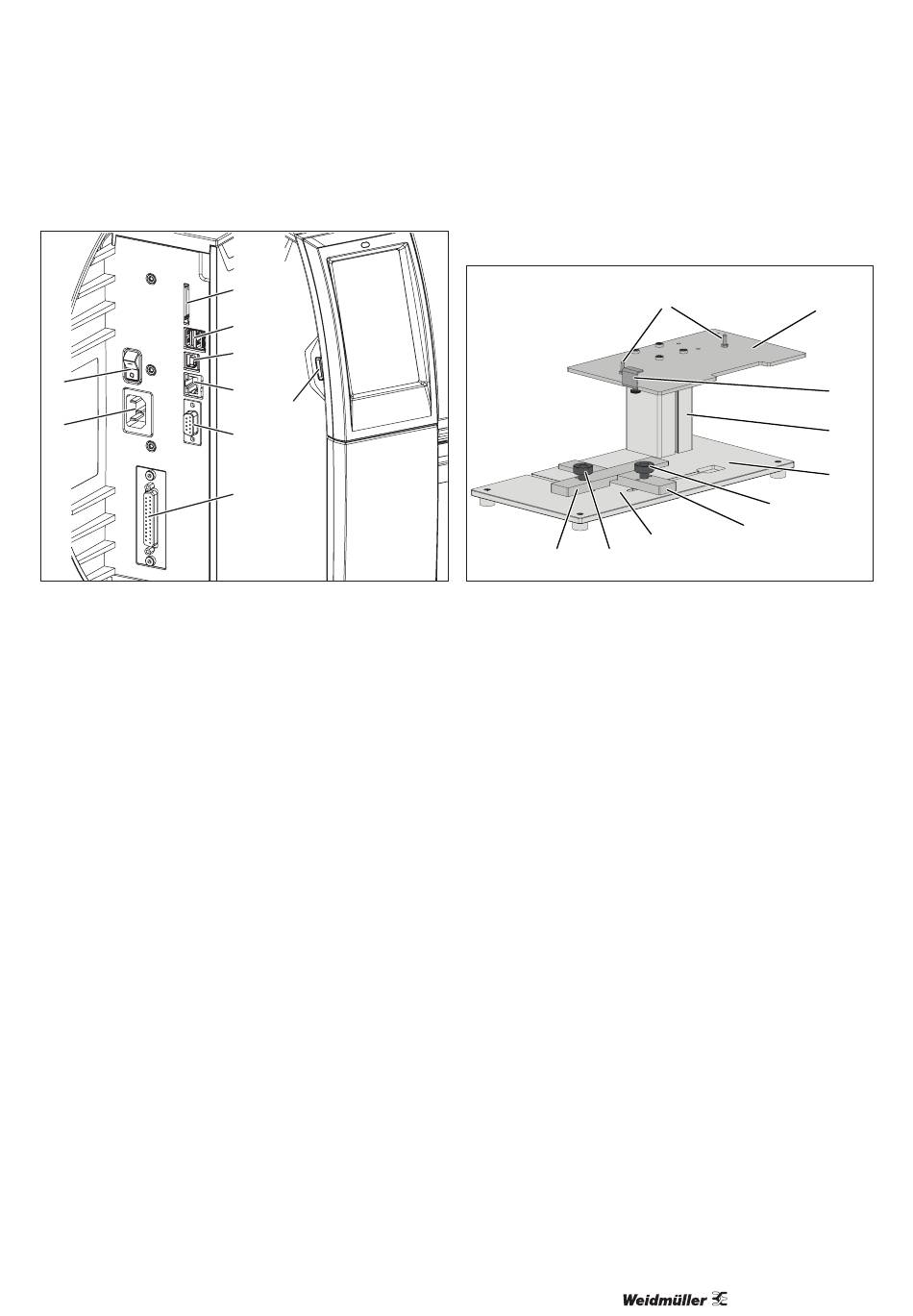

Image 3.4 Connections
22 Mains switch
23 Power socket
24 Slot for SD card
25 USB interfaces for keyboard, scanner, USB stick, Bluetooth
adapter or service key
26 USB Full Speed interface
27 Ethernet 10/100 Base-T
28 RS-232 interface
29 I/O interface
30 USB interface for keyboard, scanner, USB stick, Bluetooth
adapter or service key
2903400000/00/09.2022
24
25
26
27
30
28
29

3.2 Mounting foot

10 9
Image 3.5 Mounting foot
1 Guide pins to position the printer on the mounting plate
2 Mounting plate
3 Clip to fasten the printer on the mounting plate
4 Profile
5 Base plate with adjustable feet and positioning aids for labelling
6 Locking screw to fasten the stop (7)
7 Stop as a positioning aid in the printing direction
8 Area for object placement
9 Locking screw to fasten the stop (10)
10 Stop as a positioning aid transverse to the printing direction
Device description
1
2
6
7
8
3
4
5
9
