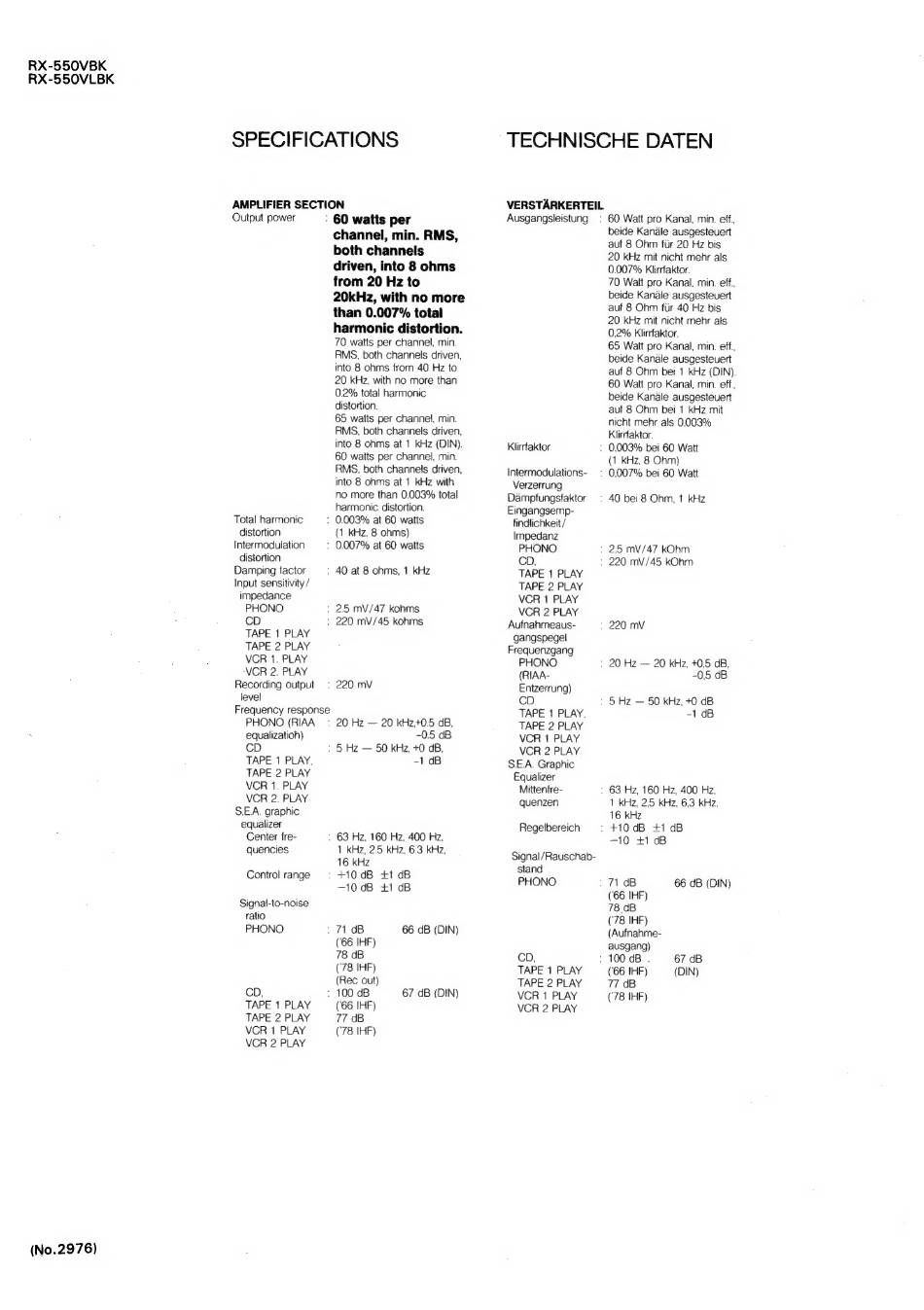

SPECIFICATIONS
AMPLIFIER SECTION
Output power
Total harmonic
distortion
intermodulation
distortion
Damping factor
Input sensitivity /
impedance
PHONO
cD
TAPE 1 PLAY
TAPE 2 PLAY
VCR 1. PLAY
VCR 2. PLAY
Recording output
level
Frequency response
PHONO (RIAA
equalization)
CD
TAPE 1 PLAY,
TAPE 2 PLAY
VCR 1. PLAY
VCR 2. PLAY
S.EA. graphic
equalizer
Center fre-
quencies
Control range
Signal-to-noise
ratio
PHONO
CD,
TAPE 1 PLAY
TAPE 2 PLAY
VCR 1 PLAY
VCR 2 PLAY
(No.2976)
: 71 dB
: 100 dB
: 60 watts per
channel, min. RMS,
both channels
driven, into 8 ohms
from 20 Hz to
20kHz, with no more
than 0.007% total
harmonic distortion.
70 watts per channel, min
RMS, both channels driven,
into 8 ohms from 40 Hz to
20 kHz, with no more than
0.2% total harmonic
distortion
65 watts per channel, min.
RMS, both channels driven,
into 8 ohms at 1 kHz (DIN).
60 watts per channel, min.
RMS, both channels driven,
into 8 ohms at 1 kHz with
no more than 0.003% total
harmonic distortion.
: 0.003% at 60 watts
(1 kHz, 8 ohms)
: 0.007% at 60 watts
: 40 at 8 ohms, 1 kHz
: 25 mV/47 kohms
: 220 mV/45 kohms
: 220 mV
» 20 Hz — 20 kHz,+0.5 dB,
-0.5 dB
» 5 Hz — 50 kHz, +0 dB,
-1 dB
: 63 Hz, 160 Hz, 400 Hz,
1 KHz, 2.5 kHz, 6.3 kHz,
16 kHz
: +10 dB +1 dB
—10 dB +1 dB
66 dB (DIN)
(66 IHF)
78 dB
(78 IHF)
(Rec out)
67 dB (DIN)
(66 IHF)
77 dB
(78 IHF)
TECHNISCHE DATEN
VERSTARKERTEIL
: 60 Watt pro Kanal, min. eff.,
Ausgangsleistung
Klirrfaktor
Intermodulations-
Verzerrung
Dampfungsfaktor
Eingangsemp-
findlichkeit /
Impedanz
PHONO
CD.
TAPE 1 PLAY
TAPE 2 PLAY
VER 1 PLAY
VCR 2 PLAY
Aufnahmeaus-
gangspege!
Frequenzgang
PHONO
(RIAA-
Entzerrung)
CD
TAPE 1 PLAY.
TAPE 2 PLAY
VCR 1 PLAY
VCR 2 PLAY
SEA. Graphic
Equalizer
Mittenfre-
quenzen
Regelbereich
Signal /Rauschab-
stand
PHONO
CD,
TAPE 1 PLAY
TAPE 2 PLAY
VCR 1 PLAY
VCR 2 PLAY
: 71 cB
: 100 dB.
beide Kandle ausgesteuert
auf 8 Ohm fur 20 Hz bis
20 kHz mit nicht mehr als
0.007% Klirrfaktor.
70 Watt pro Kanal, min. eff.,
beide Kanale ausgesteuert
auf 8 Ohm fur 40 Hz bis
20 kHz mit nicht mehr als
0.2% Klirrfaktor.
65 Watt pro Kanal, min. eff.,
beide Kandle ausgesteuert
auf 8 Ohm bei 1 kHz (DIN).
60 Watt pro Kanal, min. eff,
beide Kanale ausgesteuert
auf 8 Ohm bei 1 kHz mit
nicht mehr als 0.003%
Klirrfaktor.
: 0,003% bei 60 Watt
(1 kHz, 8 Ohm)
: 0,007% bei 60 Watt
: 40 bei 8 Ohm, 1 kHz
: 25 mV/47 kOhm
» 220 mV/45 kOhm
220 mV
» 20 Hz — 20 kHz, +0,5 dB,
-0,5 dB
» 5 Hz — 50 kHz, +0 dB
-1 dB
: 63 Hz, 160 Hz, 400 Hz.
1 kHz, 2,5 kHz, 6,3 KHz,
16 kHz
: +10 dB +1 dB
—-10 +1 dB
66 dB (DIN)
('66 IHF)
78. dB
(78 IHF)
(Aufnahme-
ausgang)
67 dB
('66 IHF)
(DIN)
77 cB
(78 IHF}
