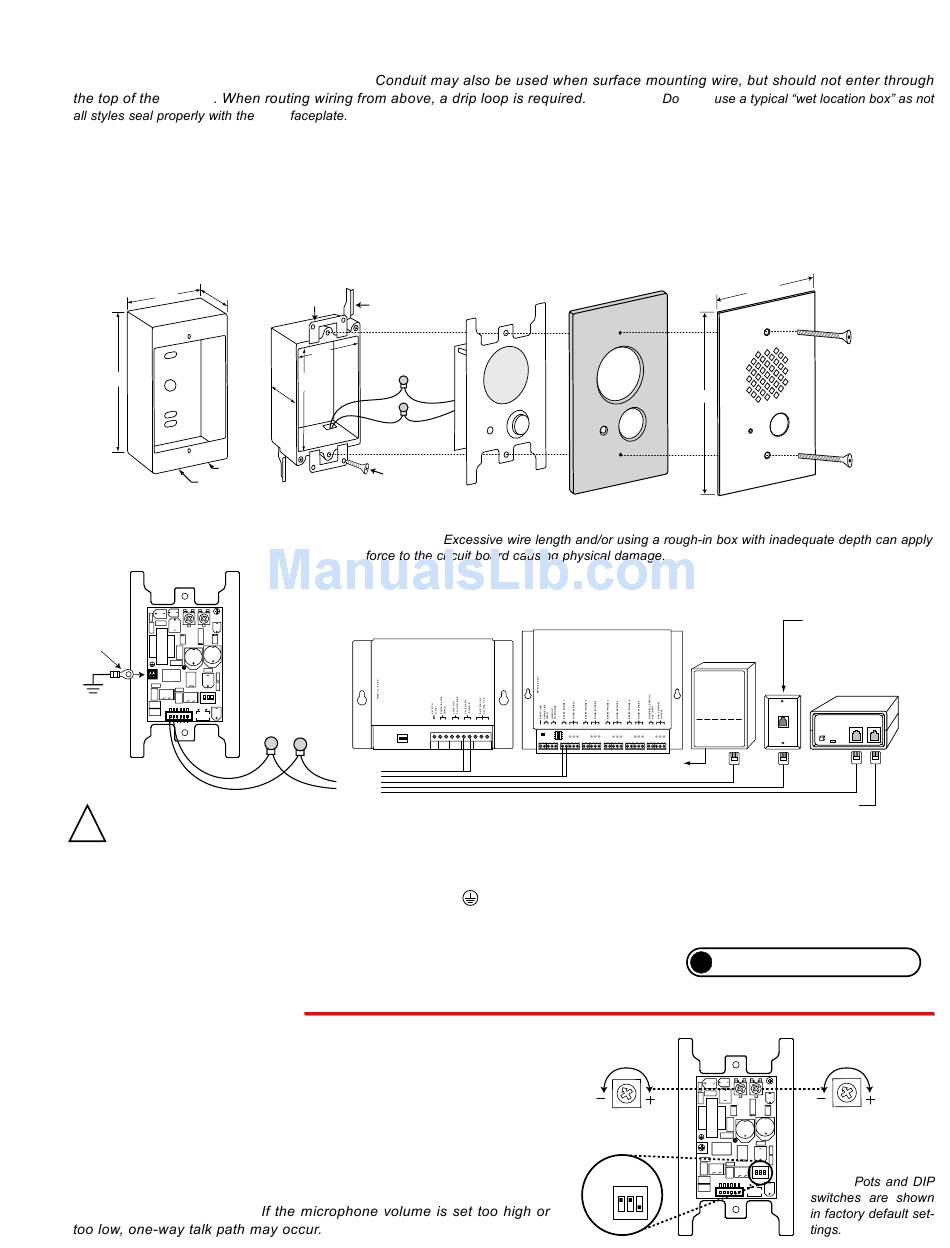

C. Surface Mounting
A Viking model VE-3x5 can be used to surface mount an E-40 to a wall or post. Drill a small wire exit hole in wall. Pull wire through
and seal hole around wire with putty or caulking. Route wire into the VE-3x5 box, securely screw it to wall or post and seal hole in
box around wire with putty or caulking. Note:
VE-3x5
D. Mounting the Faceplate
After the Rough-In box or VE-3x5 is securely mounted, caulking between the box and rough opening is completed (if required), and
wires are connected, remove paper liner from face plate gasket and place it on back side of face plate aligning with push button
hole. Push the 1-1/4" 6-32 screws through faceplate holes and small holes in gasket, the faceplate gasket should retain the screws.
Position Circuit board mounting plate over screws. Align screws with single gang box bosses and tighten face plate until gasket is
fully collapsed and the push button is protruding through the clearance hole in the face plate. Included 1/4" thick gasket will provide
an adequate seal for most siding surfaces; however for rough surfaces (ie: brick, stucco, etc.) additional caulking may be required.
1.8"
3.17"
4.92"
Conduit Knockout
Optional VE-3x5 Surface Mount
Box with Black Satin Powder Paint
Finish (not included) WARNING: Do
NOT use a wet location box.
E. Wiring the E-40
(Ring
connector
included)
** Earth
Ground
(optional)
Red
(Ring)
Green
(Tip)
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC
!
outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.
Contact Panamax at (800) 472-5555 or Electronic Specialists Inc. at (800) 225-4876.
* Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a maximum insulation of 0.082 inches. Do not strip wires prior
to terminating.
** Note: To increase surge protection, loosen the PCB mounting screw labeled
Earth Ground (grounding rod, water pipe, etc.) After fastening ring treminal to PCB mounting screw, bend terminal up to avoid interference with single gang box.
*** Note: Talk battery must be a minimum of 28V DC when using the speaker phone with a Viking Hot-Line Dialer. For more information, retrieve Fax Back Documents 317.
**** Note: When installing a line powered phone on a low voltage and/or low loop current phone system extension, a Viking
TBB-1A Talk Battery Booster may be required.
P r o g r a m m
P r o g r a m m
A. Adjusting Speaker Volume
The speaker volume pot can be adjusted to increase or decrease the
speaker volume to the level desired.
B. Adjusting the Microphone Volume
In certain noisy locations (background traffic, machinery or wind), the
microphone volume may need to be decreased. A symptom of this is one-
way talk path, in which the distant party cannot be heard over the speak-
er. A microphone volume pot is provided for increasing or decreasing the
microphone volume. Note:
E-40
Optional
Optional Wing
Mounting Ears
Brackets
(2) Gel-Filled
2.00"
Wide Butt Connectors
Min.
(included)
*2.25"
Deep
2.84"
Min.
Tall Min.
-OR-
Condensation
Drain Hole
(4) Optional Dry
Wall Screws
(not included)
"Old Work" Rough-In Box
(Allied Molded 9331 box
shown, not included)
* CAUTION:
Rear View of the
E-40 Circuit Board
Mounting Plate
Viking C-200 Single Entry
Phone Controller (not included)
VIKING
* Gel-Filled Butt
Connectors
(included) E-40
is not polarity
sensitive
ON
1
-or-
i n g
i n g
Red
Green
Circuit Board
Mounting Plate
(included)
Viking C-2000A 1-4 Entry Phone
Controller (not included)
VIKING
©
MODEL C-200
©
VIKING
ELECTRONICS
HUDSON, WI 54016
ADVANCED DOOR/GATE AND
ENTRY PHONE CONTROLLER
SINGLE ENTRY PHONE
CONTROLLER
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
2 3
EARTH C.O. LINE OUT TO ENTRY N.O. COM N.C.
GND INPUT PHONES PHONE AUX CONTACTS
(as shown above) and fasten a wire with ring terminal (included) from the mounting screw to
WARNING: NOT
3.125"
4.875"
1/4" Thick Foam Facplate
Faceplate Gasket (included)
(included)
*** Optional Viking
K-1900-5 Dialer
MODEL C-2000A
(not included)
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING
©
Programmable
Tone Dialer
MODEL: K-1900-5
Quick Programming Guide
1. Call the phone connected to the dialer.
∗
2. Answer phone. Enter & security code.
(Factory set to 845464) Write your
security code below:
3. Enter your spped dial number & #00.
Note: For additional programming see
11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
K-1900-5 Technical Practice.
