Summary of Contents for Aim GEMS Omex 100
- Page 1 AiM User Guide GEMS Omex ECUs Release 1.01...

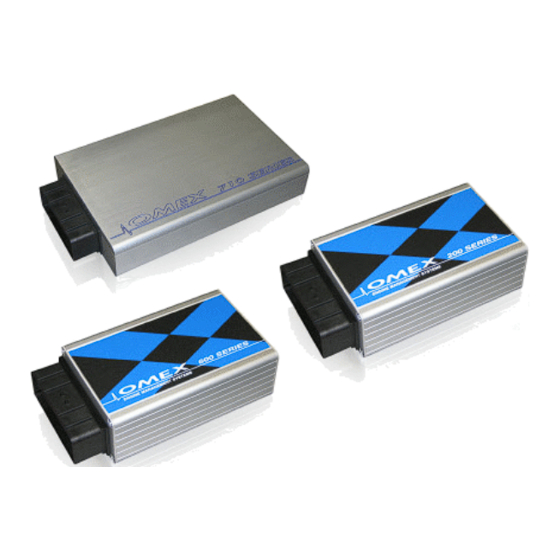

- Page 2 Supported models This document explains how to connect AiM devices to the Engine Control Unit (ECU) datastream. Supported models are: • GEMS Omex 100 • GEMS Omex 150 • GEMS Omex 200 • GEMS Omex 500 • GEMS Omex 550 Wiring connection The ECU connector is made of four sections: “A”, ”B”, ”C”...
- Page 3 Race Studio configuration Before connecting AiM devices to the ECU, set all functions using AiM software Race Studio. The parameters to select in the AiM device configuration are: • ECU manufacturer: GEMS • ECU Model: Omex (Only RS2) “GEMS – Omex” protocol Channels received by AiM devices configured with “Gems –...
