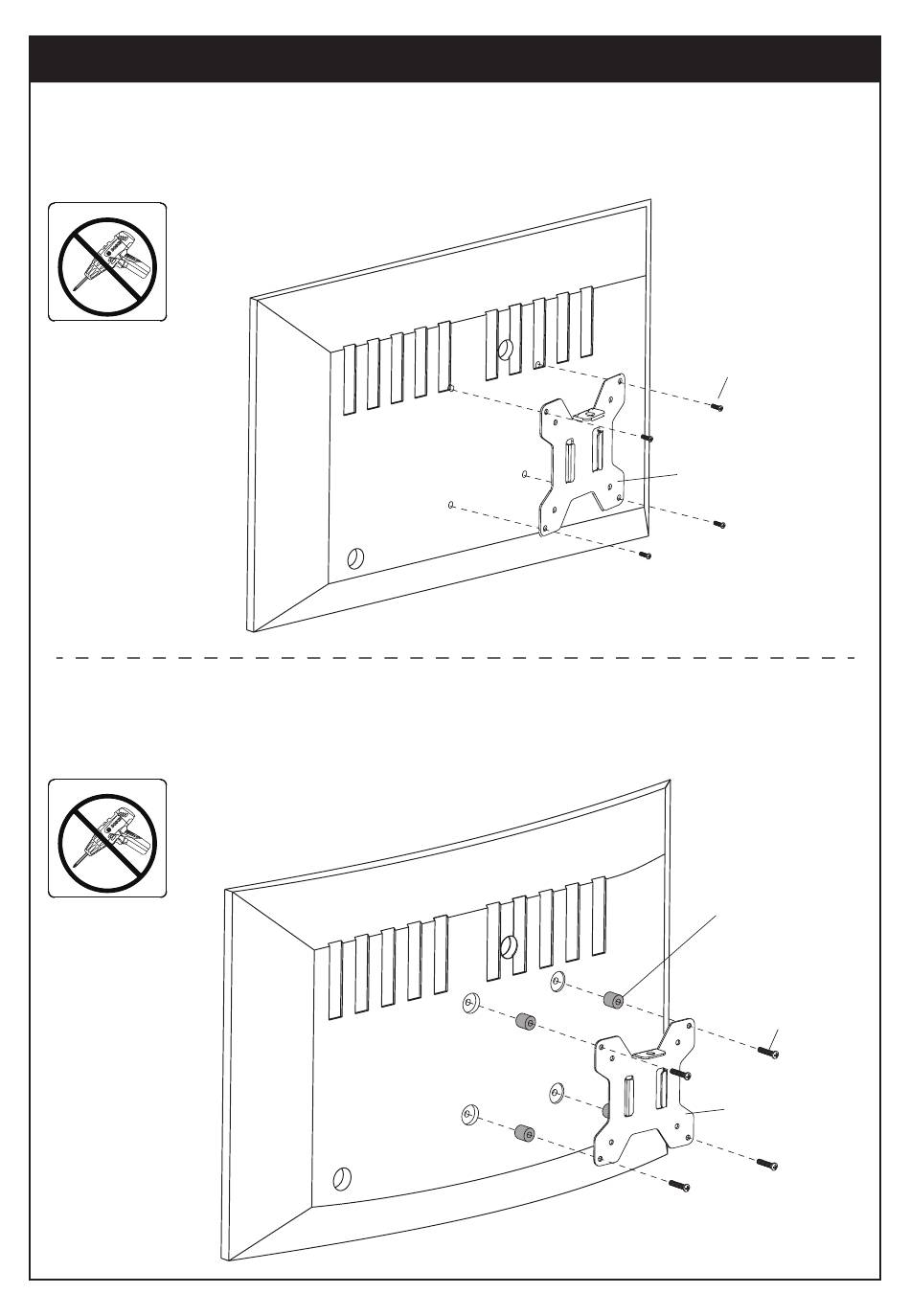

STEP 3: Attach the VESA Plate to the Monitor
OPTION A: Flat Back Monitor
Attach the VESA plate (c) to the monitor with M4×12 bolts (E).
NOTE: Hand tighten screws to avoid over tightening.
No!
OPTION B: Curved or Recessed Back Monitor
Attach the VESA plate (c) to the monitor with M4×30 bolts (D) and M4 spacers (F).
NOTE: Hand tighten screws to avoid over tightening.
No!
06
E
c
F
D
c
