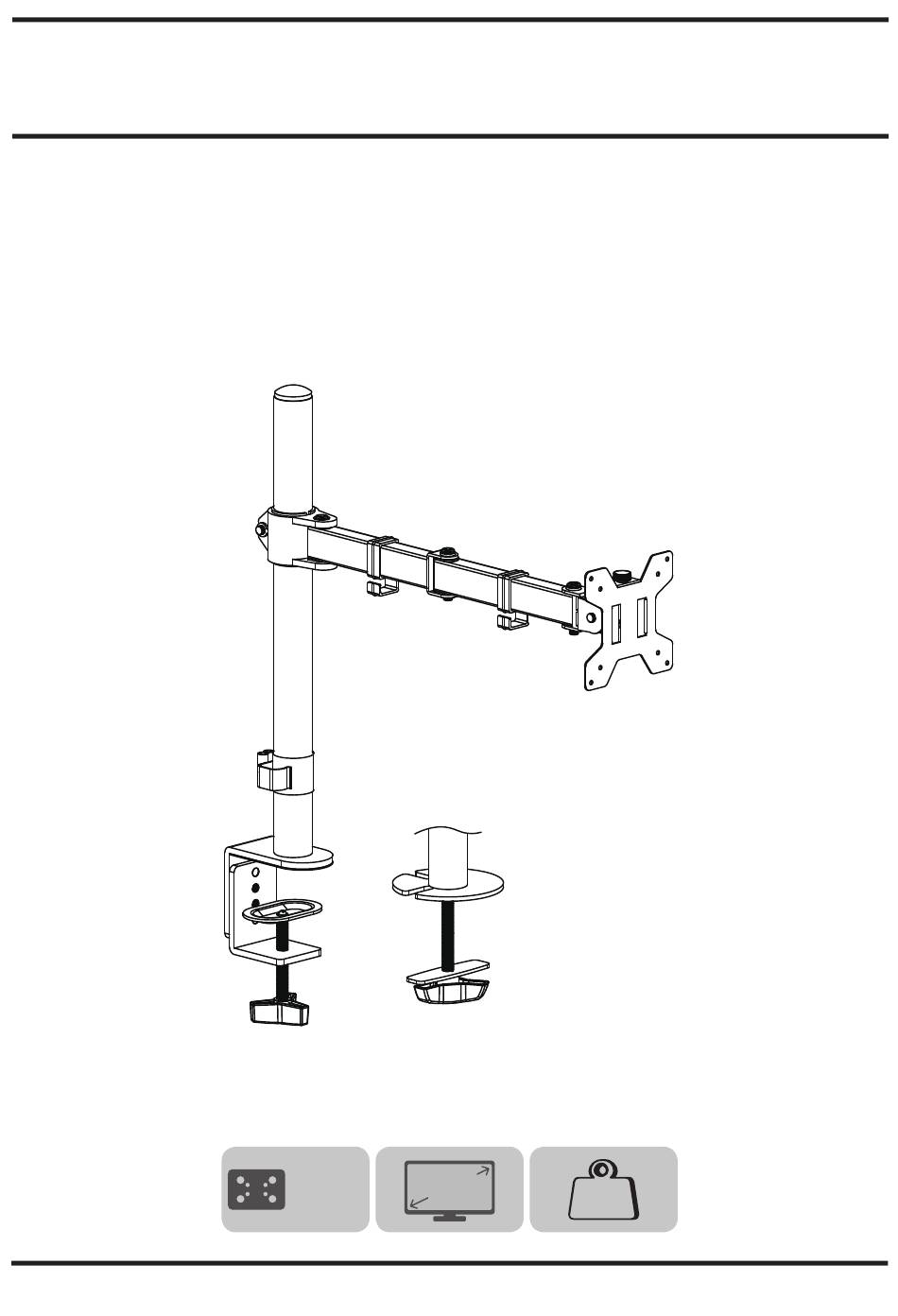

Single Monitor Desk Mount
Instruction Manual
Für die Installationsanweisungen auf Deutsch, siehe Seite 11~12
Pour l'instruction en Français, veuillez vous reporter à la page 13~14
Per le Istruzioni in Italiano, vedi pagina 15~16
Para las instrucciones de la instalación en Español, favor vea la página 17~18
If you have any questions, please contact our customer service.
75x75
13~32"
100x100
9 kg
19.8 lbs
MS03-EU1.0
Advertisement
Related Manuals for Icy Box MS03-EU1.0
Summary of Contents for Icy Box MS03-EU1.0
- Page 1 Pour l'instruction en Français, veuillez vous reporter à la page 13~14 Per le Istruzioni in Italiano, vedi pagina 15~16 Para las instrucciones de la instalación en Español, favor vea la página 17~18 75x75 13~32" 9 kg 100x100 19.8 lbs MS03-EU1.0 If you have any questions, please contact our customer service.
- Page 2 Before getting started, let's make sure this mount is perfect for you! Is your monitor VESA 75×75mm/3x3" or 100×100mm/4x4"? MAX:100mm Yes — Perfect! MAX: 100mm No — This mount is NOT compatible. Does your monitor (including accessories) weigh less than 9 KG (19.8 LBS)? Yes —...
- Page 3 WARNING! Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly speci ed in this manual. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use. This product contains small items that could be a choking hazard if swallowed.
- Page 4 STEP 1: Install the Pole to the Desktop Option A: Desk Clamp Installation 1. Install the "C"-Clamp Brace (e) to the Pole (a) using 3pcs M5×16 Bolts (C), and tighten using the Allen Key (G 3mm). 2. Three positionings of the clamp (d) can accommodate di erent thicknesses of desktop, using 2 pcs M8×12 Bolts (B), tightened by Allen key (G 5mm).
- Page 5 STEP 1: (Continued) Option B: Grommet Base Installation 1. If the existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing the desk mount. 2. Loosen the screws, separate Bolt (d1) from the "C"-Clamp (d). DESK ø...
- Page 6 STEP 2: Install Arm to the Pole 1. Install Wire Clip (I) and Swivel Arm (b) to the Pole (a). 2. Fasten the bolt with supplied Allen Key (G 6mm). 3. Attach the Wire Clip (J) to the Swivel Arm (b). G 6mm DESK DESK...
- Page 7 STEP 3: Attach the VESA Plate to the Monitor OPTION A: Flat Back Monitor Attach the VESA plate (c) to the monitor with M4×12 bolts (E). NOTE: Hand tighten screws to avoid over tightening. OPTION B: Curved or Recessed Back Monitor Attach the VESA plate (c) to the monitor with M4×30 bolts (D) and M4 spacers (F).
- Page 8 STEP 4: Slide the Monitor onto the Head of Swivel Arm Slide the monitor onto the head of Swivel Arm (b) as shown in diagram. Install the security Bolt (A). Make sure the security Bolt is installed before you rotate the monitor.
- Page 9 STEP 5: (Continued) STEP 5: Make the Necessary Adjustments Tighten the bolt with the supplied Allen Key (G 5mm) to x the tilt angle. Fix the tilt angle +70° G 5mm Note: If the above is useless, please feel free to contact -90°...
- Page 10 STEP 6: Manage the Wires Manage the wires and store the Allen keys (G 6mm, G 5mm, G 3mm) in Wire Clip (l) for future use. G 6mm G 5mm G 3mm...
-
Page 11: Product Dimensions
Product Dimensions 37mm 164mm /1.46” 164mm /6.46” 68mm /6.46” /2.68” ø35mm /ø1.38” 80mm /3.15”... - Page 12 Vor der Installation bestätigen Sie bitte zuerst, ob diese Halterung für Sie geeignet ist! Ist Ihr Monitor VESA 75x75mm/3x3" oder 100x100mm/4x4"? MAX:100mm Ja - Perfekt! MAX: Nein - Diese Halterung ist NICHT geeignet! 100mm Wiegt Ihr Monitor (einschließlich Zubehör) weniger als 9 KG (19,8 LBS)? Ja - Ideal! 9 KG NEIN - Dieser Ständer ist NICHT geeignet.
- Page 13 SCHRITT 1: (Fortsetzung) Siehe Seite 04 OPTION B: Montage der Tüllenbasis 1. Wenn das vorhandene Loch mit einem Kunststoffschutz ausgestattet ist, entfernen Sie diesen, um eine ebene Oberfläche zu gewährleisten, bevor Sie die Schreibtischhalterung installieren. 2. Lösen Sie die Schrauben, trennen Sie den Bolzen (d1) von der "C"-Klemme (d). 3.
-
Page 14: Avant L'installation
Avant l'installation, veuillez d'abord con rmer si ce support vous convient! Votre moniteur est-il VESA 75×75mm/3x3" ou 100×100mm/4x4" ? MAX:100mm Oui - Parfait! MAX: Non - Ce support n'est PAS compatible. 100mm Votre moniteur (y compris les accessoires) pèse-t-il moins de 9 kg (19.8 lbs) ? Oui - c'est correct ! 9 KG Non - ce support ne convient pas ! - Page 15 ÉTAPE 1: (à suivre) Voir à la page 04 Option B : Installation de la base à œillets 1. Si le trou de l'œillet existant est livré avec un protecteur en plastique, retirez-le pour assurer une surface plane avant d'installer le support de bureau. 2.
- Page 16 Prima dell'installazione, per prima cosa conferma se questa sta a è adatta a te! Il tuo monitor è VESA 75x75mm/3x3" o 100x100mm/4x4"? MAX:100mm Sì - Ideale! MAX: No - Questo supporto NON è compatibile. 100mm Il suo monitor (inclusi accessori) pesa meno di 9 KG (19,8 LBS)? Sì...
- Page 17 FASE 1: (continua) Vedi pagina 04 Opzione B: installazione della base del gommino 1. Se il foro passacavo esistente è dotato di una protezione in plastica, rimuoverla per garantire una superficie grassa prima di installare il supporto da tavolo. 2. Allentare le viti, separare il bullone (d1) dal morsetto "C" (d). 3.
- Page 18 ¡Antes de comenzar a instalar este soporte monitor, favor con rme si es adecuado para su monitor! ¿Su monitor es VESA a 75x75mm/3x3" o 100x100mm/4x4"? MAX:100mm Si - Es el adecuado! MAX: No - Este soporte no es el adecuado! 100mm ¿Su monitor (incluidos los accesorios) pesa menos de 9 kg(19.8LBS)? Si - Es el adecuado!
- Page 19 PASO 1: (Continuación) Ver página 04 Opción B: Instalación de la Base del Ojal 1. Si el orificio del ojal existente viene con un protector de plástico, retírelo para asegurar una superficie plana antes de instalar el soporte de escritorio. 2.
- Page 20 CAUTION AND MAINTENANCE: ● Don't allow children to climb, stand, hang, or play on any part of monitor or stand. ● This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. ●...
